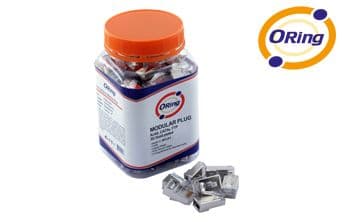

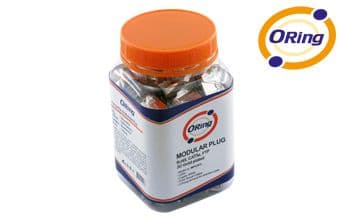

Name: ORing Cat5e FTP Moduler Plug 3u
Brand: Oring Networking
SKU: MPC5F3

Terminates a shielded CAT5e link with an FTP plug.

A fully shielded modular plug for FTP CAT5e cable. Its metal shielded housing continues the cable shield through the plug end and terminates 1-Gigabit Ethernet links in electrically noisy environments.

CAT5eCable Type

FTPShielding

1 GbpsTransmission Speed

3uGold Plating

MalePlug Type

Key features

Shielding structureThe full metal shielded housing handles EMI right at the cable end.

Contact structureCarries 3u micro-inch gold-plated contacts and a special 3-claw connection pin.

Mechanical durabilityWithstands a minimum of 2000 mating cycles; cable retention strength reaches 89 Newton.

Electrical valuesContact resistance stays at 20 MΩ and insulation resistance at 500 MΩ under 1000 V DC.

Operating temperatureOperates between -40 °C and +125 °C.

Standards complianceComplies with TIA/EIA 568 C.2, ISO/IEC 11801 and EN 50173-1; the housing meets UL 94V-0.

General and Mechanical Specifications

Product Code / Type

MPC5F3 / FTP Cat5e Shielded Connector

Shielding Structure

Full Shielded (Metal Housing for EMI Protection)

Contact Structure

3u Micro Inch Gold Plating / Specialized 3-Prong Pin

Mechanical Durability

Min. 2000 Mating Cycles

Retention Strength

89 Newton (Cable-to-Plug Tensile Strength)

Electrical Performance and Standards

Frequency / Speed

100 MHz / 1-Gigabit Ethernet

Contact Resistance

< 20 MΩ

Insulation Resistance

500 MΩ (1000V DC / min)

Dielectric Strength

1000V DC / min (<0.5A)

Environmental Conditions and Warranty

Operating Temperature

-40°C to +125°C

Housing Standard

Flame Retardant UL 94V-0

Warranty

ORing Networking Products carry a Lifetime Warranty
