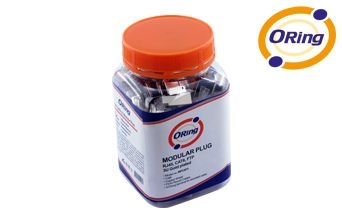

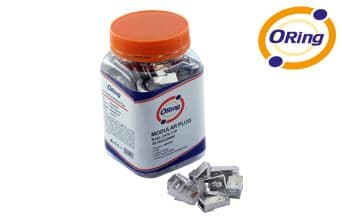

Name: ORing Cat6 FTP Moduler Plug 50u
Brand: Oring Networking
SKU: MPC6F50

Terminates Cat6 FTP cable at the RJ45 end without breaking shield continuity.

A male RJ45 modular plug that builds the end connection of Cat6 FTP cable in shielded structured cabling installations. Its metal shielded housing continues the cable shield across the plug.

CAT6Cable Type

FTPShielding

250 MHzFrequency

1 GbpsTransmission Speed

50 microinchContact Gold Plating

Key features

BandwidthOperates at 250 MHz bandwidth and carries 10/100/1000 Mbps Ethernet links.

ShieldingThe metal shielded housing keeps electromagnetic interference away from the cable end.

Contact structure50 microinch gold-plated contacts and the special 3-claw termination pin grip the conductor firmly.

HousingThe flame-retardant shielded housing meets the UL 94V-0 rating.

Standards complianceMeets TIA/EIA 568 C.2, ISO/IEC 11801 and EN 50173-1.

General and Mechanical Specifications

Product Type

FTP Cat6 RJ45 Shielded Connector (Plug)

Shielding Structure

Shielded (Metal Housing for EMI Protection)

Contact Structure

50u Micro Inch Gold Plating / Specialized 3-Prong Pin

Housing Standard

High-Durability Flame Retardant Shielded Body (UL 94V-0)

Performance and Standards

Operating Frequency

250 MHz Bandwidth

Application Support

2-Gigabit Ethernet (10/100/1000/2000 Mbps)

Standard Compliance

TIA/EIA 568 C.2, ISO/IEC 11801, EN 50173-1

Warranty

ORing Networking Structural Products carry a Lifetime Warranty
