Stock Code: MPC6U50
| General and Mechanical Specifications | |
|---|---|

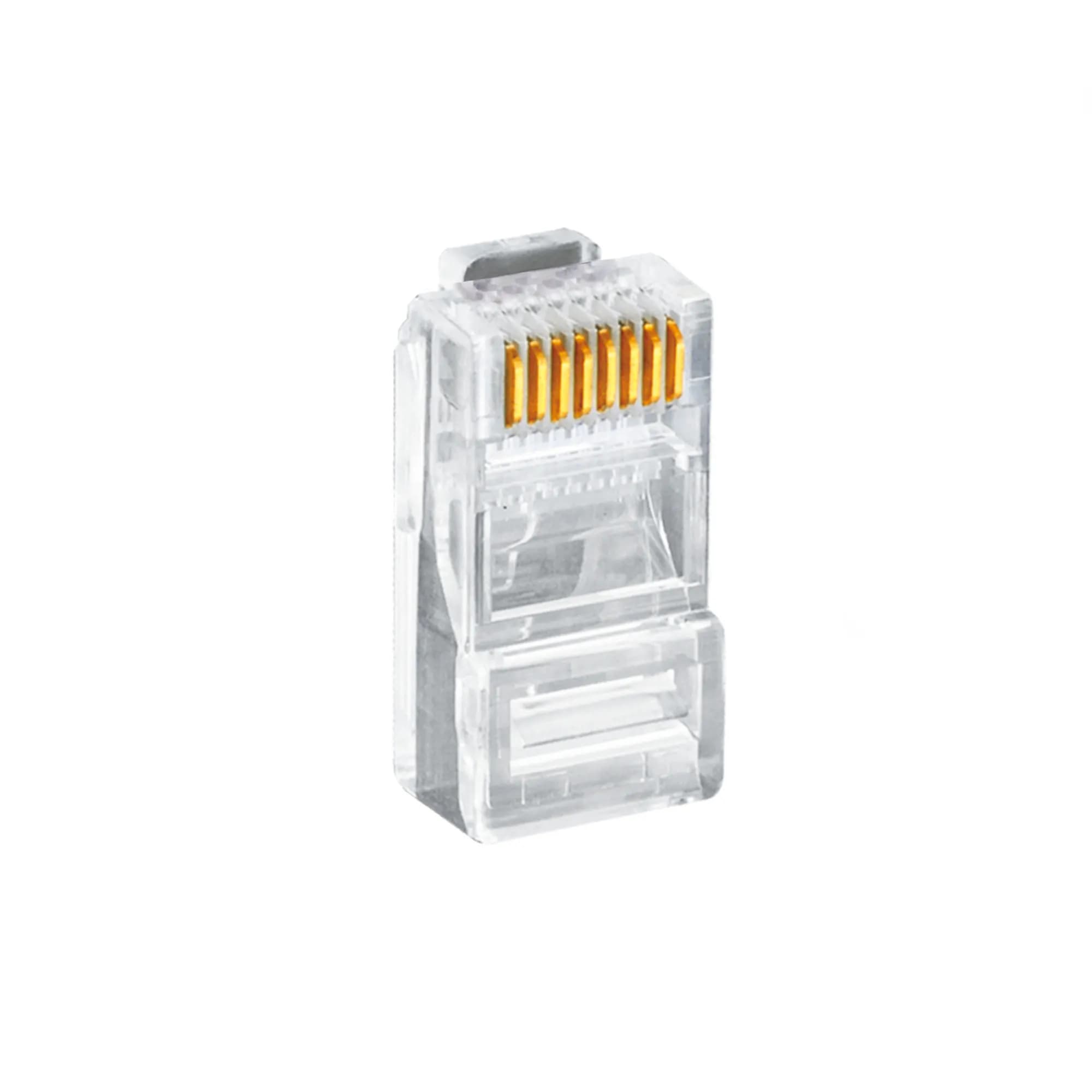

| Product Code / Type | MPC6U50 / UTP Cat6 RJ45 Connector |
| Contact Structure | 50u Micro Inch Gold Plated / Specialized 3-Prong Pin |
| Housing Material | High-Durability Flame Retardant Plastic (UL 94V-0) |
| Tensile Strength | 89 Newton (Cable-to-Plug Retention Force) |
| Mechanical Endurance | Minimum 2000 Mating Cycles |
| Electrical Performance and Standards | |
| Frequency / Speed | 250 MHz / 2-Gigabit Ethernet |
| Insulation Resistance | 500 MΩ (1000V DC / Minute) |
| Contact Resistance | < 20 MΩ |
| Dielectric Strength | 1000V DC / Minute (<0.5A) |
| Compliance | TIA/EIA 568 C.2, ISO/IEC 11801, EN 50173-1 |
| Environmental Conditions and Warranty | |
| Operating Temperature | -40°C to +125°C |
| Warranty | ORing Networking Products carry a Lifetime Warranty |
