Adds 2 serial and 1 parallel port to a desktop computer.

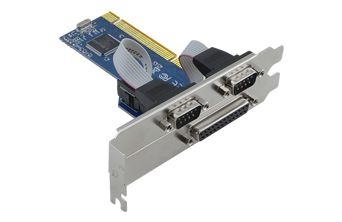

This PCI 2.1 compliant card opens 2 RS232 serial ports and 1 parallel printer port through the MCS9865CV chipset. It links serial peripherals and parallel printers to current computers.

PCI 2.1Bus compliance

3Port count

2 × RS232Serial ports

1Parallel port

16 byteFIFO buffer

1 Mbytes/secData transfer rate

Key features

Plug and play installationThe card seats in a PCI slot and supports PCI IRQ sharing.

MCS9865CV chipsetThe chipset drives the serial and parallel ports from a single device.

16C550 compatible UARTThe serial ports follow standard 16C550 UART behavior and use the built-in 16 byte send and receive FIFO.

IEEE 1284 printer portThe parallel port covers SPP, PS2, EPP and ECP modes.

1 Mbytes/sec transferBoth the serial and the parallel line carry data at 1 Mbytes/sec.

Broad operating system supportThe card runs under Windows98/Me/2000/NT4.0/XP/Vista/Win7, Linux and Dos.

General

Bus Compliance

PCI 2.1

Chipset

MCS9865CV

Installation

Plug and play

IRQ Sharing

Supports PCI IRQ sharing

Ports

Serial Ports

2 × RS232

Parallel Port

UART

Standard 16C550 compatible

FIFO

Built-in 16 byte (send and receive)

Printer Port Standard

IEEE 1284; SPP, PS2, EPP, ECP compatible

Performance

Serial Data Transfer Rate

1 Mbytes/sec

Parallel Data Transfer Rate

1 Mbytes/sec

System Requirements

Supported Operating Systems

Windows98/Me/2000/NT4.0/XP/Vista/Win7, Linux, Dos
