Turns the home's electrical wiring into a network and extends wireless coverage.

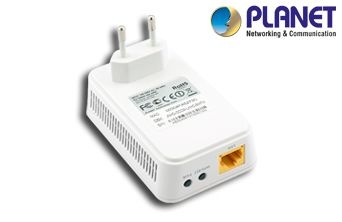

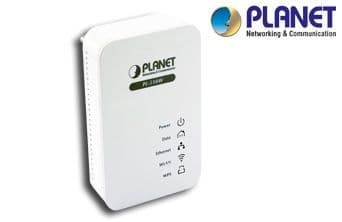

A powerline adapter built on HomePlug AV technology that carries the internet connection over the building's electrical wiring and works as an IEEE 802.11b/g/n wireless access point at the same spot. It links rooms in homes and small offices where pulling cable is difficult.

200 MbpsPowerline data rate

300 Mbps802.11n wireless rate

300 mPowerline range

1 x RJ-4510/100Base-T Ethernet port

0 ~ 40 °COperating Temperature

Key features

200Mbps

Data over the power line

HomePlug AV carries traffic over the building's existing electrical wiring.

300m

Long line reach

Reaches distant rooms along the in-wall electrical lines.

300Mbps

2T2R wireless link

The IEEE 802.11n radio works over two transmit and two receive antennas.

128bit

AES link encryption

Protects power line traffic with key-managed AES encryption.

2.5dBi

Internal antenna gain

Two internal antennas work in horizontal and vertical orientation.

EVERYDAY USE

Plug-and-play setupThe adapter pair goes into wall outlets and needs no further configuration.

One-button pairingThe Pair button secures the network and the WPS button connects wireless clients in seconds.

QoS prioritizationSeparates video streaming, online gaming and IPTV traffic across five priority levels.

ApplicationsHome network·Small office·HD video streaming·IPTV·Wireless coverage extension

Hardware Specification
Network Interface	One RJ-45 port (10/100Base-T Ethernet) One 200Mbps power line port supporting co-existence with HomePlug 1.0 (14/85Mbps)
Antenna	Gain: 2 x Internal 2.5dBi Antenna Orientation: Horizontal and Vertical
Cabling	Cat. 5 UTP cable
LED	Power: On / Off Ethernet: Solid / Blinking / Off Data: Solid / Blinking / Off WLAN: Solid / Blinking / Off WPS: Solid / Blinking / Off
Button	One WPS / Reset button One Pair button
Wireless Interface Specification
Standards	IEEE 802.11b/g/n
Working Mode	AP mode
Frequency Band	2.4~2.4835GHz
Data Transmission Rates	802.11b: 11/5.5/2/1Mbps (Dynamic) 802.11g: 54/48/36/24/18/12/9/6Mbps (Dynamic) 802.11n (40MHz): 270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps (Dynamic) 802.11n (20MHz): 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps (Dynamic)
Transmission Distance	Indoor up to 100m
Channels	America / FCC: 2.412~2.462GHz (11 Channels) Europe / ETSI: 2.412~2.472GHz (13 Channels) Japan / TELEC: 2.412~2.484GHz (14 Channels)
Channel Width	20 / 40MHz
Max. RF Power	802.11b: 17±1.5dBm 802.11g: 14.5±1.5dBm 802.11n (20MHz): 12.5±1.5dBm 802.11n (40MHz): 12.5±1.5dBm
Receive Sensitivity	802.11b: -92dBm @ 1Mbps; -85dBm @ 11Mbps, PER < 8% 802.11g: -88dBm @ 6Mbps; -73dBm @ 54Mbps, PER <10% 802.11n: -90dBm @ MCS8; -70dBm @ MCS15, PER <10%
Encryption Security	WEP (64/128-bit) encryption security WPA / WPA2 (TKIP/AES) WPA-PSK / WPA2-PSK (TKIP/AES)
Standards Conformance
Computer Interface	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Standards	IEEE 1901 / HomePlug AV
Security	128-bit AES link encryption with key management
Data PHY Rate	200 Mbps over Powerline and 10/100 Mbps over Ethernet
Modulation Schemes	OFDM symbol modulation on line synchronization 1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO carrier modulation
Frequency Band	2-30MHz
Additional Protocols	Mix of TDMA and CSMA/CA channel access scheme; CO device generates a periodic beacon carrier for channel access scheme QoS prioritizes both wired and wireless Internet traffic to bandwidth-sensitive applications like online gaming, IPTV or stream multimedia
Operation Range	Estimated range of 300 meters in wall powerlines
Environment Specifications
Operating	Temperature: 0~40 °C Relative Humidity: 10~90% (non-condensing)
Storage	Temperature: -40~70 °C Relative Humidity: 0~90% (non-condensing)
Power Supply	100~240V AC, 50~60Hz internal
Housing Dimension (W x D x H)	94 x 29.85 x 32 mm
Weight	94 g
Emission	FCC, CE

Hardware Specification

Network Interface

One RJ-45 port (10/100Base-T Ethernet)
One 200Mbps power line port supporting co-existence with HomePlug 1.0 (14/85Mbps)

Antenna

Gain: 2 x Internal 2.5dBi Antenna
Orientation: Horizontal and Vertical

Cabling

Cat. 5 UTP cable

LED

Power: On / Off
Ethernet: Solid / Blinking / Off
Data: Solid / Blinking / Off
WLAN: Solid / Blinking / Off
WPS: Solid / Blinking / Off

Button

One WPS / Reset button
One Pair button

Wireless Interface Specification

Standards

IEEE 802.11b/g/n

Working Mode

AP mode

Frequency Band

2.4~2.4835GHz

Data Transmission Rates

802.11b: 11/5.5/2/1Mbps (Dynamic)
802.11g: 54/48/36/24/18/12/9/6Mbps (Dynamic)
802.11n (40MHz): 270/243/216/162/108/81/54/27Mbps
135/121.5/108/81/54/40.5/27/13.5Mbps (Dynamic)
802.11n (20MHz): 130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps (Dynamic)

Transmission Distance

Indoor up to 100m

Channels

America / FCC: 2.412~2.462GHz (11 Channels)
Europe / ETSI: 2.412~2.472GHz (13 Channels)
Japan / TELEC: 2.412~2.484GHz (14 Channels)

Channel Width

20 / 40MHz

Max. RF Power

802.11b: 17±1.5dBm
802.11g: 14.5±1.5dBm
802.11n (20MHz): 12.5±1.5dBm
802.11n (40MHz): 12.5±1.5dBm

Receive Sensitivity

802.11b: -92dBm @ 1Mbps; -85dBm @ 11Mbps, PER < 8%
802.11g: -88dBm @ 6Mbps; -73dBm @ 54Mbps, PER <10%
802.11n: -90dBm @ MCS8; -70dBm @ MCS15, PER <10%

Encryption Security

WEP (64/128-bit) encryption security
WPA / WPA2 (TKIP/AES)
WPA-PSK / WPA2-PSK (TKIP/AES)

Standards Conformance

Computer Interface

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX

Standards

IEEE 1901 / HomePlug AV

Security

128-bit AES link encryption with key management

Data PHY Rate

200 Mbps over Powerline and 10/100 Mbps over Ethernet

Modulation Schemes

OFDM symbol modulation on line synchronization
1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO carrier modulation

Frequency Band

2-30MHz

Additional Protocols

Mix of TDMA and CSMA/CA channel access scheme;
CO device generates a periodic beacon carrier for channel access scheme
QoS prioritizes both wired and wireless Internet traffic to bandwidth-sensitive applications like online gaming, IPTV or stream multimedia

Operation Range

Estimated range of 300 meters in wall powerlines

Environment Specifications

Operating

Temperature: 0~40 °C
Relative Humidity: 10~90% (non-condensing)

Storage

Temperature: -40~70 °C
Relative Humidity: 0~90% (non-condensing)

Power Supply

100~240V AC, 50~60Hz internal

Housing Dimension (W x D x H)

94 x 29.85 x 32 mm

Weight

94 g

Emission

FCC, CE
