Walk-through Metal Detector Technical Specification
General
Overall Exterior Size	2210 mm × 928 mm × 572 mm (87.0" × 36.5" × 22.5")
Passageway Interior Size	1950 mm × 714 mm × 572 mm (76.8" × 28.1" × 22.5")
Packing Size	2409 mm × 868 mm × 304 mm (94.8" × 34.2" × 12.0")
Net Weight	45 kg (99.2 lb)
Gross Weight	68 kg (149.9 lb) (with camera)
Operating Voltage	12V, 100-240V AC; power adapter included in the package
Max Power Consumption	24W
Standby Power Consumption	11W
Operating Temperature	–20°C to +65°C (–4°F to +149°F)
Operating Humidity	0%–95%
Storage Temperature	–20°C to +70°C (–4°F to +158°F)
Storage Humidity	0%–95% RH
Working Frequency	1–100 frequencies
Ports
Bottom Panel Port	Aviation power connector, 1 on each side
Bottom Panel Network Port	RJ-45, 1 on each side
Certification
Certifications	GB15210-2018; IEC 60068-2-1; IEC 60068-2-2; CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B
Camera Technical Specification
Thermal
Detector Type	Vanadium Oxide Uncooled FPA
Max. Resolution	256 × 192
Pixel Pitch	12 μm
Spectral Range	8 μm–14 μm
Thermal Sensitivity (NETD)	< 50 mK (@f/1.0, 25Hz, 300K)
Focal Length	3.5 mm
Field of View	H: 50.6°, V: 37.8°
Close Focus Distance	0.5 m (1.64 ft)
Effective Distance – Human (1.8 m × 0.5 m)	D: 146 m (479 ft); R: 38 m (125 ft); I: 19 m (62 ft)
Effective Distance – Vehicle (4.0 m × 1.4 m)	D: 389 m (1276 ft); R: 97 m (318 ft); I: 49 m (161 ft)
Aperture	F1.0
Digital Detail Enhancement (DDE)	Yes
Digital Zoom	16 ×
AGC	Auto; manual
Noise Reduction	2D NR; 3D NR
Image Flip	90°; 180°; 270°
Color Palettes	18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)
Visible
Image Sensor	1/2.7'' CMOS
Max. Resolution	2336 × 1752
Pixel	4MP
Electronic Shutter Speed	1/30000 s–1 s
Min. Illumination	Color: 0.05 Lux; Black & white: 0.005 Lux; 0 Lux (IR on)
IR Illumination Distance	≥ 30 m (98.43 ft)
IR Illuminator On/Off Control	Auto; manual
Focal Length	4 mm
Aperture	F1.6
Field of View	H: 71.2°; V: 52°; D: 92.6°
Focus Control	Fixed
Close Focus Distance	1.0 m (3.28 ft)
Day/Night	Auto (ICR); Color and B/W
BLC	Yes
WDR	DWDR
HLC	Yes
White Balance	Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural
AGC	Auto; manual
Noise Reduction	2D NR; 3D NR
S/N Ratio	≥ 55 dB
Region of Interest (RoI)	Yes
Image Flip	90°; 180°; 270°
Exposure Compensation	Yes
Intelligence
General Intelligence	Tripwire; intrusion
Advanced Intelligence	Fire detection & alarm; cold & hot spot trace; human & vehicle classification; smoking detection; call detection
Video and Audio
Video Compression	H.265/H.264M/H.264H/H.264B/MJPEG
Resolution	Thermal – Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/VGA (640 × 480)/256 × 192, 1280 × 960 by default; Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by default. Visual – Main Stream: 2336 × 1752/1080p (1920 × 1080)/720p (1280 × 720)/D1 (704 × 576), 2336 × 1752 by default; Sub Stream: 720p (1280 × 720)/D1 (704 × 576)/CIF (352 × 288), 352 × 288 by default
Frame Rate	Thermal – 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default. 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default. Visual – 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default. 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression	G.711a; G.711mu; PCM
Network
Protocol	HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Edge Storage	Micro SD card (256 GB)
Interoperability	ONVIF; CGI
Browser	IE: IE8 and later, and explorer with IE core; Google Chrome: 42 and earlier; Firefox: 42 and earlier
User/Host	10
Security	Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
Certification
Certifications	CE: EN55032:2015; EN61000-3-2:2014; FCC: CFR 47 FCC Part 15 Subpart B; ANSI C63.4-2014
Port
Network	1 × 10M/100M Ethernet port (RJ-45)
RS-485	1 pair
Power
Power Supply	12V DC±20%/PoE
Power Consumption	Basic: < 6.5W (LED off); Max: < 13W (LED on, heater on)
Environment
Operating Temperature	–30°C to +60°C (–22°F to +140°F)
Storage Temperature	–30°C to +70°C (–22°F to +158°F)
Operating Humidity	≤ 95%
Protection	IP67; anti-surge 6kV; anti-electrostatic 6kV (touched by objects); anti-electrostatic 8kV (air)
Structure
Product Dimensions	122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")
Packaging Dimensions	155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")
Net Weight	≤ 0.85 kg (1.87 lb)
Gross Weight	≤ 1 kg (2.20 lb)

Brings metal screening and thermal temperature checks into a single gate

22 detectors separate where metal sits on the body across a 33-zone scanning area. The attached thermal camera reads body temperature at 256 × 192 and 50 mK sensitivity. It counts normal and abnormal temperature passes separately and triggers a sound and light warning at the alarm.

33Zones

22Detectors

256 × 192Thermal Resolution

50 mKThermal Sensitivity

4 MPVisible Sensor

24 WMax. Power Consumption

Key features

33zones

Located metal detection

Shows the alarm on a human-shaped indicator with its zone.

50mK

Sensitive thermal reading

An uncooled vanadium oxide detector separates small temperature differences.

100frequencies

Interference control

Changes the working frequency where gates stand side by side.

30m

IR illumination

Keeps the visible camera working at unlit entrances.

256GB

Edge recording

A micro SD card stores camera footage on the device.

IP67rating

Rugged camera body

Protects against dust and water and withstands 6 kV surges.

IN DAILY USE

Dual image fusionCombines thermal and visible images in one frame so operators can tell people apart.

Counter displayShows pass, alarm and temperature warning counts separately.

Network configurationChanges settings remotely and connects to third-party software over ONVIF.

Body temperature measurement serves preliminary screening and does not replace medical diagnosis.

Walk-through Metal Detector Technical Specification

General

Overall Exterior Size

2210 mm × 928 mm × 572 mm (87.0" × 36.5" × 22.5")

Passageway Interior Size

1950 mm × 714 mm × 572 mm (76.8" × 28.1" × 22.5")

Packing Size

2409 mm × 868 mm × 304 mm (94.8" × 34.2" × 12.0")

Net Weight

45 kg (99.2 lb)

Gross Weight

68 kg (149.9 lb) (with camera)

Operating Voltage

12V, 100-240V AC; power adapter included in the package

Max Power Consumption

24W

Standby Power Consumption

11W

Operating Temperature

–20°C to +65°C (–4°F to +149°F)

Operating Humidity

0%–95%

Storage Temperature

–20°C to +70°C (–4°F to +158°F)

Storage Humidity

0%–95% RH

Working Frequency

1–100 frequencies

Ports

Bottom Panel Port

Aviation power connector, 1 on each side

Bottom Panel Network Port

RJ-45, 1 on each side

Certification

Certifications

GB15210-2018; IEC 60068-2-1; IEC 60068-2-2; CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B

Camera Technical Specification

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 μm

Spectral Range

8 μm–14 μm

Thermal Sensitivity (NETD)

< 50 mK (@f/1.0, 25Hz, 300K)

Focal Length

3.5 mm

Field of View

H: 50.6°, V: 37.8°

Close Focus Distance

0.5 m (1.64 ft)

Effective Distance – Human (1.8 m × 0.5 m)

D: 146 m (479 ft); R: 38 m (125 ft); I: 19 m (62 ft)

Effective Distance – Vehicle (4.0 m × 1.4 m)

D: 389 m (1276 ft); R: 97 m (318 ft); I: 49 m (161 ft)

Aperture

F1.0

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

16 ×

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)

Visible

Image Sensor

1/2.7'' CMOS

Max. Resolution

2336 × 1752

Pixel

4MP

Electronic Shutter Speed

1/30000 s–1 s

Min. Illumination

Color: 0.05 Lux; Black & white: 0.005 Lux; 0 Lux (IR on)

IR Illumination Distance

≥ 30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; manual

Focal Length

4 mm

Aperture

F1.6

Field of View

H: 71.2°; V: 52°; D: 92.6°

Focus Control

Fixed

Close Focus Distance

1.0 m (3.28 ft)

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; intrusion

Advanced Intelligence

Fire detection & alarm; cold & hot spot trace; human & vehicle classification; smoking detection; call detection

Video and Audio

Video Compression

H.265/H.264M/H.264H/H.264B/MJPEG

Resolution

Thermal – Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/VGA (640 × 480)/256 × 192, 1280 × 960 by default; Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by default. Visual – Main Stream: 2336 × 1752/1080p (1920 × 1080)/720p (1280 × 720)/D1 (704 × 576), 2336 × 1752 by default; Sub Stream: 720p (1280 × 720)/D1 (704 × 576)/CIF (352 × 288), 352 × 288 by default

Frame Rate

Thermal – 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default. 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default. Visual – 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default. 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 GB)

Interoperability

ONVIF; CGI

Browser

IE: IE8 and later, and explorer with IE core; Google Chrome: 42 and earlier; Firefox: 42 and earlier

User/Host

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Certification

Certifications

CE: EN55032:2015; EN61000-3-2:2014; FCC: CFR 47 FCC Part 15 Subpart B; ANSI C63.4-2014

Port

Network

1 × 10M/100M Ethernet port (RJ-45)

RS-485

1 pair

Power

Power Supply

12V DC±20%/PoE

Power Consumption

Basic: < 6.5W (LED off); Max: < 13W (LED on, heater on)

Environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Storage Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP67; anti-surge 6kV; anti-electrostatic 6kV (touched by objects); anti-electrostatic 8kV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)

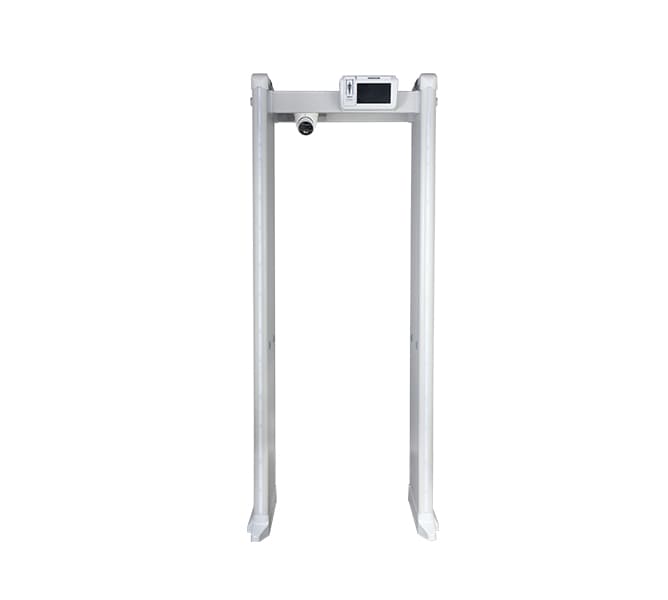

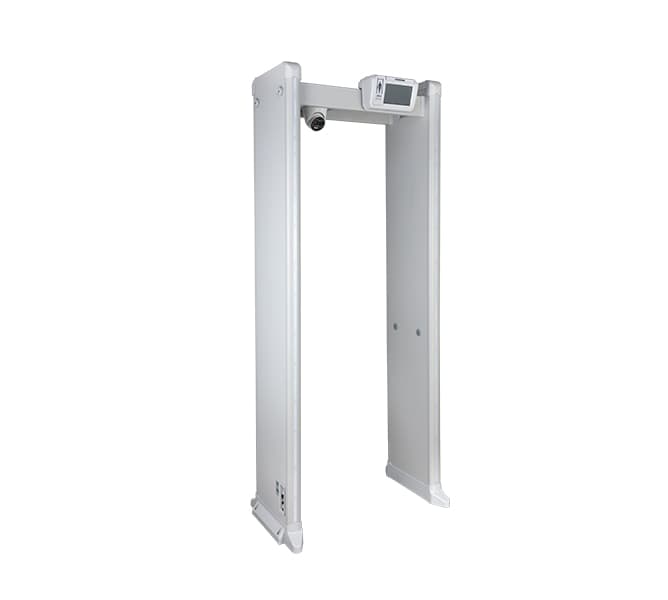

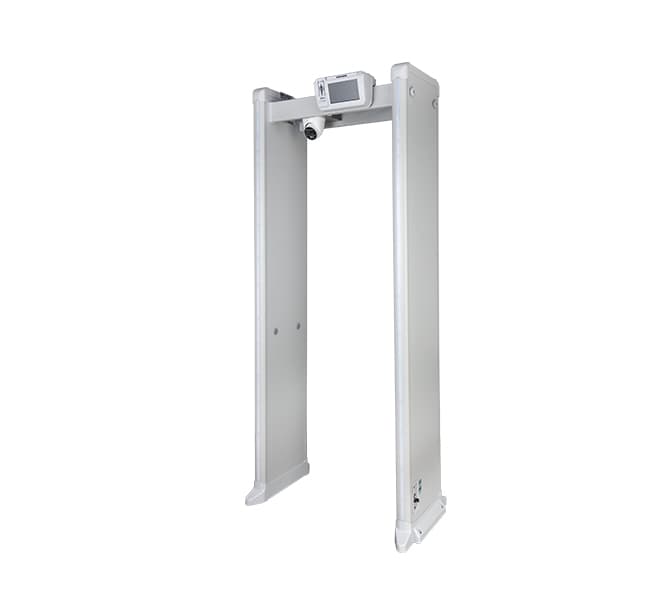

Temperature Monitoring Walk-through Metal Detector
