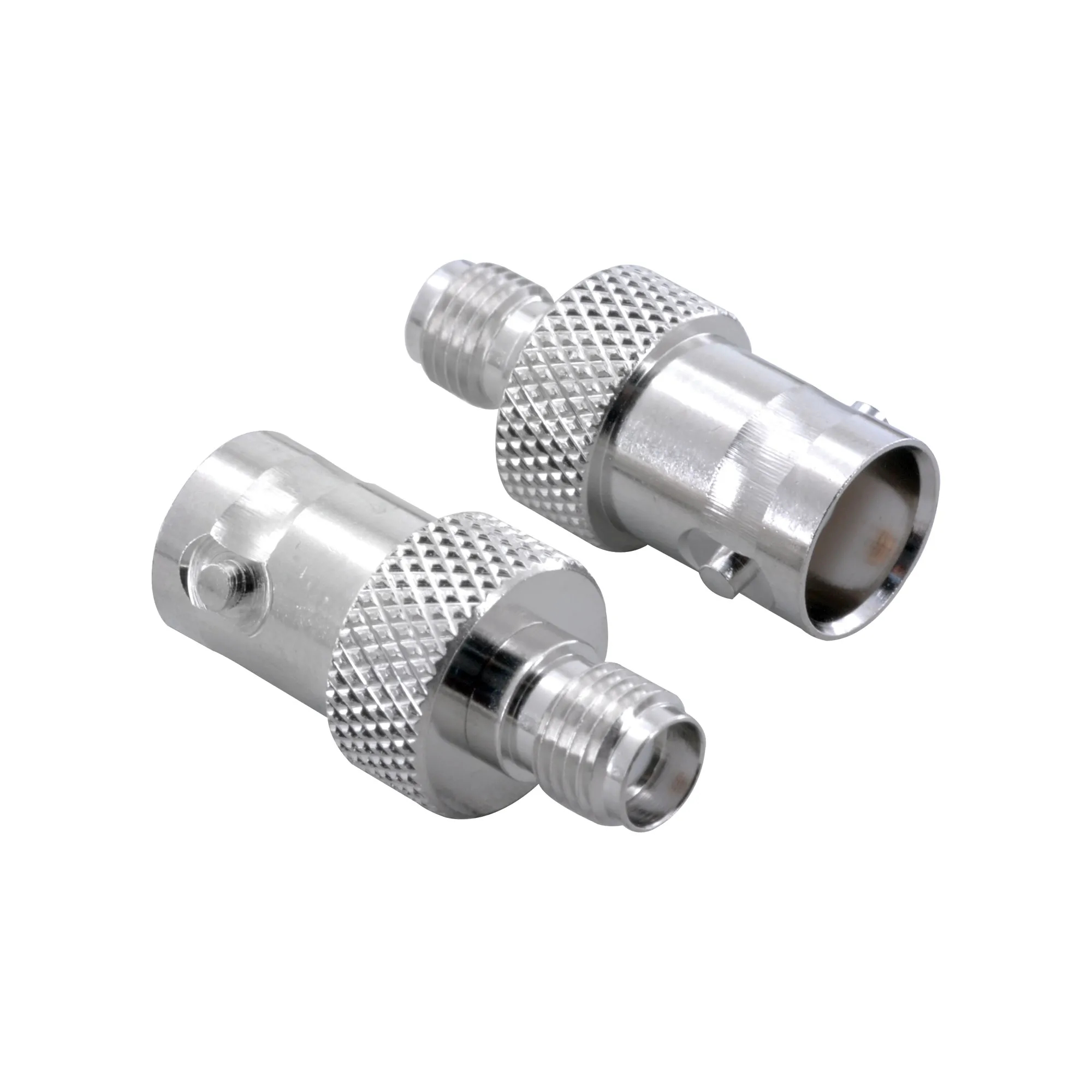

Converts a female SMA end into a female BNC connection.
Female at both ends, this SMA to BNC connector joins two male terminated cables at a single point despite their different interfaces. A 50 Ω impedance and a frequency band reaching 18 GHz carry the signal undistorted across measurement and communication lines.
50 ΩImpedance
0 – 18 GHzFrequency Range
0.06 dBInsertion Loss @ 6 GHz
FemalePlug Type
Key features
SMA to BNC transitionConverts a female SMA end to a female BNC interface and joins two male terminated cables.
50 Ω impedanceHolds the line impedance and keeps the reflected signal low.
0 – 18 GHz frequency bandCovers the wide band used by radio, satellite and measurement systems.
Low insertion lossCarries the signal to the far end with at most 0.06 dB loss at 6 GHz.
Stable VSWRMeets 1.3 max VSWR on the straight body and 1.5 max on the right angle body.
