Joins two SMA male ends in a single body.

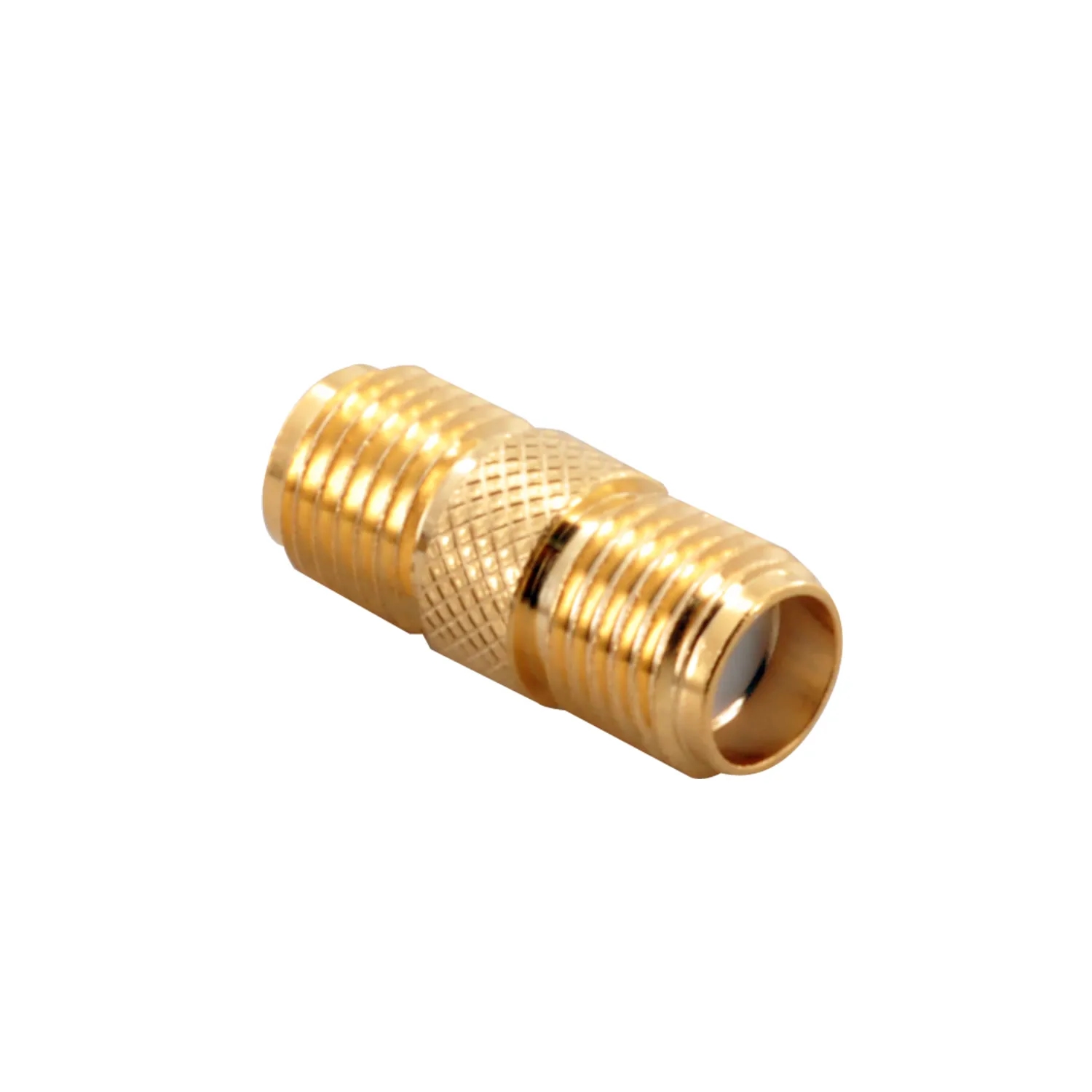

This is a subminiature RF adapter with an SMA female end on both sides. It covers the 0 - 18 GHz band on 50 Ω lines. In high frequency and tightly packed setups it connects two male terminated cables end to end.
Connection layoutBoth ends are SMA female, so it joins two SMA male ends directly.
VSWROn the straight body the VSWR stays within 1.3, which keeps reflection on the line limited.
Insertion lossInsertion loss stays within 0.06 dB at 6 GHz and leaves little attenuation on the line.
Body platingThe gold plated body keeps signal loss low.
