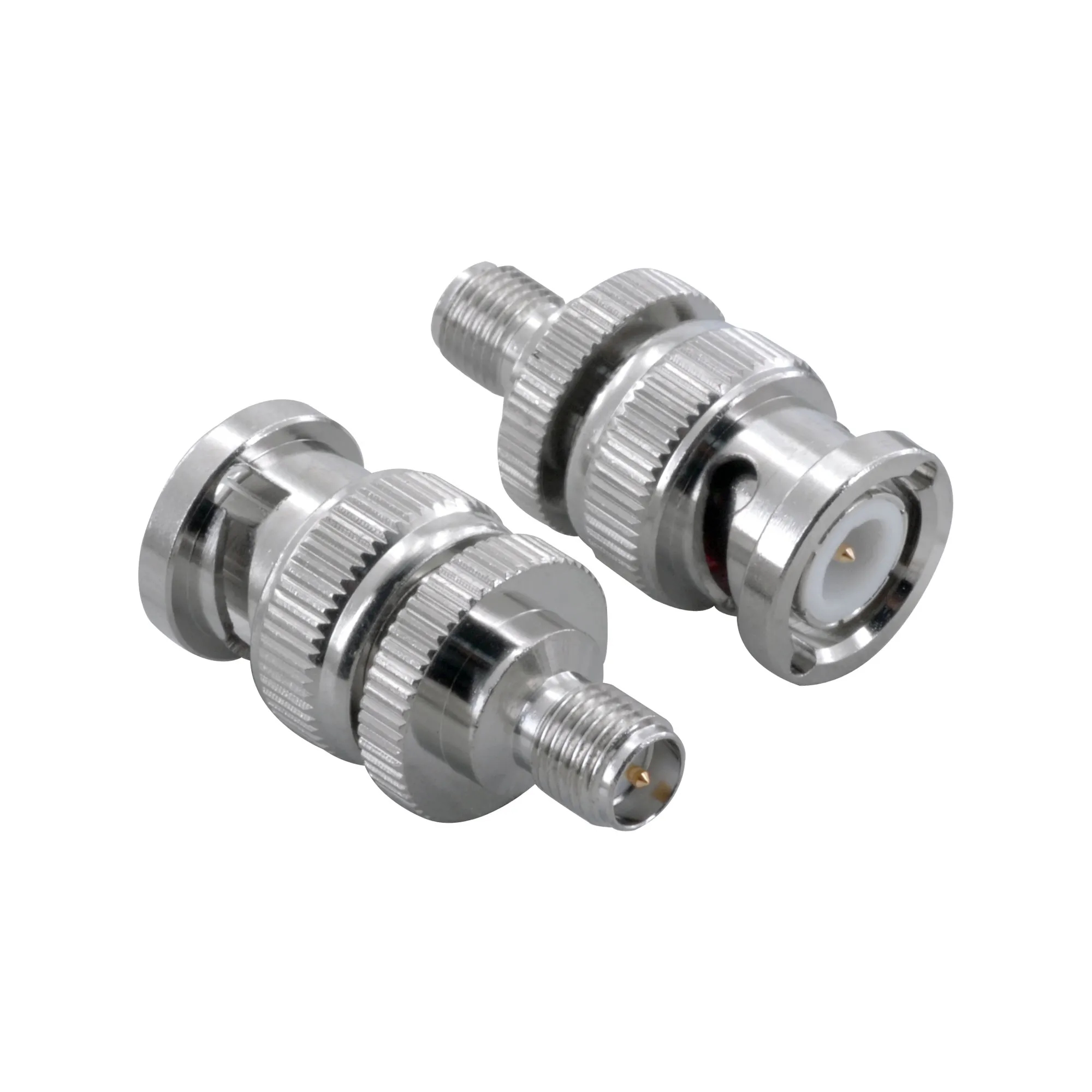

Carries an SMA RP female line to a BNC male input.
It is an RF adapter that bridges SMA RP female and BNC male interfaces. It works on 50 Ω lines and brings two separate connector standards together without pulling new cable. It serves as an intermediate element in the RF links of two-way radio, broadcast and security systems.
Interface conversionIt creates a direct transition between the SMA RP female interface and the BNC male interface.
Impedance continuityIt carries 50 Ω impedance at both ends and keeps the line impedance unchanged at the transition point.
Operating bandIt operates across the 0 - 18,0 GHz range and passes signal from DC level up to the microwave band.
Signal performanceInsertion loss stays at or below 0.06 dB at 6 GHz, and VSWR remains within 1.3 on the straight body and 1.5 on the right angle body.
Plating and end configurationA nickel plating covers the outer body, and it combines one male and one female end in a single body.
