Opens a female SMA outlet on the cabinet panel and terminates RG58 cable from inside.

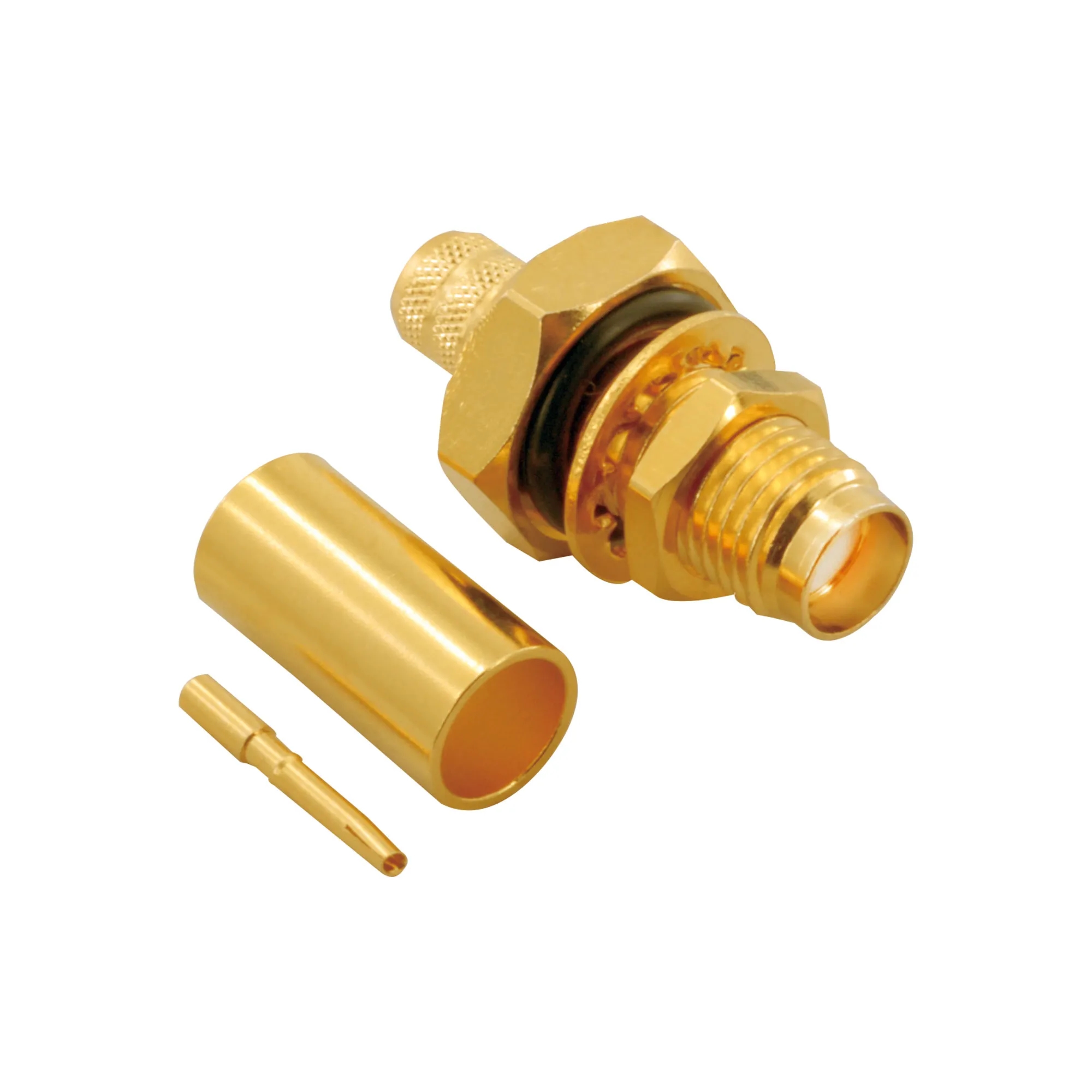

The chassis-nut female member of the semi-precision subminiature SMA family seats in a panel hole and terminates RG58 coaxial cable on a 50 Ω line. The body covers the 0 – 18 GHz range. A gold-plated contact pin and body keep signal loss to a minimum.
50 ΩImpedance
0 – 18 GHzFrequency Range
CrimpLink Type
FemalePlug Type
GoldOuter Jacket
Key features
Impedance and bandWorks on a 50 Ω line and covers the 0 – 18 GHz range.
Chassis mountingThe nut body passes through the panel hole and seats on the cabinet wall.
Crimp assemblyHolds RG58 cable inside the crimp body.
Gold-plated contactA gold-plated contact pin and body keep signal loss to a minimum.
Insertion lossAdds up to 0.06 dB insertion loss measured at 6 GHz.
