Turns the end of an RG213 cable into an SMA interface.

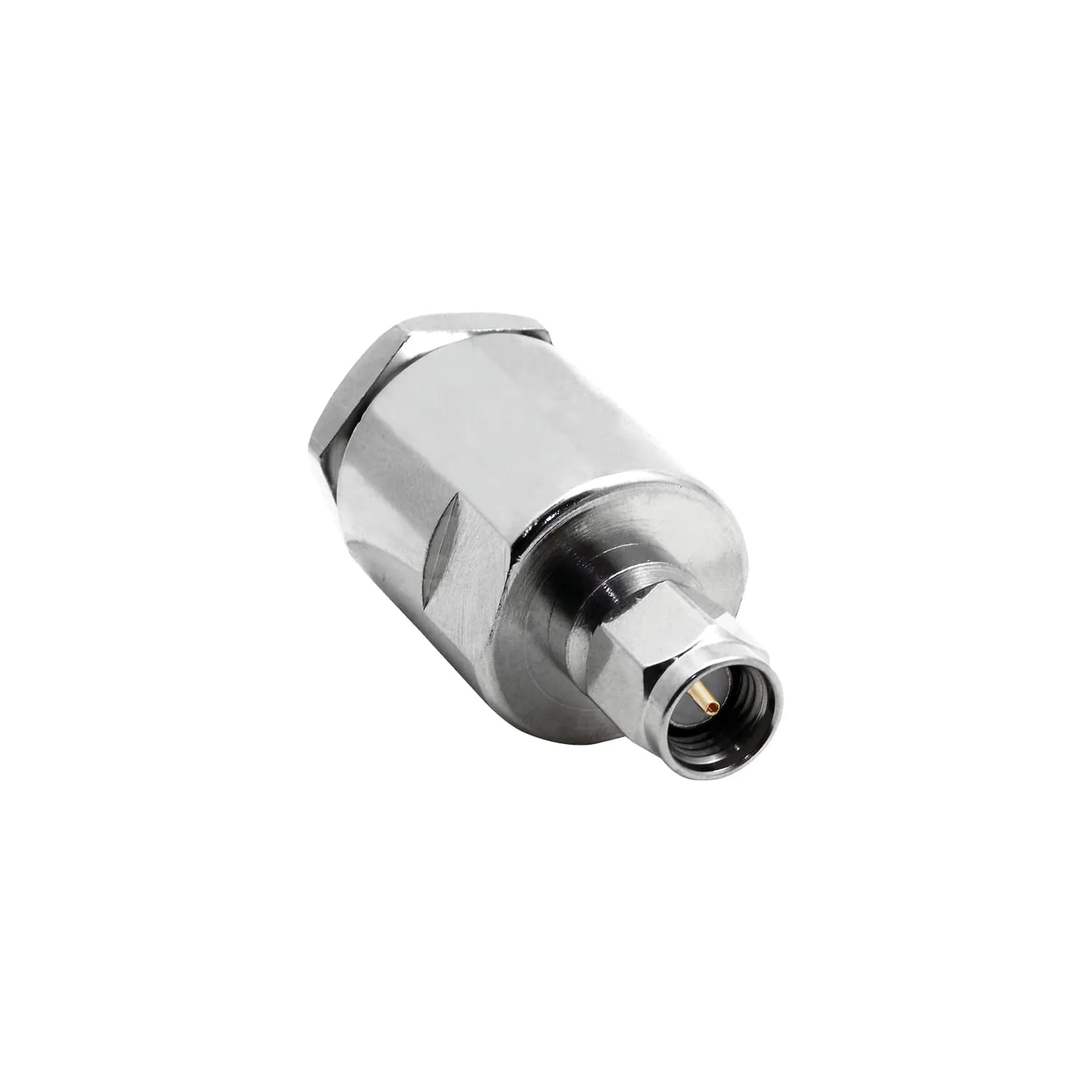

The male SMA connector terminates RG213 cable with a screw-on sleeve. It works on a 50 Ω line up to 18 GHz, and its subminiature body suits high frequency links.
Screw-on terminationThe threaded sleeve tightens the cable onto the body and holds it in place.
Threaded couplingThe threaded nut tightens the connector onto the mating port.
BandwidthCarries signal from DC up to 18 GHz.
Electrical valuesVSWR stays below 1.3 on straight bodies and below 1.5 on right angle bodies, and insertion loss holds at 0.06 dB at 6 GHz.
PlatingGold plating covers the outer body.
