Terminates LMR240 coaxial cable at an SMA male RP interface.

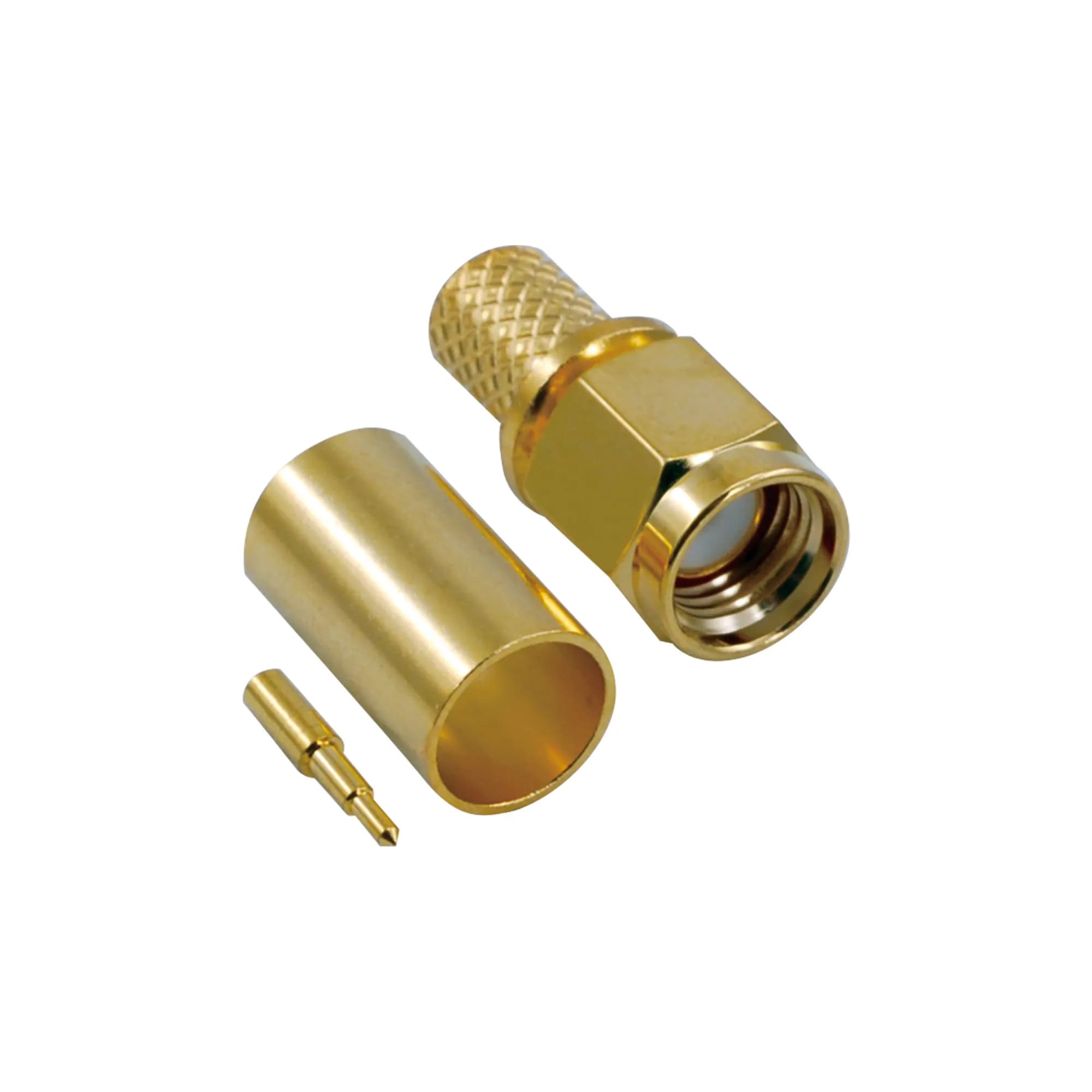

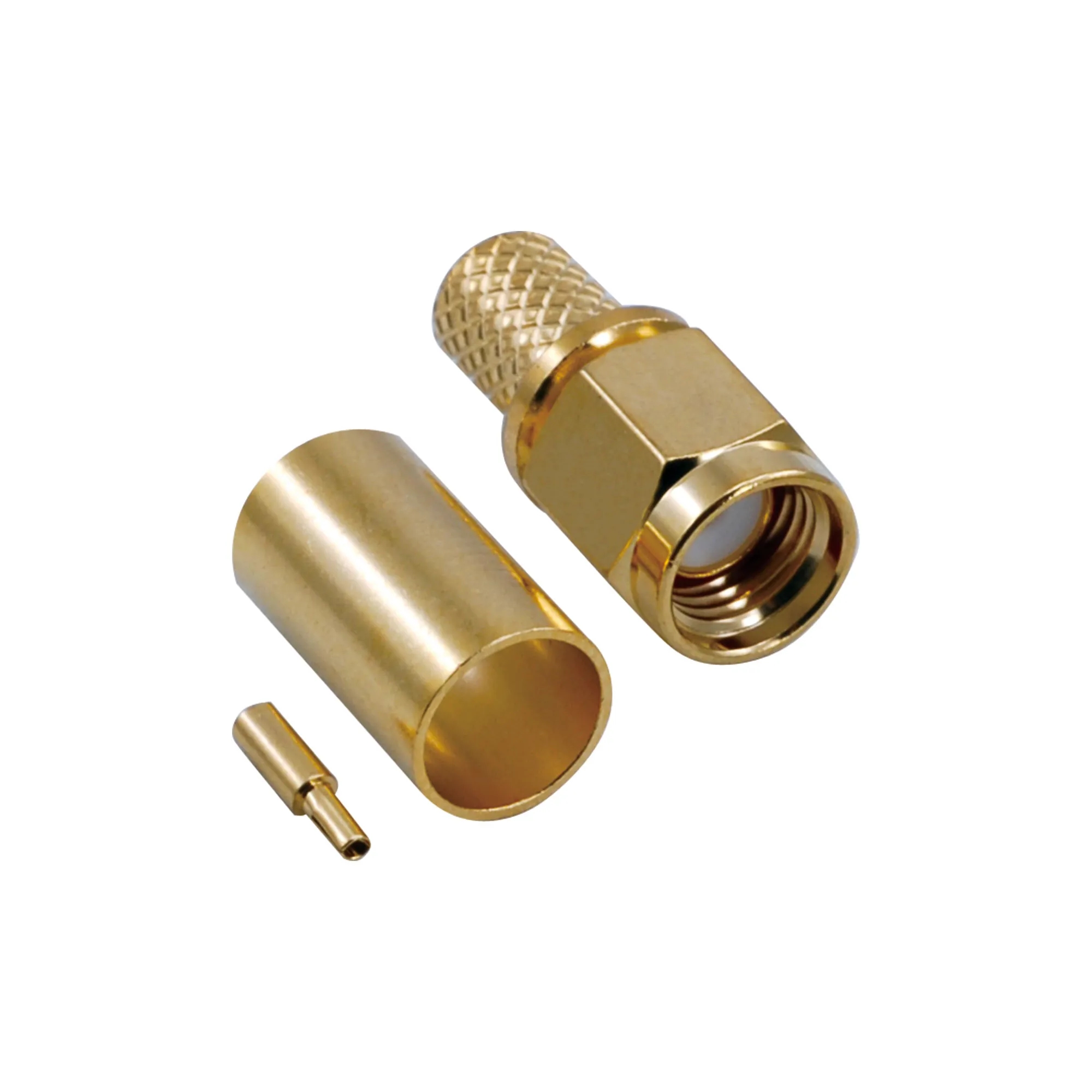

This male crimp RP-SMA connector joins LMR240 coaxial cable to a 50Ω SMA line. The subminiature body fits tight mounting spaces, and the RP body expects an RP interface on the facing side.
Crimp terminationA crimp tool seats the connector on the end of the LMR240 cable and the joint stays permanent.
0 - 18,0 GHz bandThe subminiature body works across this wide frequency range.
VSWR figureIt stays within 1.3 on straight bodies and 1.5 on right-angle bodies.
Insertion lossAt 6 GHz the insertion loss stays at 0.06 dB at most.
Gold-plated bodyThe male RP plug body screws onto the facing RP socket.
