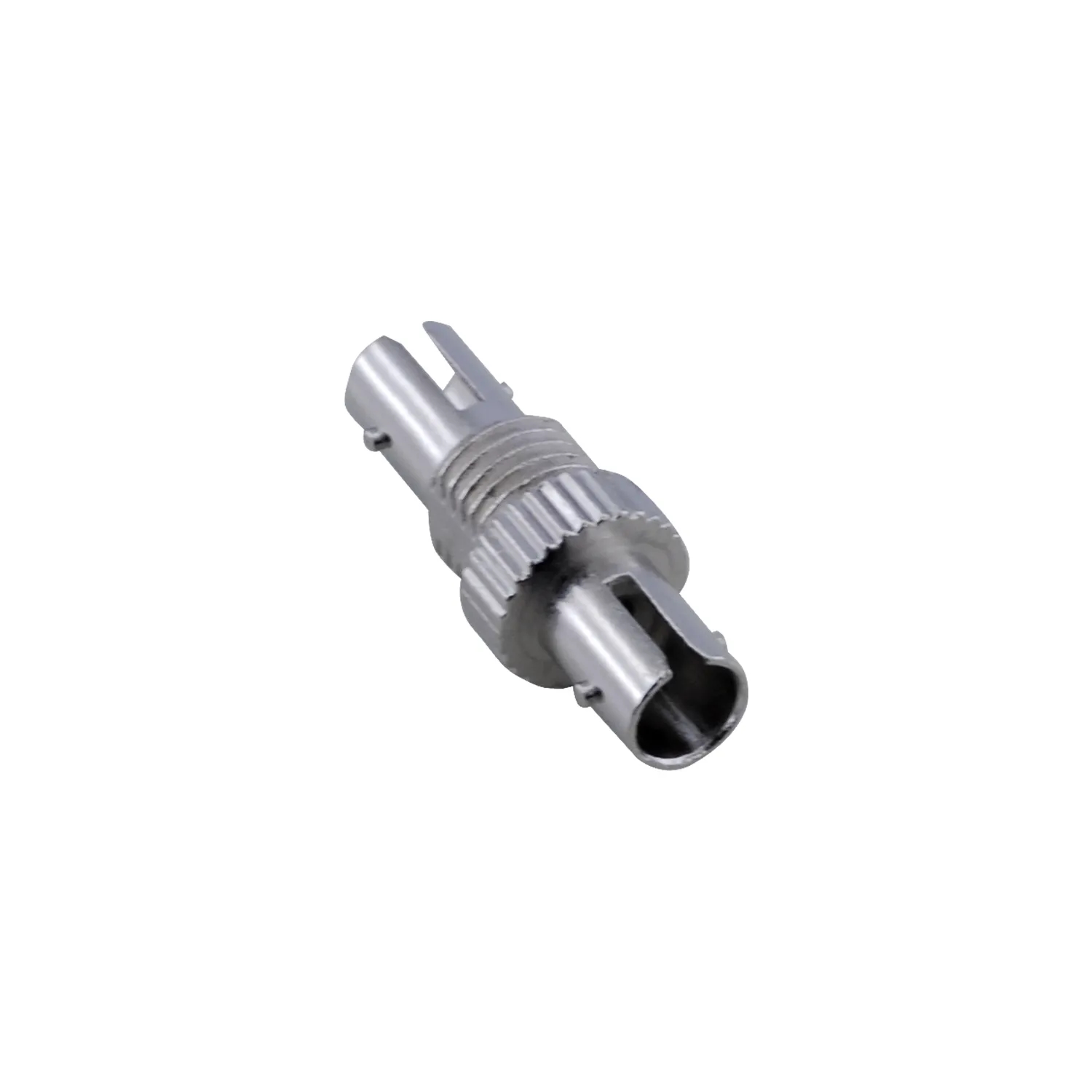

Name: ST Coupler SM Simplex 9/125
Brand: Amphenol
SKU: 106-034

Terminates the single-mode ST link at the panel

A simplex adapter that aligns single-mode fiber ends with an ST/PC interface face to face. A nickel-plated Zamak body and a ZrO2 ceramic sleeve hold the connector ends on a common axis.

ST/PCconnector type

SMfiber type

9/125 µmfiber size

Simplexconfiguration

< 0.3 dBinsertion loss

Key features

0.3dB

Low insertion loss

Optical loss across the adapter stays below 0.3 dB.

ZrO2

Ceramic alignment sleeve

The zirconium oxide sleeve holds the two connector ends on a common axis.

Zamak#3

Nickel-plated metal body

The body material is Zamak #3 with a nickel-plated finish.

M9×0.75

Fixed panel mounting

The M9×0.75 mounting thread fastens the adapter to the panel surface.

29.4mm

Compact body height

Overall length is 29.4 mm and body height is 8.3 mm.

Package and compliance

What is in the boxThe package holds the connector components and the TPU dust cap.

RoHS compliantThe product conforms to the RoHS regulation.

General Specifications

Part Number

106-034

Product Type

Fiber Optic Adapter (Coupler)

Connector Interface

ST/PC

Fiber Type

Singlemode (SM) 9/125 µm

Configuration

Simplex

Optical Specifications

Insertion Loss

< 0.3 dB

Material & Finish

Adapter Body

Zamak #3, Ni plated

Sleeve

ZrO2 (zirconia ceramic)

Dust Cap

TPU

Mechanical Specifications

Overall Length

29.4 mm

Body Height

8.3 mm

Panel Mounting Thread

M9×0.75

Other

Package Contents

Connector components and a dust cap

Compliance

RoHS compliant
