Brings a single surface-mount data outlet to the work area.

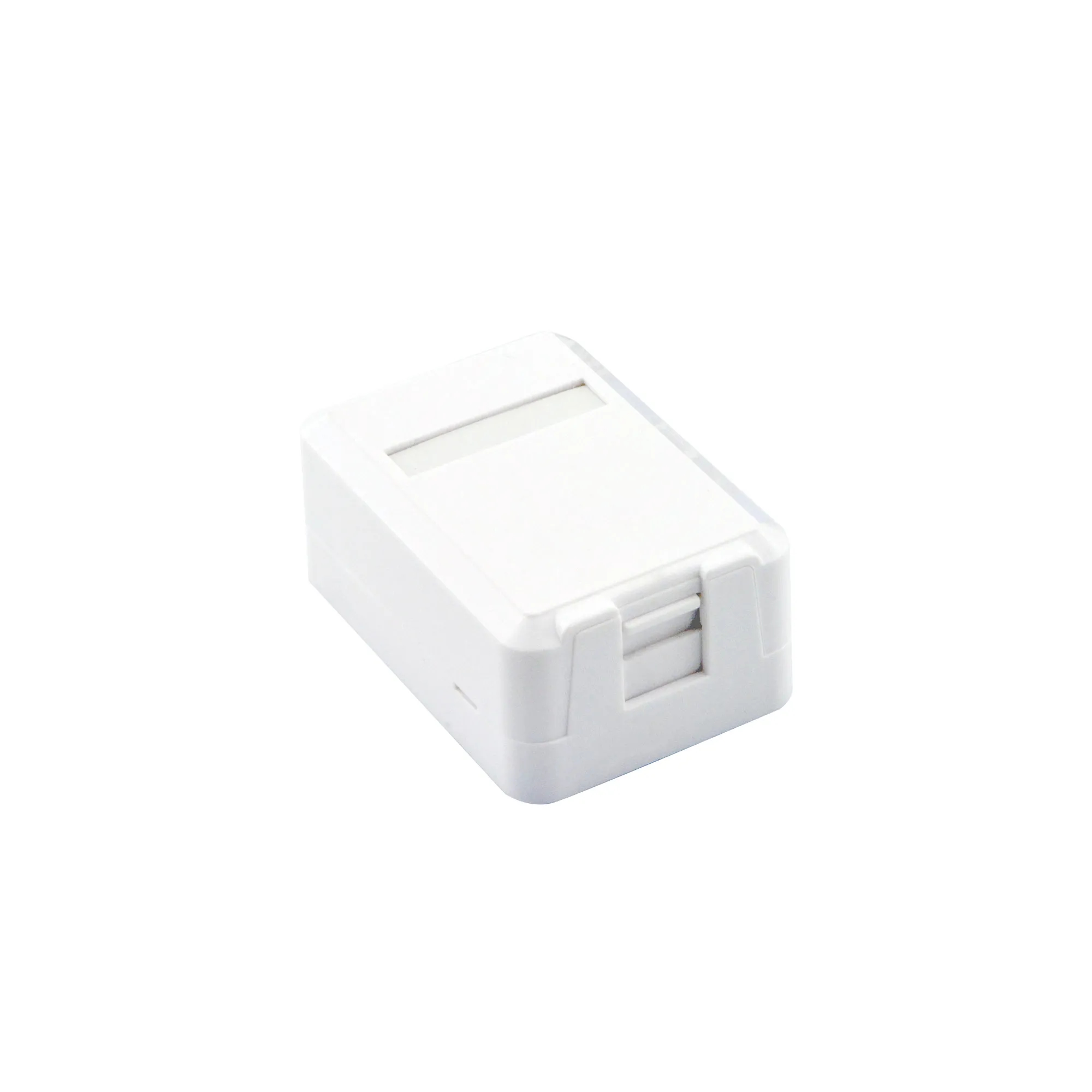

This surface-mount wall outlet terminates the copper run from the cable trunking at a single data port in the work area. The same body accepts CAT7, CAT6A, CAT6 and CAT5e cabling and meets ANSI/TIA-568.2-D Category 6A requirements.
1Port Count
Surface mountMounting Type
CAT7, CAT6A, CAT6 and CAT5eSupported Categories
ANSI/TIA-568.2-DStandards Compliance
ISO/IEC 11801-1 Class EAClass Compliance
ETL VerifiedCertification
Key features
Single portThe single-port body serves one data outlet in the work area.
Surface mountingThe box sits directly on the wall surface and terminates the trunking run without cutting plaster.
CAT7 to CAT5e supportThe same body accepts CAT7, CAT6A, CAT6 and CAT5e cabling.
Category 6A verificationIt meets ANSI/TIA-568.2-D Category 6A and ISO/IEC 11801-1 Class EA requirements.
The ETL Verified listing (Intertek, 100896997CRT-001b) covers the 4-Connector Channel built with the WO-6AF wall outlet.
