Terragraph Distribution Node

Name: Terragraph Distribution Node
Brand: Ignitenet
SKU: MLTG-360

Stock Code: MLTG-360

A distribution node that spreads 60 GHz connectivity in four directions without fiber

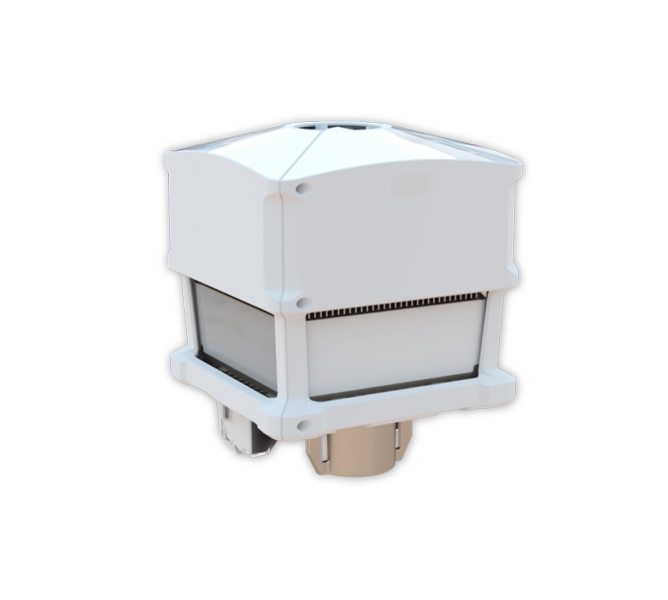

A Terragraph certified distribution node. Four 60 GHz radios scan 360° around the node and build a redundant mesh between nodes. It carries fixed wireless access and backhaul links where pulling fiber gets expensive.

360°Coverage

460 GHz radios

57-66 GHzFrequency Range

28 dBiAntenna gain

IP66Protection Grade

-40 °C … 55 °COperating Temperature

Key features

4radios

All-around coverage

Four radios scan the area around the node without a gap, so no extra antenna install is needed.

64antenna elements

Phased array antenna

Each antenna tile steers the beam electronically and keeps alignment simple.

300m

Link range

It reaches up to 300 m with MCS9 modulation and up to 200 m with MCS12.

10Gigabit SFP+

Backbone uplink

The fiber uplink port carries the node to the core network, while four Gigabit ports deliver PoE output.

75W

Power consumption

It accepts passive PoE or a 42.5~59 V DC terminal block and draws at most 75 W.

IN DAILY USE

Wireless instead of fiberIt builds fiber-like connectivity wirelessly where pulling fiber is hard.

Self-recovering networkIt meshes with neighboring nodes and reroutes traffic when a link drops.

Simple alignmentBeamforming cuts the mechanical fine-tuning work during installation.

Usage AreaFixed wireless access·Wi-Fi backhaul·Cellular network backhaul

Physical

60GHz Radio

4x antenna tiles per radio
64 antenna elements for each antenna tile
90 degrees azimuth scan range: -45º to 45º
50 degrees elevation scan range: -25º to 25º

Antenna

Type: Built-in phased array antenna
Gain: 28 dBi

Interfaces

1x Gigabit Ethernet Port (PoE IN)
1x 10 Gigabit SFP+ port
4x Gigabit Ethernet Port (PoE OUT)
4x 60GHz Radio

Standards

802.11ay

Environmental Conditions

Operating Temperature: -40ºC (-40ºF) to 55ºC (131ºF)
Storage Temperature: -40ºC (-40ºF) to 85ºC (185ºF)
Operating Humidity: 5% to 95% non-condensing
IP66 Rating

Power

Passive PoE (Injector Optional)
42.5V~59V DC terminal block

Power Consumption

75W max.

Dimensions (L x W x H)

19.9 x 19.9 x 20.0 cm (7.83 x 7.83 x 7.87 in)

Weight

3.9 kg (with mount)

Certifications

FCC/CE

Performance

Frequency Band

57-66GHz

Modulation

BPSK, QPSK, 16QAM

Range

Up to 300m for MCS9
Up to 200m for MCS12

RF Output Power

Up to 43 dBm EIRP (with antenna gain)

RF Performance (RX)

-66 dBm @ MCS9
-61 dBm @ MCS12

Key Features

Support channel 1 to channel 4 (57-66GHz)

Up to 3.8 Gbps bi-directional aggregate throughput for each radio

Beamforming technology with phased array antenna for easy alignment

Support TDMA-MAC for dynamic bandwidth allocation

Support Over-the-Air (OTA) Security with AES128 encryption

Mesh network with IPv6 routing

Support QoS with 4 service classes

Self-recovery & optimization

IPv6 tunneling

Support Layer 2 Forwarding

Support VLAN transparent transmission

Support management VLAN

Datasheet

MLTG-360

pdf10/9/2020

Terragraph Distribution Node

Stock Code: MLTG-360

A distribution node that spreads 60 GHz connectivity in four directions without fiber

360°Coverage

460 GHz radios

57-66 GHzFrequency Range

28 dBiAntenna gain

IP66Protection Grade

-40 °C … 55 °COperating Temperature

Key features

4radios

All-around coverage

Four radios scan the area around the node without a gap, so no extra antenna install is needed.

64antenna elements

Phased array antenna

Each antenna tile steers the beam electronically and keeps alignment simple.

300m

Link range

It reaches up to 300 m with MCS9 modulation and up to 200 m with MCS12.

10Gigabit SFP+

Backbone uplink

The fiber uplink port carries the node to the core network, while four Gigabit ports deliver PoE output.

75W

Power consumption

It accepts passive PoE or a 42.5~59 V DC terminal block and draws at most 75 W.

IN DAILY USE

Wireless instead of fiberIt builds fiber-like connectivity wirelessly where pulling fiber is hard.

Self-recovering networkIt meshes with neighboring nodes and reroutes traffic when a link drops.

Simple alignmentBeamforming cuts the mechanical fine-tuning work during installation.

Usage AreaFixed wireless access·Wi-Fi backhaul·Cellular network backhaul

Physical

60GHz Radio

4x antenna tiles per radio
64 antenna elements for each antenna tile
90 degrees azimuth scan range: -45º to 45º
50 degrees elevation scan range: -25º to 25º

Antenna

Type: Built-in phased array antenna
Gain: 28 dBi

Interfaces

1x Gigabit Ethernet Port (PoE IN)
1x 10 Gigabit SFP+ port
4x Gigabit Ethernet Port (PoE OUT)
4x 60GHz Radio

Standards

802.11ay

Environmental Conditions

Operating Temperature: -40ºC (-40ºF) to 55ºC (131ºF)
Storage Temperature: -40ºC (-40ºF) to 85ºC (185ºF)
Operating Humidity: 5% to 95% non-condensing
IP66 Rating

Power

Passive PoE (Injector Optional)
42.5V~59V DC terminal block

Power Consumption

75W max.

Dimensions (L x W x H)

19.9 x 19.9 x 20.0 cm (7.83 x 7.83 x 7.87 in)

Weight

3.9 kg (with mount)

Certifications

FCC/CE

Performance

Frequency Band

57-66GHz

Modulation

BPSK, QPSK, 16QAM

Range

Up to 300m for MCS9
Up to 200m for MCS12

RF Output Power

Up to 43 dBm EIRP (with antenna gain)

RF Performance (RX)

-66 dBm @ MCS9
-61 dBm @ MCS12

Key Features

Support channel 1 to channel 4 (57-66GHz)

Up to 3.8 Gbps bi-directional aggregate throughput for each radio

Beamforming technology with phased array antenna for easy alignment

Support TDMA-MAC for dynamic bandwidth allocation

Support Over-the-Air (OTA) Security with AES128 encryption

Mesh network with IPv6 routing

Support QoS with 4 service classes

Self-recovery & optimization

IPv6 tunneling

Support Layer 2 Forwarding

Support VLAN transparent transmission

Support management VLAN

Datasheet

MLTG-360

pdf10/9/2020

Terragraph Distribution Node

Datasheet

MLTG-360
