Terminates RG213 coaxial cable on a screw-on female RP-TNC interface.

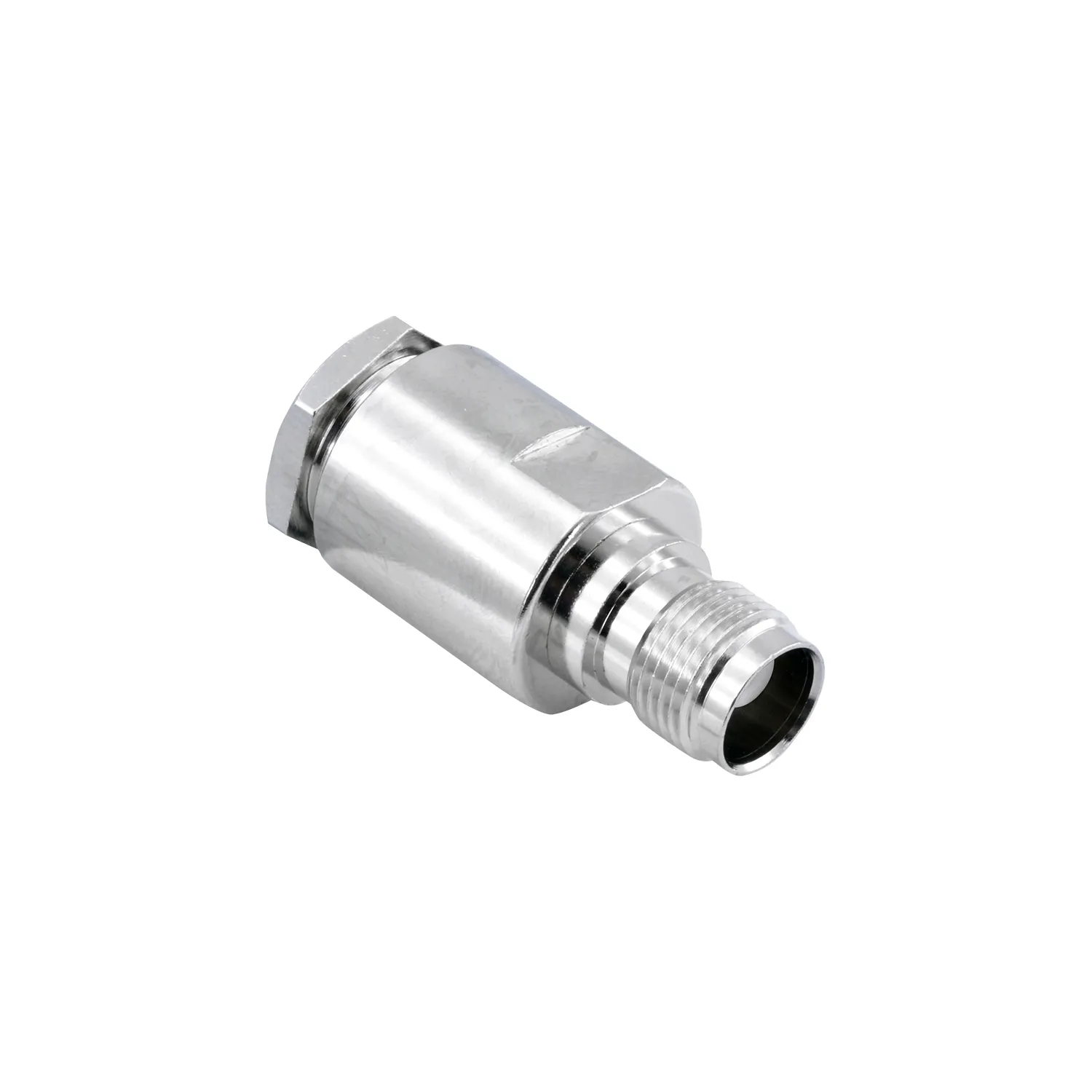

A screw-on RP type female TNC connector for RG213 coaxial cable. The threaded coupling carries the line up to 11 GHz, while the gold-plated contact and the nickel-plated body keep signal loss to a minimum.
Threaded coupling nutThe nut locks the connector onto the mating port and holds the link steady under vibration.
RP type female interfaceIt mates with RP-TNC male ends.
Band up to 11 GHzThe threaded coupling design carries the line up to 11 GHz.
Low signal lossThe gold-plated contact and the nickel-plated body keep signal loss to a minimum.
Stable VSWRThe straight body holds VSWR at 1.3 max.
Low insertion lossInsertion loss stays at 0.2 dB max at 3 GHz.
