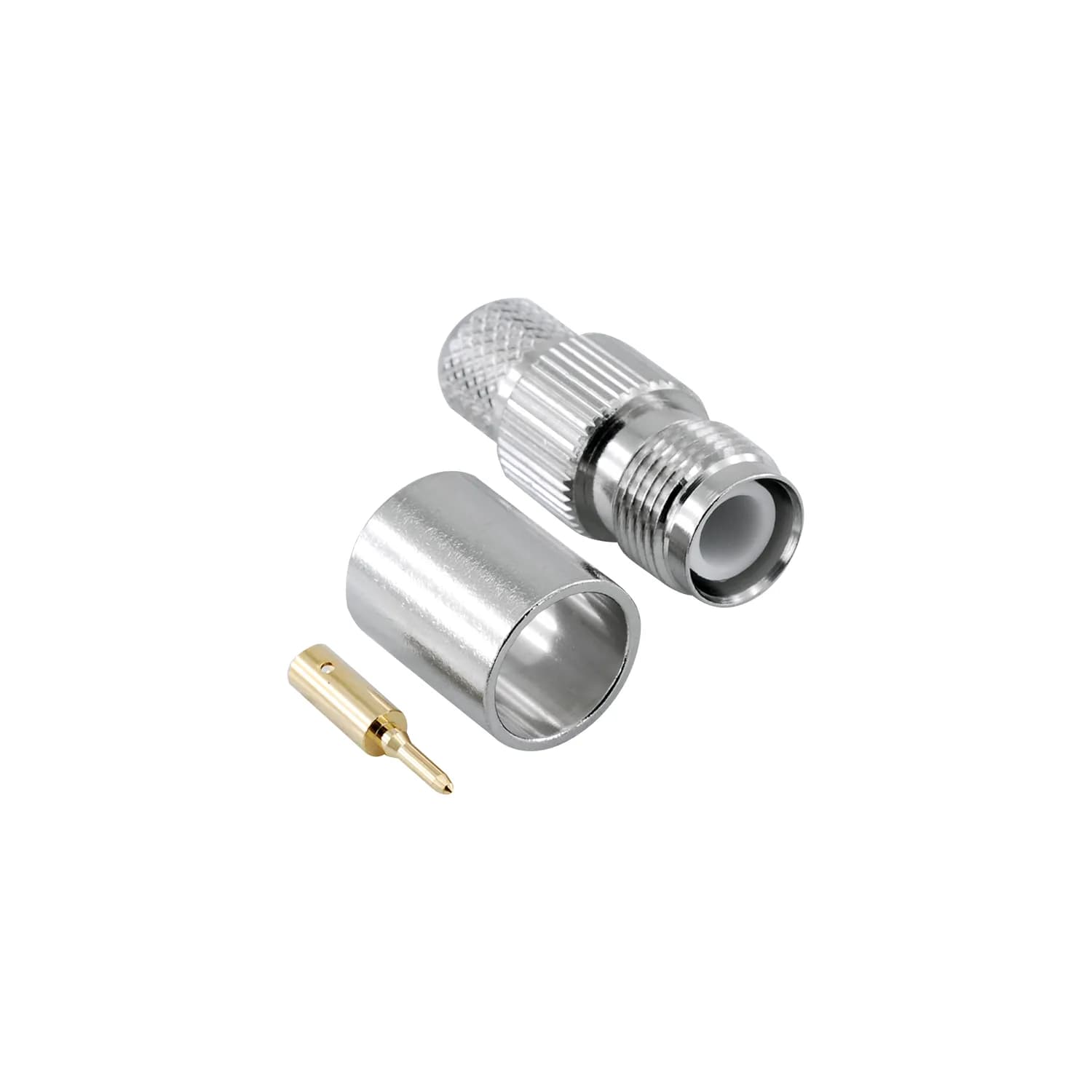

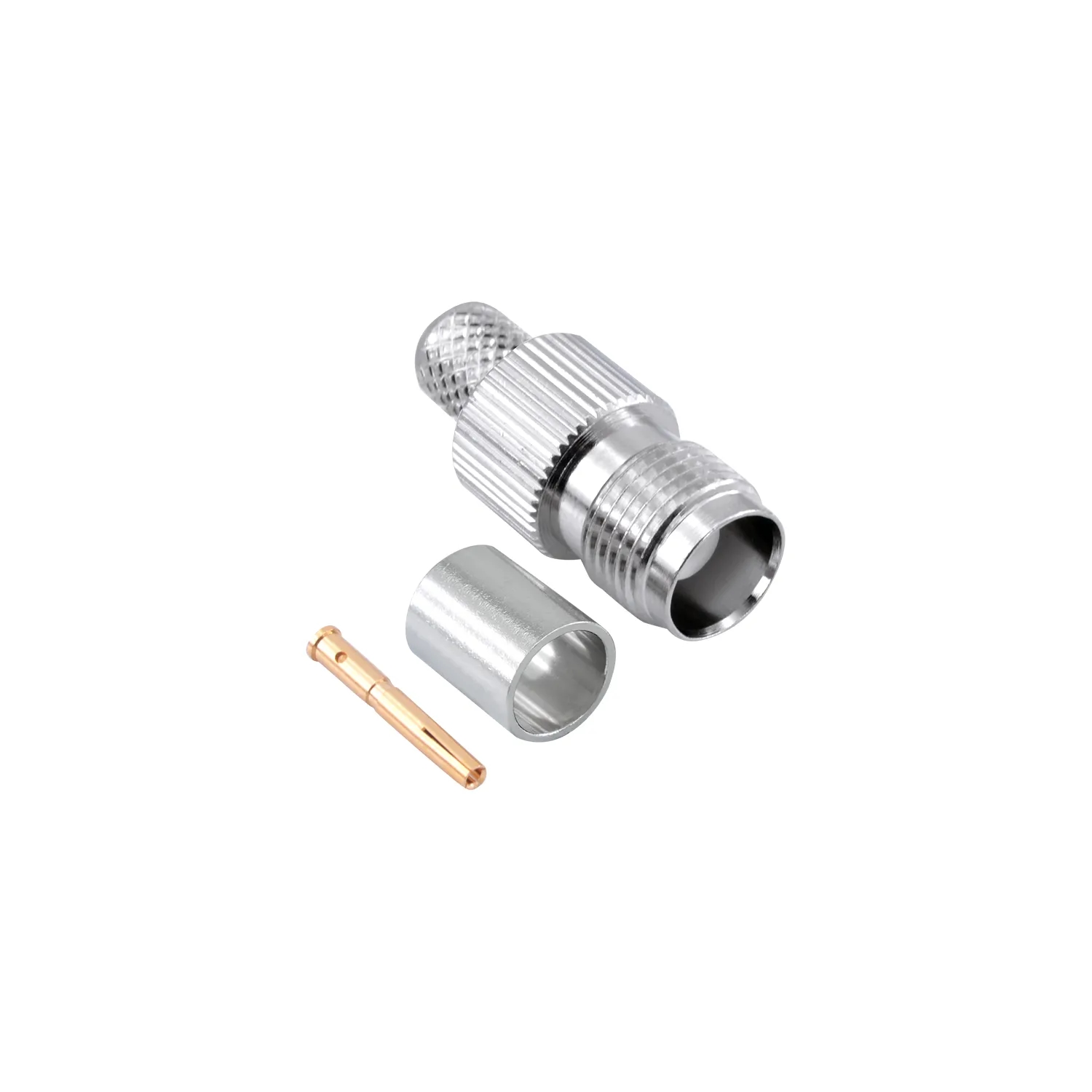

Terminates LMR400 cable with a threaded, crimped TNC female end.
A TNC female connector that crimps onto LMR400 cable. It works at 50Ω line impedance and serves lines across the 0 - 11,0 GHz range. The threaded coupling nut keeps the mated pair in place.
Crimp mountingIt crimps onto the end of LMR400 cable and grips the cable permanently.
Threaded nutThe coupling nut tightens the mated pair, so the end does not shake loose under vibration.
50Ω line matchIt plugs straight into 50Ω systems.
Frequency rangeIt operates across the 0 - 11,0 GHz range.
Low insertion lossInsertion loss stays at 0.2 dB max at 3 GHz.
Silver platingThe outer surface of the connector carries silver plating.
