Terminates LMR240 coaxial cable on a TNC interface by crimping.

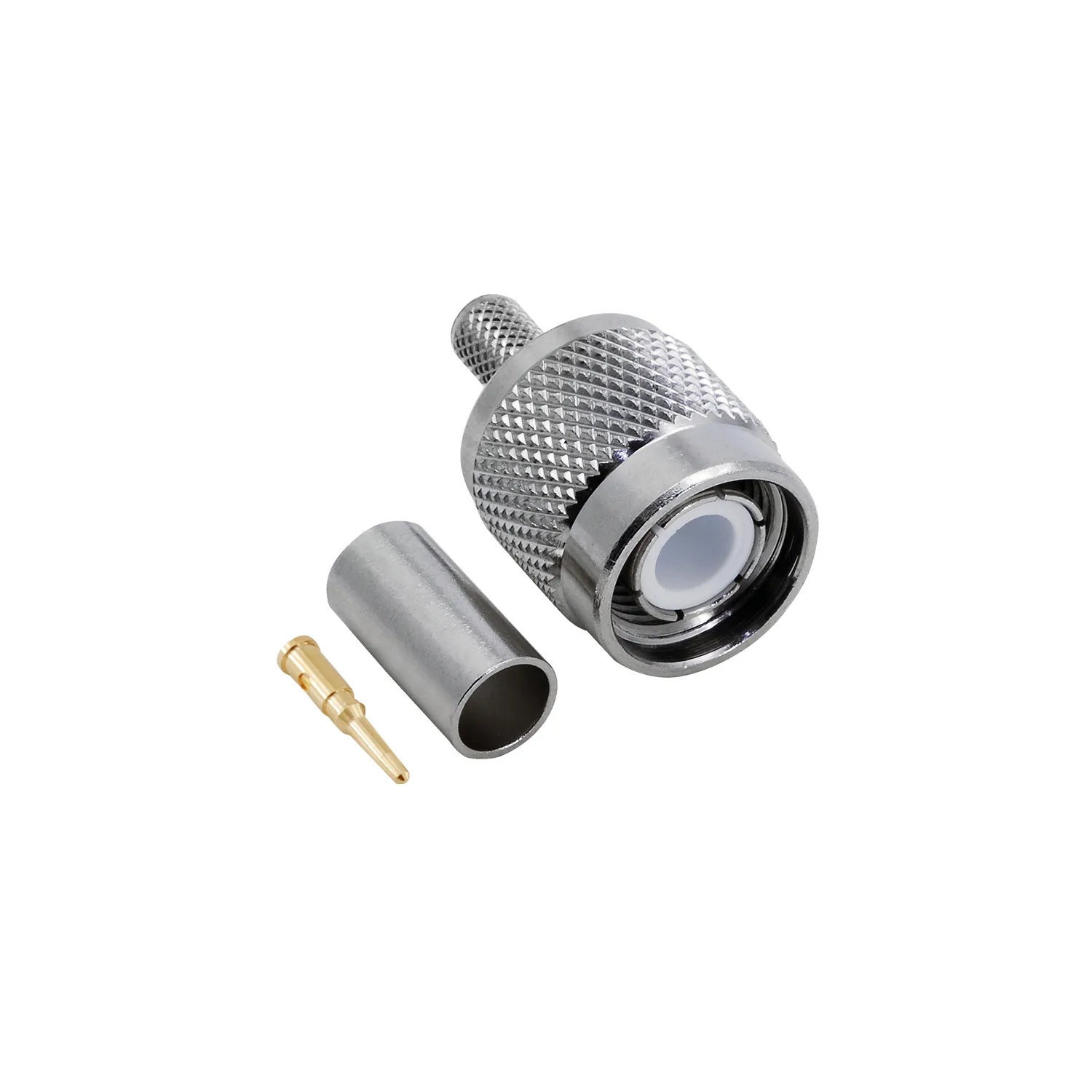

A male TNC connector working at 50 Ω line impedance. It crimps onto LMR240 cable and covers the 0 - 11 GHz band. It builds the RF link between antenna and device in high vibration environments and on communication lines.
50 ΩImpedance
0 - 11 GHzFrequency Range
TNCConnector Type
CrimpTermination
MalePlug Type
LMR240Cable Type
Key features
InterfaceThe TNC body with a coupling nut holds the link tight against vibration.
Frequency bandWorks across the 0 - 11 GHz range.
Signal qualityStanding wave ratio stays within 1.3 on the straight body; insertion loss holds at 0.2 dB at 3 GHz.
PlatingThe body is nickel plated.
AssemblyCrimp termination fixes the LMR240 cable to the connector mechanically.
