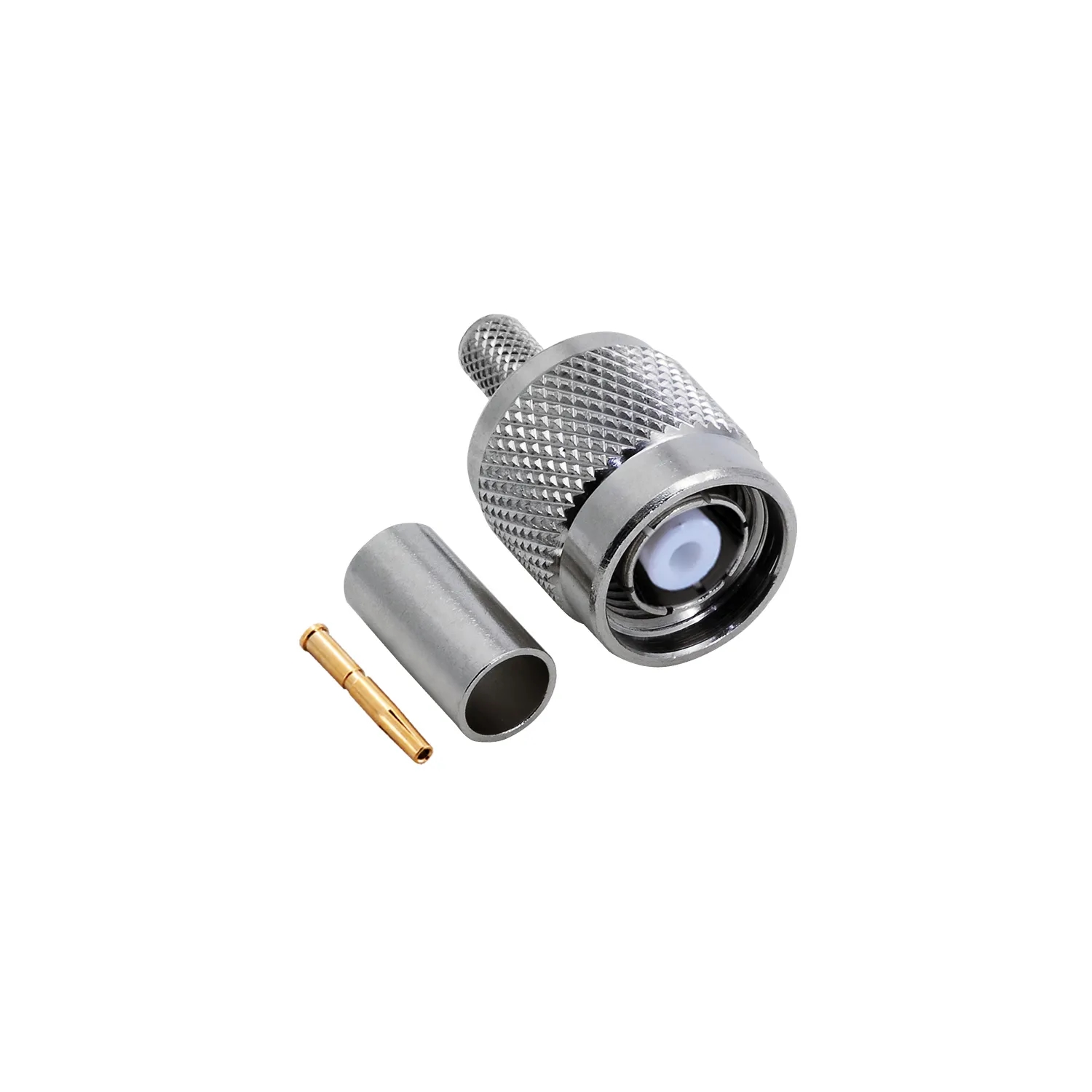

Connects RG58 cable to a reverse-polarity male TNC interface.
The reverse-polarity male member of the TNC family terminates RG58 coaxial cable on a 50 Ω line and covers the 0 – 11 GHz range. The reverse-polarity body forms a mating group separate from the standard TNC interface. A gold-plated contact pin and nickel-plated body keep signal loss to a minimum.
Impedance and bandWorks on a 50 Ω line and covers the 0 – 11 GHz range.
Reverse-polarity interfaceForms a mating group separate from the standard TNC interface.
Threaded couplingThe coupling nut holds the link in place under vibration.
PlatingA gold-plated contact pin and nickel-plated body keep signal loss to a minimum.
VSWRStays at 1.3 max VSWR with the straight body.
Insertion lossAdds up to 0.2 dB insertion loss measured at 3 GHz.
