  7. Two Door Slave Access Control Module
    Dahua

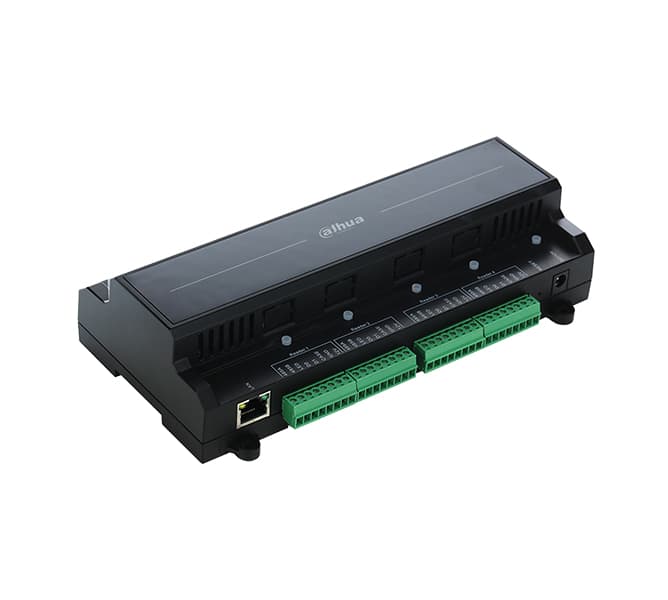

    Two Door Slave Access Control Module

    Stock Code: ASC2102B-T

    Options

    2 options
    Door CountTwo2
    Currently viewing: ASC2102B-T · Two
    Adds two more doors to the master controller.
    A two-door slave control module that joins the master access controller over the CAN bus. It verifies cards, passwords and fingerprints at the door, and extends the system with the same rules on small additions.
    2 doorsControl capacity
    4Reader count
    128Time schedules
    DC 12VPower Supply
    -30°C to +60°COperating Temperature
    Key features
    Capacity9 inputs and 5 relay outputs carry the lock, sensor and exit button lines of two doors, plus a sensor trigger output.
    Access controlIt applies anti-passback, multi-door interlock and multi-person unlock rules, and separates users as general, VIP, guest, patrol and block list.
    AlarmDoor time out, intrusion, duress and tamper events are reported separately.
    Reader connectionReaders connect over Wiegand or RS485, and the module joins the master controller through the CAN H and CAN L lines.
    InstallationSurface mounting seats the module on the wall, and the watch dog function keeps the device from halting.
    System
    Main Processor 32-bit
    Memory 16M

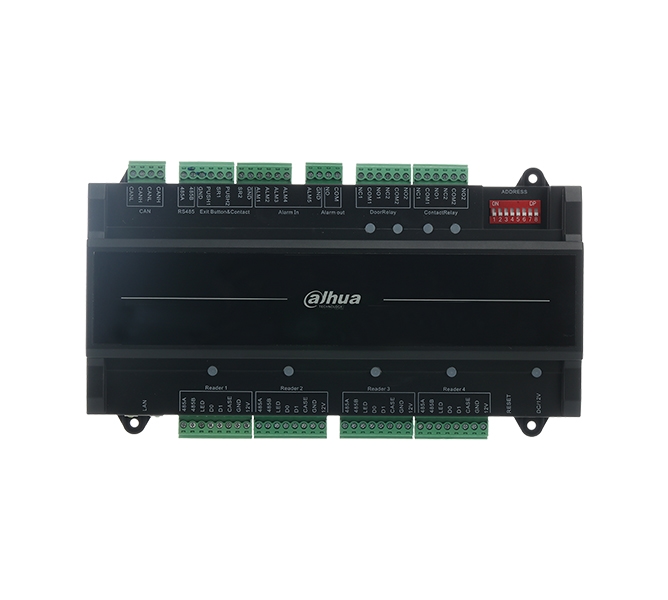

    Input/Output Ports
    Input Input × 9 (door sensor × 2, exit button × 2, alarm × 5)
    Output Relay × 5 (door lock × 2, sensor trigger out × 2, alarm × 1)
    Reader Reader × 4
    Capacity
    Card Holders / Events 20,000 / 30,000
    Function
    Access Control Anti-passback, Multi-interlock, Multi-personal unlock
    User Management General, VIP, Guest, Patrol, Black list, Duress
    Alarm Function Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
    Period Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period
    Interface
    To Master Controller CAN H, CAN L
    To Reader Wiegand / RS485
    General
    RTC Yes
    Power Supply DC 12V / 500mA
    Operating Temperature -30°C to +60°C
    Working Humidity ≤95%
    Dimensions (W × D × H) 116.0 mm × 210.0 mm × 51.2 mm
    Weight 0.5 kg
    Working Environment Indoor
    Certificates
    CE Yes
    FCC Yes

    Datasheet

    ASC2102B-T

    pdf11/7/2020

    Kullanım Kılavuzu

    ASC2102B-T

    pdf11/7/2020

    Teknik Çizim

    ASC2102B-T

    pdf11/7/2020

    ASC2102B-T

    pdf11/7/2020

    Fotoğraf

    ASC2102B-T

    png11/7/2020

    ASC2102B-T

    png11/7/2020
