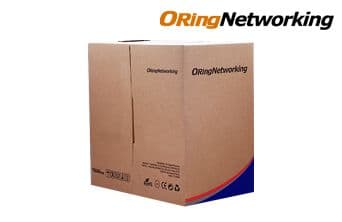

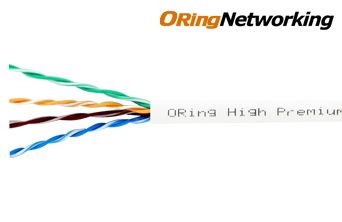

U/UTP CAT5e 24AWG LSZH Network Cable 305m
Stock Code: RW-U0501WH
• ANSI/TIA/EIA, ISO/IEC, ve CENELEC EN standartlarına göre üretilmiştir
• ANSI/TIA 568-C2 standartlarına uygundur
• ISO/IEC 11801 Class D+2nd Edition CENELEC EN 50173-1 standartlarına uygundur
• IEC 61156-5, CENELEC EN 50288-3-1standartlarına uygundur
• Flame retardance IEC 60332-1-2 standartlarına uygundur
• LSZH (Low Smoke Zero Halogen)
• 10Base-T, 100Base-TX Fast Ethernet
• 1000 Base-TX Gigabit Ethernet
• (IEEE 802.3) 100 VG – AnyLAN
• (IEEE802.12)155/622 Mbps ATM
• 100MHz Broadband Video
• Voice, T1, ISDN
• Beyaz (RAL9010)
• 305mt
''ORing Networking yapısal kablolama ürünleri Ömür Boyu Garantilidir.''
| Category 5, 5e, 6 & 7 Cable Comparison | |||||
| CAT5 | CAT5e | CAT6 | CAT6a | CAT7 (Proposed) | |
| Frequency | 100 MHz | 100 MHz | 250 MHz | 500 MHz | 600 MHz |
| Attenuation (min. at 100 MHz) | 22 dB | 22 dB | 19.8 dB | -- | 20.8 dB |
| Characteristic Impedance | 100 ohms = 15% | 100 ohms = 15% | 100 ohms = 15% | -- | 100 ohms = 15% |
| NEXT (min. at 100 MHz) | 32.3 dB | 35.3 dB | 44.3 dB | 27.9 dB | 62.1 dB |
| PS-NEXT (min. at 100 MHz) | NA | 32.3 dB | 42.3 dB | -- | 59.1 dB |
| EL-FEXT (min. at 100 MHz) | NA | 23.8 dB | 27.8 dB | 9.3 dB | (not yet specified) |
| PS-ELFEXT (min. at 100 MHz) | NA | 20.8 dB | 24.8 dB | -- | (not yet specified) |
| PS-ANEXT (min. at 500 MHz) | -- | -- | -- | 49.5 dB | -- |
| PS-AELFEXT (min. at 500 MHz) | 16 dB | 20.1 dB | 20.1 dB | 23.0 dB | 14.1 dB |
| Return Loss (min. at 100 MHz) | 16 dB | 20.1 dB | 20.1 dB | 8.0 dB | 14.1 dB |
| Delay Skew (max. per 100m) | NA | 45 ns | 45 ns | -- | 20 ns |
| Networks Supported | 100BASE-T | 1000BASE-T | 1000BASE-TX | 10GBASE | (not yet specified) |
