Routes the picture of 8 computers to 4 monitors and selects channels from the RS232 port.

It connects 8 computers to 4 monitors and routes the requested source to each monitor. It selects the device channels by command over the RS232 port. The 350 MHz bandwidth and 1920x1440 resolution support carry the analog video signal cleanly.

8x4Input / output layout

350 MHzVideo bandwidth

1920x1440Resolution

65-85 mTransmission distance

RS232Control interface

Key features

8 inputs, 4 outputsShows the picture of 8 computers on a single monitor or on 4 monitors.

RS232 controlSelects the device channels by command over the RS232 port.

350 MHz bandwidthCarries high-resolution analog video without attenuation.

1920x1440 resolutionDelivers a detailed, sharp picture on wide displays.

65-85 m reachCarries the picture up to 65-85 m between source and monitor.

PC and DVR compatibilityWorks with PC and DVR video outputs and cuts the need for extra monitors.

Technical Specifications

Frequency

350 MHz

Control

Channel control via RS232 port

Resolution

1920x1440

Distance

65-85 m video transmission

Description

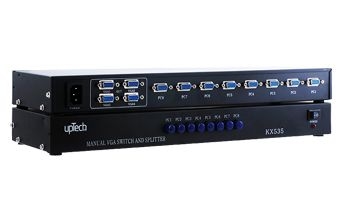

The 8-Port VGA Switch is manually operated and designed to display 8 PCs on one or 4 monitors. Channel control is available via RS232 port. Compatible with PC and DVR devices, it eliminates the need for extra monitors at low cost. Supports 1920x1440 resolution for high-quality video. Ideal for transmitting multiple high-quality VGA, XGA, QXGA, SVGA, or Multisync video signals.
