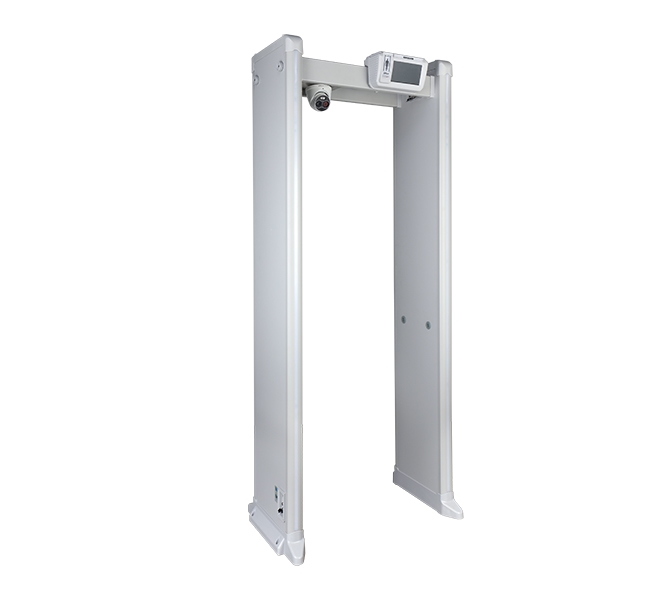

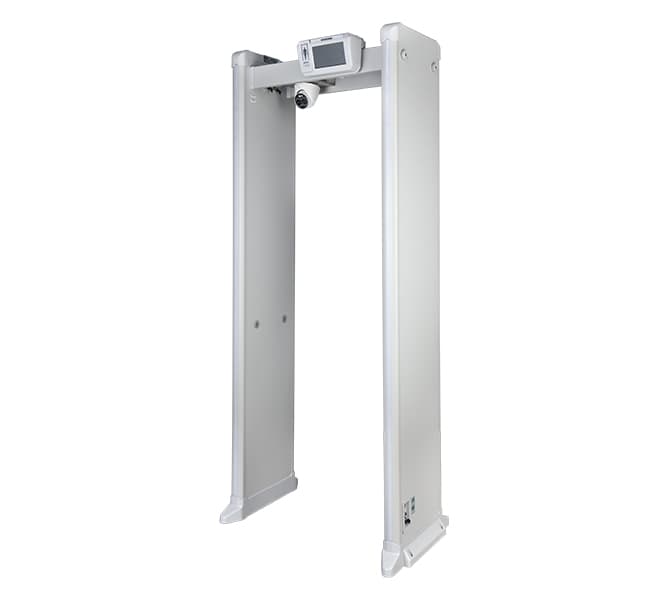

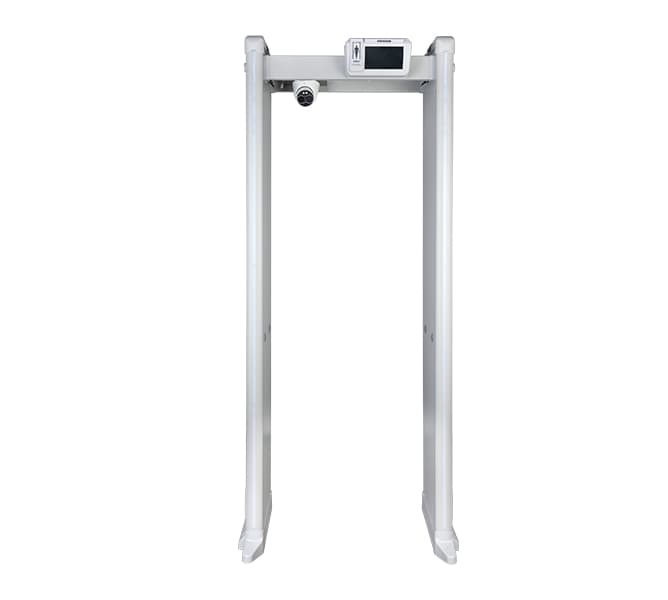

Combines metal screening and body temperature measurement in one gate

The gate marks metal by zone across an 18-zone scanning area while the thermal camera on it monitors body temperature. A 256 × 192 uncooled VOx detector measures at 50 mK thermal sensitivity. A 4 MP visible sensor records the same scene in color.

18Zones

256 × 192Thermal Resolution

50 mKThermal Sensitivity

2336 × 1752Visible Resolution

IP67Camera Protection Grade

23 WMax. Power Consumption

Key features

18zones

Located metal detection

Marks the alarm zone on a human-shaped indicator.

50mK

Sensitive thermal reading

The uncooled VOx detector separates small temperature differences.

30m

Vision in the dark

IR illumination keeps the visible camera working at unlit entrances.

100frequencies

Interference control

Changes the working frequency where gates stand side by side.

16custom scenarios

Site-specific tuning

Stores custom setting sets alongside the 72 presets.

256GB

Edge recording

A micro SD card keeps camera footage on the device.

IN DAILY USE

Sound and light warningA temperature alarm triggers the strobe light and audio prompt together.

Network managementOperators monitor settings and counters remotely.

Simple installationModular panels and an aviation power plug shorten assembly and teardown.

Body temperature measurement serves preliminary screening and does not replace medical diagnosis.

General
Overall Exterior Size	2210 mm × 928 mm × 572 mm (87.0" × 36.5" × 22.5")
Passageway Interior Size	1950 mm × 714 mm × 572 mm (76.8" × 28.1" × 22.5")
Packing Size	2409 mm × 868 mm × 304 mm (94.8" × 34.2" × 12.0")
Net Weight	45 kg (99.2 lb)
Gross Weight	52 kg (with camera)
Operating Voltage	12 V, 100-240 V AC (power adapter included)
Max Power Consumption	23 W
Standby Power Consumption	10 W
Operating Temperature	–20°C to +65°C (–4°F to +149°F)
Operating Humidity	0%–95%
Storage Temperature	–20°C to +70°C (–4°F to +158°F)
Storage Humidity	0–95% RH
Working Frequency	1–100 frequencies
Ports
Bottom Panel Port	Aviation power connector, 1 on each side
Bottom Panel Network Port	RJ-45, 1 on each side
Certification
Certifications	GB15210-2018 IEC 60068-2-1 IEC 60068-2-2 CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Camera Technical Specification
Thermal
Detector Type	Vanadium Oxide Uncooled FPA
Max. Resolution	256 × 192
Pixel Pitch	12 µm
Spectral Range	8 µm–14 µm
Thermal Sensitivity (NETD)	< 50 mK (@f/1.0, 25Hz, 300K)
Focal Length	3.5 mm
Field of View	H: 50.6°, V: 37.8°
Close Focus Distance	0.5 m (1.64 ft)
Aperture	F1.0
Digital Detail Enhancement (DDE)	Yes
Digital Zoom	16×
AGC	Auto; manual
Noise Reduction	2D NR; 3D NR
Image Flip	90°; 180°; 270°
Color Palettes	18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)
Visible
Image Sensor	1/2.7" CMOS
Max. Resolution	2336 × 1752
Pixel	4MP
Electronic Shutter Speed	1/30000 s–1 s
Min. Illumination	Color: 0.05 Lux; Black & white: 0.005 Lux; 0 Lux (IR on)
IR Illumination Distance	≥ 30 m (98.43 ft)
IR Illuminator On/Off Control	Auto; manual
Focal Length	4 mm
Aperture	F1.6
Field of View	H: 71.2° V: 52° D: 92.6°
Focus Control	Fixed
Close Focus Distance	1.0 m (3.28 ft)
Day/Night	Auto (ICR); Color and B/W
BLC	Yes
WDR	DWDR
HLC	Yes
White Balance	Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural
AGC	Auto; manual
Noise Reduction	2D NR; 3D NR
S/N Ratio	≥ 55 dB
Region of Interest (RoI)	Yes
Image Flip	90°; 180°; 270°
Exposure Compensation	Yes
Intelligence
General Intelligence	Tripwire; intrusion
Advanced Intelligence	Fire detection & alarm Cold & hot spot trace Human & vehicle classification Smoking detection Call detection
Video and Audio
Video Compression	H.265/H.264M/H.264H/H.264B/MJEPG
Resolution	Thermal: Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/VGA (640 × 480)/256 × 192, 1280 × 960 by default; Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by default Visual: Main Stream: 2336 × 1752/1080p (1920 × 1080)/720p (1280 × 720)/D1 (704 × 576), 2336 × 1752 by default; Sub Stream: 720p (1280 × 720)/D1 (704 × 576)/CIF (352 × 288), 352 × 288 by default
Frame Rate	Thermal 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default Visual 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression	G.711a; G.711mu; PCM
Network
Protocol	HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Edge Storage	Micro SD card (256 G)
Interoperability	ONVIF; CGI
Browser	IE: IE8 and later, and explorer with IE core; Google: 42 and earlier; Firefox: 42 and earlier
User/Host	10
Security	Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
Camera Certification
Certifications	CE: EN55032:2015; EN61000-3-2:2014 FCC: CFR 47 FCC Part 15 subpart B; ANSI C63.4-2014
Port
Network	1 × 10M/100M Ethernet port (RJ-45)
RS-485	1 pair
Power
Power Supply	12V DC±20%/PoE
Power Consumption	Basic: < 6.5 W (LED off) Max: < 13 W (LED on, heater on)
Environment
Operating Temperature	–30°C to +60°C (–22°F to +140°F)
Storage Temperature	–30°C to +70°C (–22°F to +158°F)
Operating Humidity	≤ 95%
Protection	IP67, anti-surge 6 kV, anti-electrostatic 6 kV (touched by objects), anti-electrostatic 8 kV (air)
Structure
Product Dimensions	122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")
Packaging Dimensions	155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")
Net Weight	≤ 0.85 kg (1.87 lb)
Gross Weight	≤ 1 kg (2.20 lb)

General

Overall Exterior Size

2210 mm × 928 mm × 572 mm (87.0" × 36.5" × 22.5")

Passageway Interior Size

1950 mm × 714 mm × 572 mm (76.8" × 28.1" × 22.5")

Packing Size

2409 mm × 868 mm × 304 mm (94.8" × 34.2" × 12.0")

Net Weight

45 kg (99.2 lb)

Gross Weight

52 kg (with camera)

Operating Voltage

12 V, 100-240 V AC (power adapter included)

Max Power Consumption

23 W

Standby Power Consumption

10 W

Operating Temperature

–20°C to +65°C (–4°F to +149°F)

Operating Humidity

0%–95%

Storage Temperature

–20°C to +70°C (–4°F to +158°F)

Storage Humidity

0–95% RH

Working Frequency

1–100 frequencies

Ports

Bottom Panel Port

Aviation power connector, 1 on each side

Bottom Panel Network Port

RJ-45, 1 on each side

Certification

Certifications

GB15210-2018
IEC 60068-2-1
IEC 60068-2-2
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Camera Technical Specification

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 µm

Spectral Range

8 µm–14 µm

Thermal Sensitivity (NETD)

< 50 mK (@f/1.0, 25Hz, 300K)

Focal Length

3.5 mm

Field of View

H: 50.6°, V: 37.8°

Close Focus Distance

0.5 m (1.64 ft)

Aperture

F1.0

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

16×

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)

Visible

Image Sensor

1/2.7" CMOS

Max. Resolution

2336 × 1752

Pixel

4MP

Electronic Shutter Speed

1/30000 s–1 s

Min. Illumination

Color: 0.05 Lux; Black & white: 0.005 Lux; 0 Lux (IR on)

IR Illumination Distance

≥ 30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; manual

Focal Length

4 mm

Aperture

F1.6

Field of View

H: 71.2°
V: 52°
D: 92.6°

Focus Control

Fixed

Close Focus Distance

1.0 m (3.28 ft)

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; intrusion

Advanced Intelligence

Fire detection & alarm
Cold & hot spot trace
Human & vehicle classification
Smoking detection
Call detection

Video and Audio

Video Compression

H.265/H.264M/H.264H/H.264B/MJEPG

Resolution

Thermal:
Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/VGA (640 × 480)/256 × 192, 1280 × 960 by default; Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by default
Visual:
Main Stream: 2336 × 1752/1080p (1920 × 1080)/720p (1280 × 720)/D1 (704 × 576), 2336 × 1752 by default; Sub Stream: 720p (1280 × 720)/D1 (704 × 576)/CIF (352 × 288), 352 × 288 by default

Frame Rate

Thermal
50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Visual
50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 G)

Interoperability

ONVIF; CGI

Browser

IE: IE8 and later, and explorer with IE core; Google: 42 and earlier; Firefox: 42 and earlier

User/Host

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Camera Certification

Certifications

CE: EN55032:2015; EN61000-3-2:2014
FCC: CFR 47 FCC Part 15 subpart B; ANSI C63.4-2014

Port

Network

1 × 10M/100M Ethernet port (RJ-45)

RS-485

1 pair

Power

Power Supply

12V DC±20%/PoE

Power Consumption

Basic: < 6.5 W (LED off)
Max: < 13 W (LED on, heater on)

Environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Storage Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP67, anti-surge 6 kV, anti-electrostatic 6 kV (touched by objects), anti-electrostatic 8 kV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)

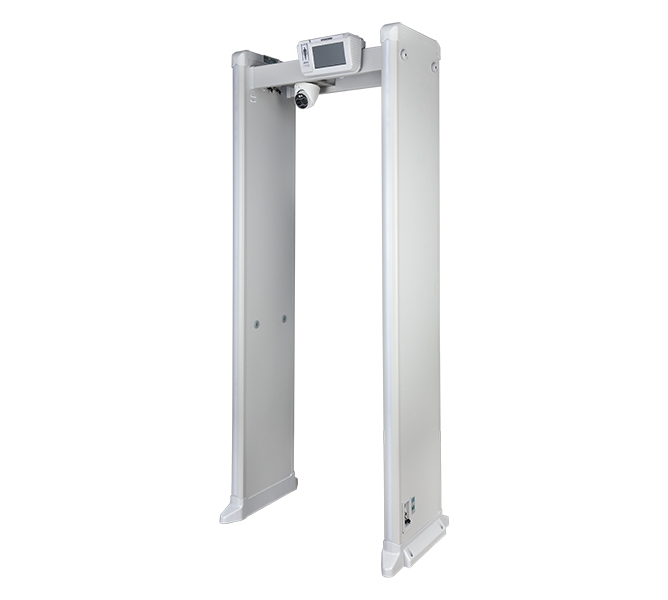

Temperature Monitoring Walk-through Metal Detector
