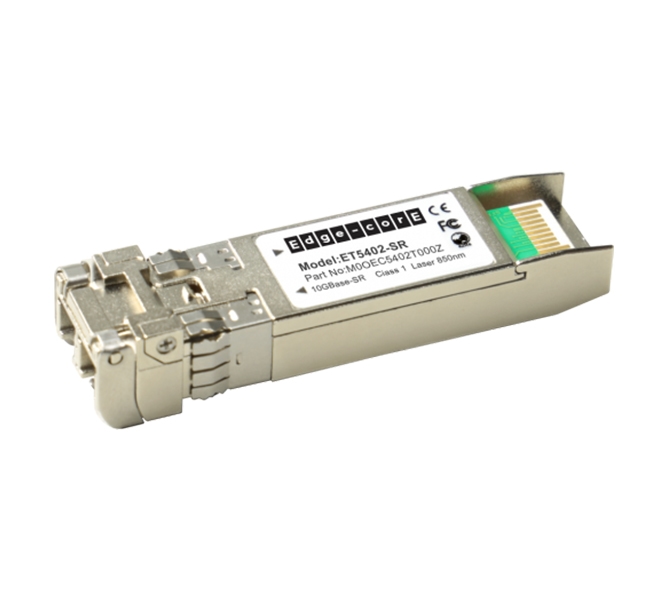

10G SFP+ Transceıver
Edge-Core

10G SFP+ Transceıver

Stok Kodu: ET5402-SR

The Edgecore pluggable optical modules provide fiber and copper connectivity over our entire range of products. Our optical modules allow a product the flexibility to expand by media type (copper/fiber), speed (FE/GE/10GE) and distance (100m to 80km). The Edgecore also offers SFP, XFP and SFP+ pluggable modules that comply with industry standard networking regulations. This compliance permits Edgecore Networks modules to be used together with any industry standard networking equipment.


  • Varied Distance and Speed - ET5402-SR provides the distance up to 300m (850nm) with 10Gbps
  • Compacted Size Designed - Edgecore's SFP transceiver compacted size also designed for the high port density fiber switch.
  • Standard Compliance - Optical interface compliant to 802.3ae, Class 1 laser safety standard IEC 825 compliant, RoHS compliant
  • Hot Swappable
  • Low Power Consumption
  • Bi-Direction SFP to Double Usage Bandwidth - Bi-direction SFP transceivers can support transmission and received data in single fiber. It can easy to double the bandwidth from dual fiber to single without any reconstruction.
  • Digital Diagnostics Monitoring Interface (DDMI) - This feature gives the end use the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
