System

Main Processor

Intel Quad-core Processor

Memory

16GB, up to 64GB

Operating System

Embedded LINUX

Artificial Intelligence

Face Recognition

32 channel video stream face recognition / 80 channel picture stream face recognition (with FD camera)

Performance

80 face pictrues /sec processing (modeling and comparing)

Metadata

Sturctured data of gender, age, expression, glasses, moustache, mouth mask information.

Stranger Mode

Detect strangers' faces(not in device's face database).Similarity threshold can be set manually.

Trigger Events

Buzzer, snapshot, recording, etc.

Search by Image

Up to 10 target face images search at same time. Support similarity threshold set for each target face image.

Database Management

Up to 20 face databases with 100,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.

Database Application

Each database can be applied to video channels independently.

Audio and Video

IP Camera Input

256 Channel

Two-way Talk

1 × 3.5mm audio input, 1 × 3.5mm audio output

Display

Interface

3 HDMI, 1VGA

Resolution

HDMI1/2/3 : 3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720

VGA : 1920 × 1080 , 1280 × 1024,

1280 × 720

Decoding Capability

24-ch@1080P(30fps)

Multi-screen Display

Up to 36 split for each screen

OSD

Camera title, Time, Motion detection, Recording

Recording

Bandwidth

450Mbps

Compression

H.265/H.264/MJPEG/MPEG4

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, etc.

Record Mode

Schedule (Continuous, Event)

Video Detection and Alarm

Trigger Events

Recording, Snapshot, Buzzer, etc.

Video Detection

Motion Detection, MD Zones: 396 (22 × 18); Tampering

Alarm input

16 Channel

Relay Output

8 Channel

Playback and Backup

Sync Playback

Up to 16ch sync playback, 128Mbps playback bandwidth

Search Mode

Time /Date, Video Detection, Face and Exact Search (accurate to second)

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

AXIS, Panasonic, Sony, etc.

Network

Interface

4 RJ-45 Ports (10/100/1000Mbps)

Optional Interface

4 Giga Optical Fiber Interface

Network Port Mode

Independent Ethernet Ports, Load Balance, Fault-Tolerance, Link Aggregation

Network Function

HTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search (Support Dahua IP camera, DVR, etc.), P2P

Interoperability

ONVIF 2.4, SDK

Storage

Internal HDD

24 SAS/SATA HDDs, Up to 10 TB capacity for each HDD, Independent HDD bracket, hot-swap

HDD Mode

Single, Raid 0/1/5/6/10(Enterprise-level HDDs are recommended), Support Global HDD Hot-spare

eSATA

1 eSATA Port (Please contact technical engineer to confirm the compatible device)

SAS

2 SAS3.0 Ports

Auxiliary Interface

Front Cover

Support Hot-swap, 7-inch HD LCD (1920 × 1080 , 1280 × 1024)

USB

4 USB Ports (2 USB 2.0 , 2 USB 3.0 )

RS232

1 Port, for PC Communication

RS485

1 Port

Electrical

Power Supply

AC100V ~ 240V, 50 ~ 60 Hz, Hot-swap, Redundant

Power Consumption

<130W (Without HDD)

Fan

Dual-ball bearing fans, Hot-swap

Environmental

Operating Conditions

0°C ~ +45°C (+32°F ~ +113°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

4U, 482.6mm x 543.4mm x 175mm (19" x 21.39" x 6.89")

Net Weight

20kg (44.09 lb) (without HDD)

Installation

Standard 19-inch Rack-mounted

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL 60950-1

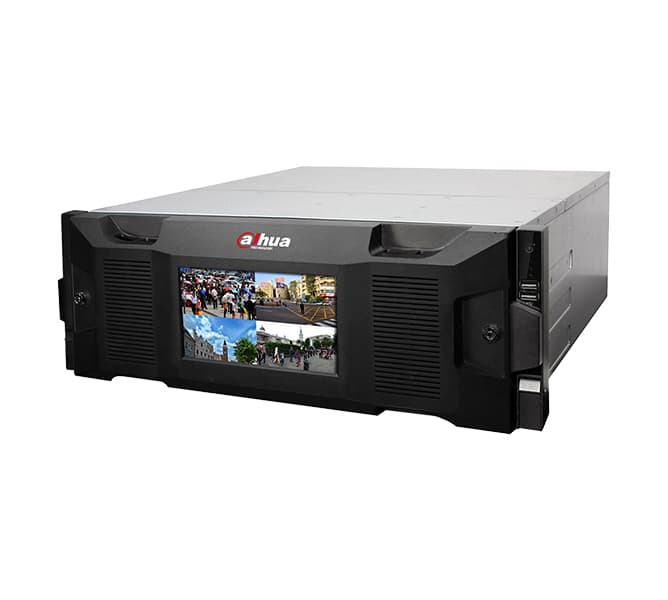

4U 24HDD AI NVR

Benzer Ürünler

4U 24HDD AI NVR

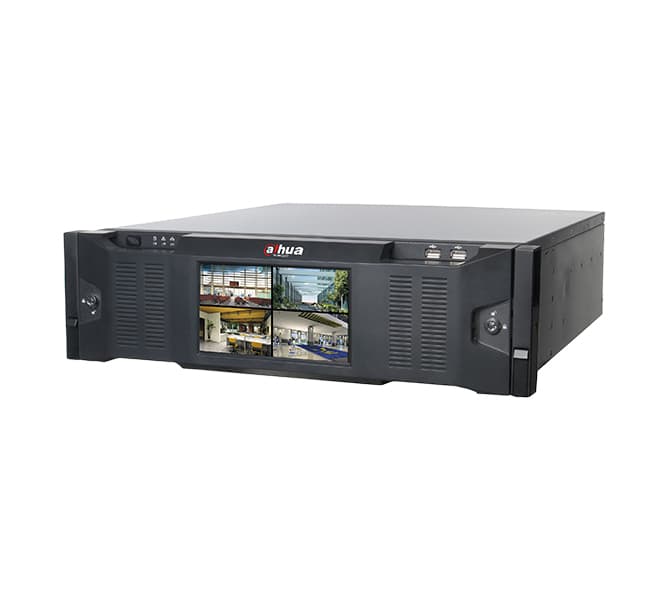

3U 16HDD AI NVR
