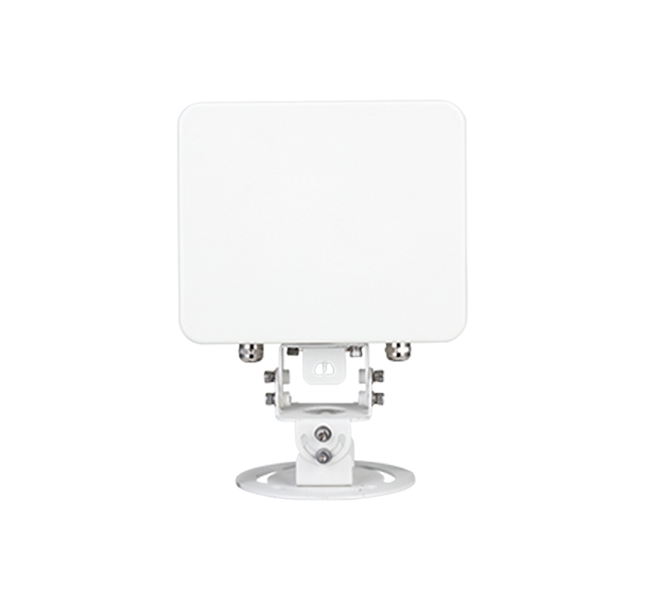

Stok Kodu: ITARD-024MA-H
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lane Coverage |
1–4 lane(s) (3.75 m (12.30 ft) standard lane) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed Measurement Range |
5 km/h–350 km/h |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed Measurement Accuracy |
Simulated Speed Measurement Error Range: ±2 km/h |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detection Target |
Up to 32 vehicles |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum Detection Distance |
100 m (328.08 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mininum Detection Distance |
2 m (6.56 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Height |
5 m–10 m (16.40 ft–32.80 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Position Detection Accuracy |
< ±2.5% or < ±0.5 m (1.64 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overspeed Capture Rate |
≥ 95% (when traffic is smooth) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lane Recognition Rate |
≥ 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency |
24.150 GHz ± 45 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Response Time |
≤ 50 ms |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transmit Power (EIRP) |
20 dBm (100 mW) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Modulation |
FMCW + Monopulse + Doppler, 3 transceiving antennas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bandwidth |
250 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Radar Beam Angle |
Horizontal: –6° to +6° (–3 dB) Vertical: –5° to +5° (–3 dB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage |
12V DC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Average Power Consumption |
< 3.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-40 °C to +85 °C (–40 °F to +185 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Relative Humidity |
10%RH–90%RH, no condensation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
155 mm × 130 mm × 54.9 mm (6.10'' × 5.12'' × 2.16'') (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
1 kg (2.20 lb) |
