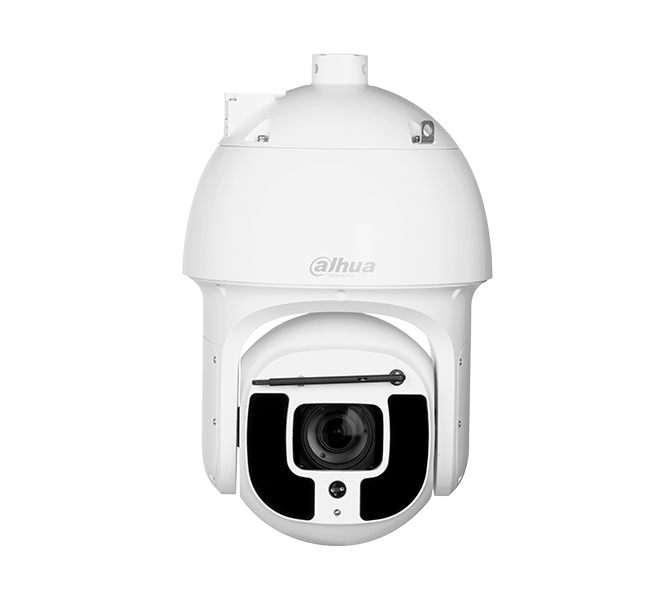

Artikelnummer: SD10A248WA-HNF
| Camera | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/1.8" CMOS | ||||||||
| Pixel | 2.42MP | ||||||||
| Max. Resolution | 1920 (H) × 1080 (V) | ||||||||
| ROM | 8GB | ||||||||
| RAM | 2GB | ||||||||
| Electronic Shutter Speed | 1/3 s – 1/100000 s | ||||||||
| Scanning System | Progressive | ||||||||
| Min. Illumination | Color: 0.001Lux@F1.4 B/W: 0.0001Lux@F1.4 0Lux (IR light on) |
||||||||
| Illumination Distance | 450 m (1476.38 ft) | ||||||||
| Illuminator On/Off Control | Zoom Prio/Manual/SmartIR | ||||||||
| Illuminator Number | 10 | ||||||||
| Wiper | Smart Wiper | ||||||||
| Lens | |||||||||
| Focal Length | 5.7 mm – 275 mm | ||||||||
| Max. Aperture | F1.4 – F4.5 | ||||||||
| Field of View | H: 64.6° – 1.5°; V: 35.6° – 1.0°; D: 68.5° – 2.0° | ||||||||
| Optical Zoom | 48x | ||||||||
| Focus Control | Auto/Semi-Auto/Manual | ||||||||
| Close Focus Distance | 0.01 m – 1.5 m (0.03 ft – 4.92 ft) | ||||||||
| Iris Control | Auto/Manual | ||||||||
| DORI Distance |
|
||||||||
| PTZ | |||||||||
| Pan/Tilt Range | Pan: 0° – 360° (endless) Tilt: -30° – +90° (auto-flip 180°) |
||||||||
| Manual Control Speed | Pan: 0.1°/s – 200°/s Tilt: 0.1°/s – 120°/s |
||||||||
| Preset Speed | Pan: 240°/s Tilt: 200°/s |
||||||||
| Presets | 300 | ||||||||
| Tour | 8 (up to 32 presets per tour) | ||||||||
| Pattern | 5 | ||||||||
| Scan | 5 | ||||||||
| Speed Adjustment | Support | ||||||||
| Power-off Memory | Support | ||||||||
| Idle Motion | Preset/Tour/Pattern/Scanning | ||||||||
| Protocol | DH-SD Pelco-P/D (auto recognition) | ||||||||
| General Intelligence | |||||||||
| Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly | ||||||||
| IVS | Object Abandoned/Missing | ||||||||
| Artificial Intelligence | |||||||||
| Video Metadata | Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction. | ||||||||
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. | ||||||||
| Auto Tracking | Support | ||||||||
| Video | |||||||||
| Compression | H.265+/H.265/H.264+/H.264/MJPEG (sub stream) | ||||||||
| Streaming Capability | 3 streams | ||||||||
| Resolution | 1080P (1920 × 1080); 1.3 M (1280 × 960); 720P (1280 × 720); D1 (704 × 576); CIF (352 × 288) |
||||||||
| Frame Rate | Main stream: 1080p/1.3 M/720p (1 – 50/60fps) Sub stream 1: D1/CIF (1 – 25/30fps) Sub stream 2: 1080p/1.3 M/720p (1 – 25/30fps) |
||||||||
| Bit Rate Control | Variable Bit Rate/Constant Bit Rate | ||||||||
| Bit Rate | H.264: 32 kbps – 8192 kbps H.265: 32 kbps – 8192 kbps |
||||||||
| Day/Night | Auto (ICR)/Color/B/W | ||||||||
| BLC | Support | ||||||||
| WDR | 120 dB | ||||||||
| HLC | Support | ||||||||
| White Balance | Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp | ||||||||
| Gain Control | Auto/Manual | ||||||||
| Noise Reduction | 2D/3D | ||||||||
| Motion Detection | Support | ||||||||
| Region of Interest (RoI) | Support | ||||||||
| Image Stabilization | Electronic | ||||||||
| Defog | Optical | ||||||||
| Digital Zoom | 16x | ||||||||
| Flip | 180° | ||||||||
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view | ||||||||
| Audio | |||||||||
| Compression | G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2-Layer2 | ||||||||
| Network | |||||||||
| Ethernet | (built-in RJ-45 port, support 10 M/100 M network data) | ||||||||
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP | ||||||||
| Interoperability | ONVIF Profile S&G&T; CGI | ||||||||
| Streaming Method | Unicast/Multicast | ||||||||
| User/Host | 20 | ||||||||
| Storage | FTP; Micro SD card (256 G) | ||||||||
| Browser | IE7 and newer versions, Chrome 45 and newer versions, Firefox 52 and earlier versions, Safari (no version restrictions) | ||||||||
| Management Software | Smart PSS, DSS, DMSS | ||||||||
| Mobile Phone | IOS/Android | ||||||||
| Certification | |||||||||
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
||||||||
| Port | |||||||||
| Video | 1 port (BNC, 1.0V [p-p], 75Ω) | ||||||||
| RS-485 | 1 | ||||||||
| Audio Input | 1 | ||||||||
| Audio Output | 1 | ||||||||
| Alarm I/O | 7/2 | ||||||||
| Power | |||||||||
| Power Supply | DC36V/2.23A Hi-PoE |
||||||||
| Power Consumption | 19W 42W (PTZ Pan/Tilt, IR light on, wiper on) |
||||||||
| Environment | |||||||||
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) | ||||||||
| Operating Humidity | ≤95% | ||||||||
| Protection | IP67; TVS 8000V lightning proof; Surge protection | ||||||||
| Structure | |||||||||
| Casing | Aluminium alloy ADC12 | ||||||||
| Dimensions | Φ300 mm × 527 mm (11.81" × 20.75") | ||||||||
| Net Weight | 13 kg (28.66 lb) | ||||||||
| Gross Weight | 18.2 kg (40.12 lb) | ||||||||
