It keeps color at night and warns with sound and light the moment something happens.

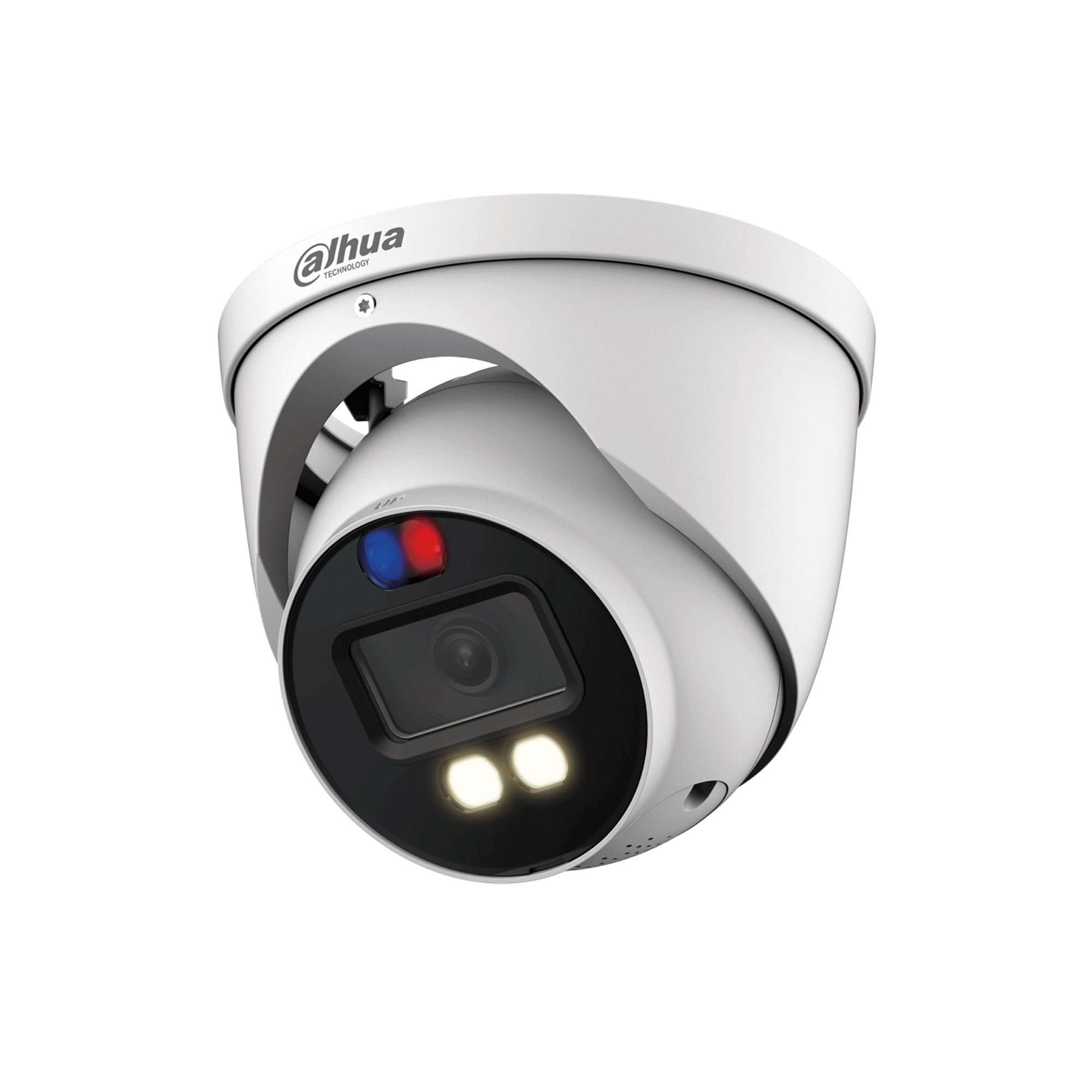

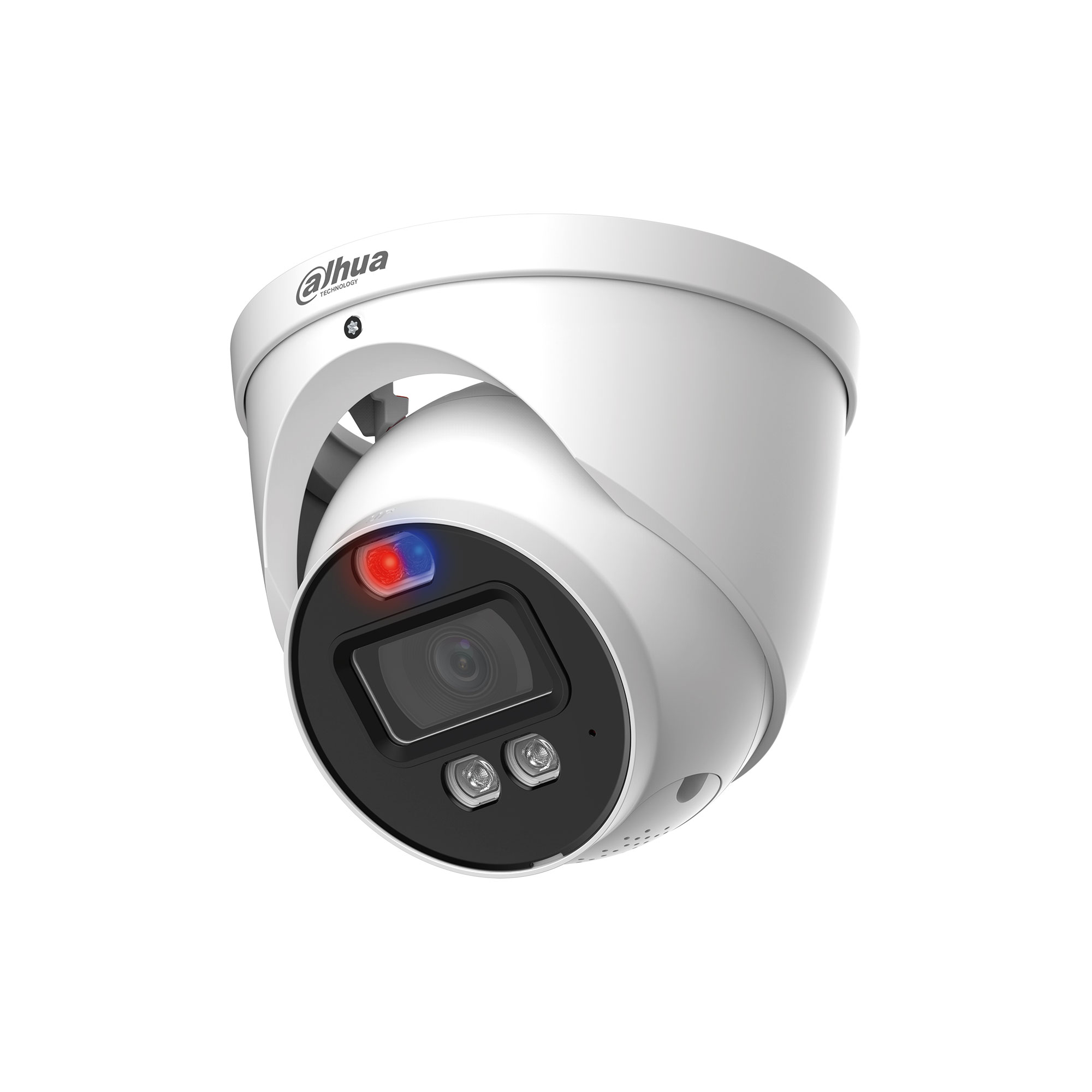

A 2 MP HDCVI camera built around Smart Dual Light. It runs active deterrence with red-blue light, a siren and an alarm output, carries IP67 protection and runs on 12 V DC.

1920 × 1080Max. Resolution

2 MP CMOSSensor

F1.6Maximum Aperture

40 mIllumination distance

130 dBWDR

IP67Protection Grade

Key features

130dB

A readable image in harsh light

True WDR balances bright and dark areas within one frame.

40m

Dual light illumination

The IR and warm light illuminators light the scene up to 40 m.

110dB

Sound deterrence

The camera plays the selected warning at 110 dB, for a duration between 5 s and 60 s.

30fps

Smooth 1080p video

The camera delivers 30 frames per second at 1080p.

0.001lux

Color in the dark

The camera produces a color image at 0.001 lux, and it still sees at 0 lux with the illuminator on.

IN DAILY USE

One cable, four formatsIt switches between CVI, CVBS, AHD and TVI output; a single BNC port carries the link to the recorder.

It records sound tooThe built-in microphone carries ambient audio alongside the picture.

Flexible mountingThe metal body supports wall, ceiling and vertical pole mounting.

The 3.6 mm fixed lens is standard; the 2.8 mm lens is optional.

Camera

Pixel

2 MP

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.001 lux@F1.6 (Color, 30 IRE)
0.0001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR light)
2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 108°; V: 58°; D: 127°
3.6 mm: H: 86°; V: 46°; D: 101°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.29 ft)
3.6 mm: 1.1 m (3.61 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	42.2 m (138.45 ft)	16.9 m (55.45 ft)	8.4 m (27.56 ft)	4.2 m (13.78 ft)
3.6 mm	53.7 m (176.18 ft)	21.5 m (70.54 ft)	10.7 m (35.10 ft)	5.4 m (17.72 ft)

Video

Video Frame Rate

CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
CVBS: PAL: 960 × 576H; NTSC: 960 × 480H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)/Color/B/W

BLC

BLC; HLC; WDR

WDR

130 dB

White Balance

Auto; Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Smart Illumination

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Illuminator

Smart IR&WL; WL Mode; IR Mode

Active Deterrence

Sound Warning

Audio1: alarm
Audio2: No parking here
Audio3: Private land no entry.
Audio4: Warning zone keep off
Audio5: Welcome
Volume: high/medium/low;
duration: 5 s–60 s; 110 dB

Red/Blue Light Warning

Flash: 5 s–60 s; frequency: high/medium/low

Certification

Certifications

CE (EN55032: 2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024: 2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1:2014, EN62368-1:2014+A11: 2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC (-A)

Power

Power Supply

12 V DC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 7.6 W (12 V DC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

Φ122.0 mm × 110.9 mm (Φ4.80" × 4.37")

Packaging Dimensions

165 mm × 165 mm × 138 mm (6.50" × 6.50" × 5.43")

Net Weight

0.69 kg

Gross Weight

0.95 kg

Installation

Wall mount; ceiling mount; vertical pole mount
