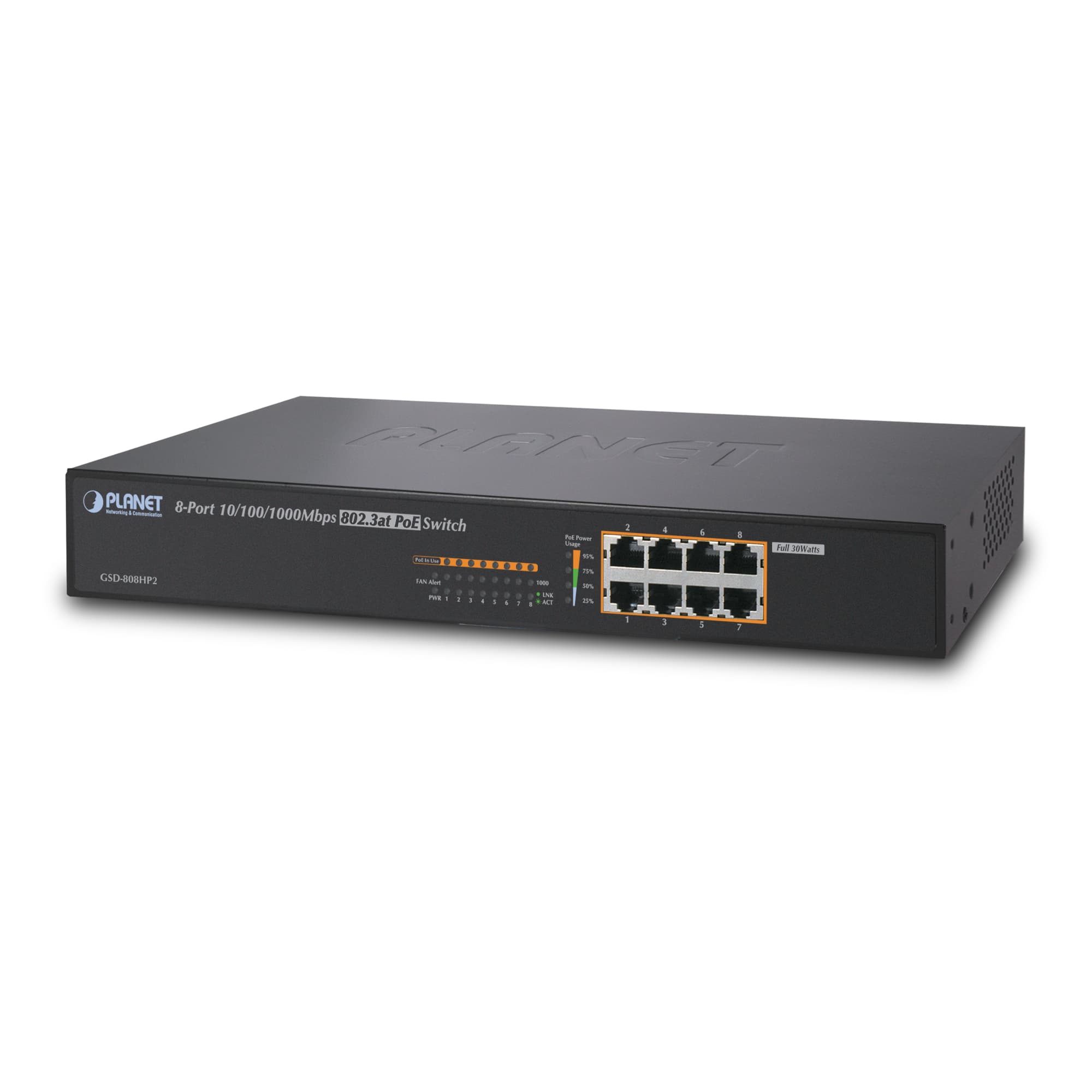

8-Port 10/100/1000 Gigabit Ethernet Switch with 8-Port 802.3at POE+ (240W POE Budget)

8-Port 10/100/1000bps 802.3at PoE Desktop Switch

High Power PoE Switch for Security and Public Service Applications
PLANET GSD-808HP2 IEEE 802.3at protocol PoE Ethernet Switches provide ideal solutions to meet high power PoE demands for network applications at Gigabit transmission level. Each of the 10/100/1000Mbps ports supports IEEE 802.3af and IEEE 802.3at PoE features, and can distribute up to a maximum of 240 watts total power, with up to 30 watts per port. The device is specifically designed to meet the needs of PTZ (Pan, Tilt & Zoom)/Speed Dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN Access points, and devices requiring high power consumption.

Automatic PoE Management
To simplify power management, the GSD-808HP2 implements powerful PoE intelligent management functions.
■ PoE Power Usage Threshold Alarm
■ PoE Power Budget Control
On the left side of the front panel of the GSD-808HP2, there are 2 orange LEDs. These LEDs act as PoE power usage indicators. Numbers 1-4 represent the output sections of PoE ports 1 to 4, and 5-8 represent the output sections of ports 5 to 8. When PoE output reaches 80%, LEDs for ports 1-4 and 5-8 light up, and if it reaches 95%, they blink to alert users. These LED indicators allow users to monitor PoE usage easily and effectively track the status of the GSD-808HP.

Energy Saving
The GSW-2404SF includes the following advanced eco-friendly technologies.

• Power saving mode during idle.

• Intelligent calculation based on cable length.
  The idle power saving mode on the GSD-808HP2 complies with IEEE 802.3az Energy Efficient Ethernet (EEE) and automatically reduces power to unused ports.

Easy Installation & Cable Connection
By transmitting both data and power through one cable unit, GSD-808HP2 eliminates the need for additional electrical outlets in walls, high places, and hard-to-reach areas. Carrying both data and power through the cable reduces installation costs, effort, and required workforce.

All RJ45 copper connection ports of the GSD-808HP2 provide 10/100/1000Mbps connections, and the automatic detection function via RJ45 connectors enables optimal speed detection with Cat 5, 5e, and 6 cables. It also includes standard automatic MDI/MDI-X features, allowing easy plug-and-play connections regardless of cable type, whether straight or crossover cables.

High Power IP Surveillance and Wireless LAN Service in Mass Transit Systems
When applying IEEE 802.3at protocol capabilities on the PoE standard, the GSD-808HP2 can directly power any IEEE 802.3at end device such as PTZ (Pan, Tilt & Zoom) network cameras, Speed Dome IP cameras, color and touch VoIP phones, and multi-channel wireless LAN access points. In addition to wired internet networks, the GSD-808HP supports efficient wireless LAN distribution for transportation stations to provide high-speed internet services over wide areas. By adopting PoE Wireless LAN architecture, authorized personnel in transportation can offer better internet coverage for travelers over wide areas, resulting in cost savings.

Flexible VoIP Deployment in IP Offices
As business environments and spaces expand, the need for additional phone installations can be fulfilled at much lower costs by PoE IP phone systems instead of traditional wired phones. The GSD-808HP2 802.3at protocol desktop switch series helps companies build more efficient and integrated data, voice, and power source networks. PLANET IEEE 802.3af compliant IP phones can be installed without any power cords because they receive power through the standard Ethernet cable from the GSD-808HP2 series. Both PoE IP phones and analog phones can get power over Ethernet cable with the GSD-808HP2. IP phone deployment with the GSD-808HP2 series becomes more reliable and cost-effective, enabling companies to save significant costs during the transition from traditional phone systems to IP phone infrastructure.
