85 Multipin Connector | Nokta Elektronik
›
Audio and Video Products
›
Audio
›
Multipin Connectors
›
85 Multipin Connector
Amphenol

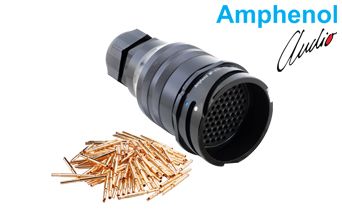

85 Multipin Connector
Artikelnummer: MP-4101-85P
Angebot anfordern
Eigenschaften
Technisch
Downloads
Positions:
85
Current Carrying Capacity:
13A
Housing Material:
Aluminum Alloy / Black
Finish:
Black
IP Rating:
IP67 (when mated)
Termination:
Solder / Crimp “Combo”
Max Wire Gauge:
16AWG - 20AWG
Operating Temperature:
-55°C to +125°C (-67°F to +257°F)
Mating Cycles:
2000
Environmental:
Complies with EU RoHS 2 Directive 2011/65/EU
Application(s):
Audio & Lighting
