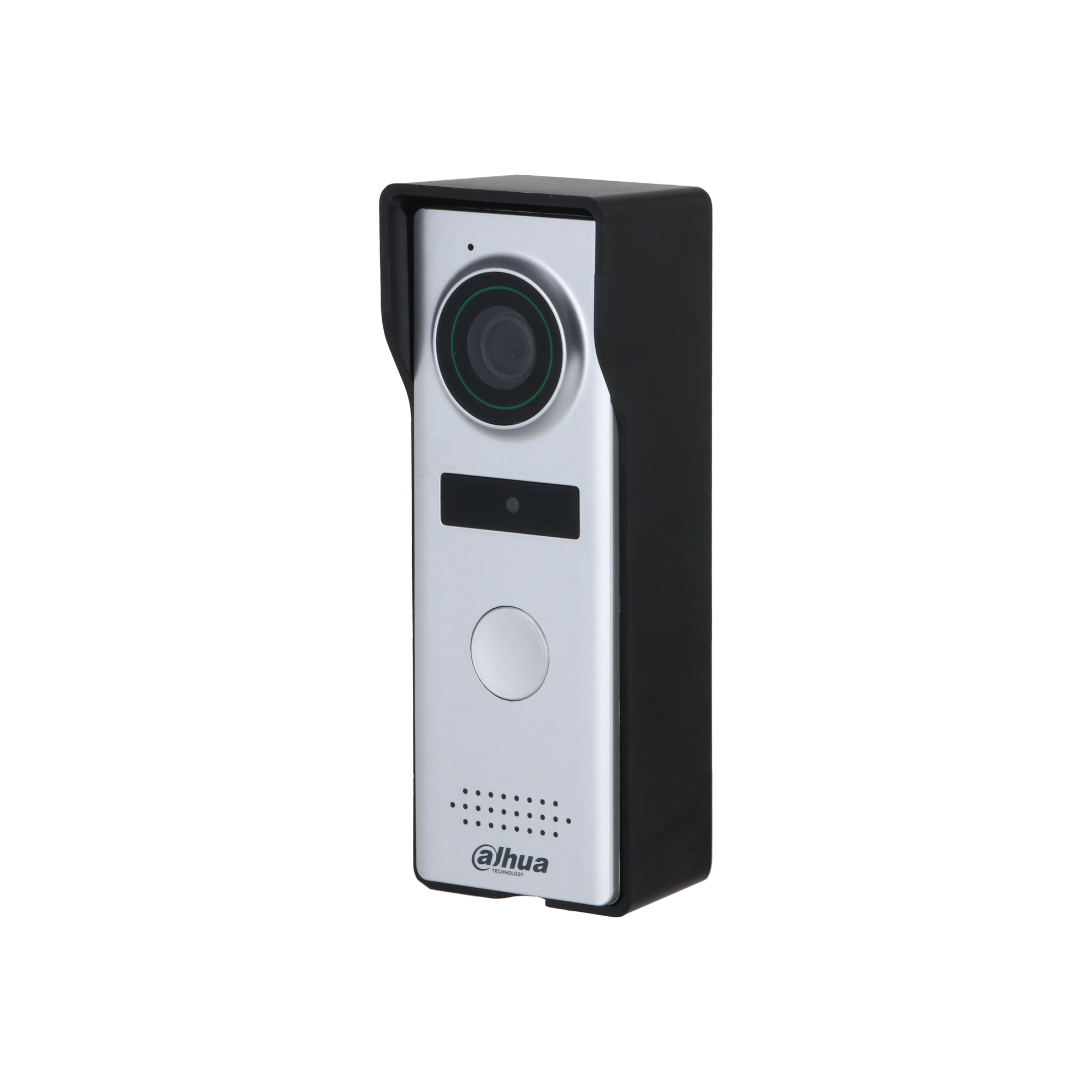

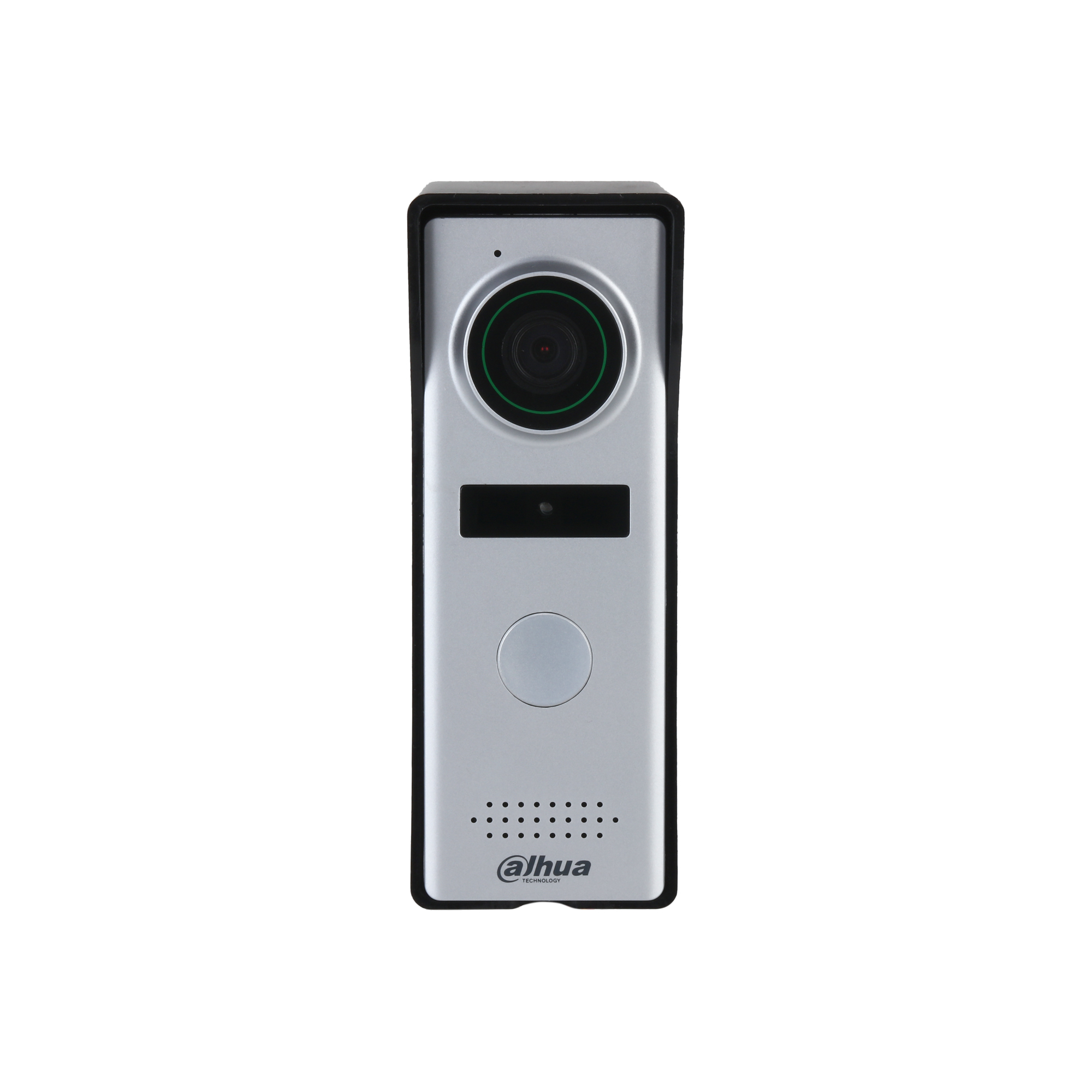

A video door station with a mechanical button for the main entrance

An outdoor unit that joins an analog video intercom set. Its 1.3 MP CMOS camera scans the entrance across 70° horizontally and 40° vertically. The PC + ABS silver casing is IP66 rated and sits on a surface bracket.

1.3 MPImage sensor

70° / 40°Field of view

AnalogCommunication

Indoor monitorPower supply

IP66Protection Grade

Surface mountInstallation

Key features

Video intercomCovers unlocking, voice calls, video calls and volume control.

Image processingDWDR and the automatic ICR switch treat day and night pictures separately.

Ring tonesSwitches between several ring tones.

Controls and portsThe mechanical button starts a call, while an exit button and a door status input sit on the terminal.

Casing and mountingThe PC + ABS casing is silver and ships with a rain cover.

Power and drawIt runs off the indoor monitor, using ≤ 1 W on standby and ≤ 3 W in operation.

System & Video Features

Button Type / Camera

Mechanical / 1.3MP CMOS

Field of View

Horizontal: 70°, Vertical: 40°

WDR / Day-Night

DWDR / Auto IR (ICR) Switch

Communication Mode

Analog

Audio & Interface Features

Audio Interface

1-ch Mic (Pickup distance: 0.5 m) / 1-ch Speaker

Status Indicator

1 Indicator Light (Green: Power on)

Control Ports

1x Exit Button, 1x Door Status Detection

General & Physical Parameters

Casing Material / Color

PC + ABS / Silver

Power Supply / Consumption

Protection / Installation

IP66 / Surface Mount (Rain cover included)

Dimensions / Operating Temperature

131.45 mm × 46.00 mm × 33.80 mm (5.18" × 1.81" × 1.33") / -30°C to +60°C
