Turns one coaxial run into a three-way junction.

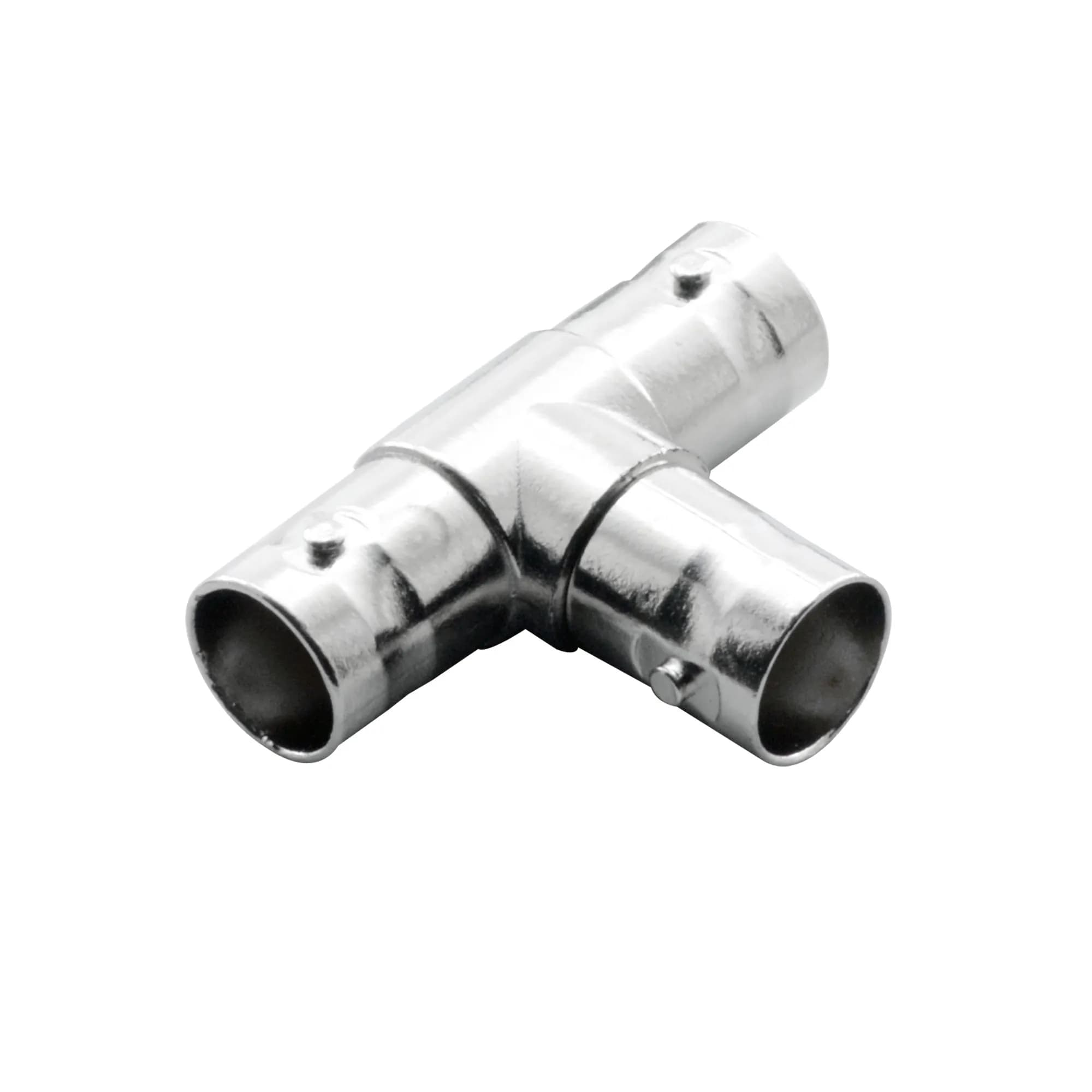

A connector with a BNC female end on all three sides. It spreads the incoming run in two directions or gathers two separate cables in one body, opening a tap in field cabinets and on the test bench. It holds 50 Ω impedance and works from DC to 4.0 GHz.
50 ΩImpedance
0 - 4.0 GHzFrequency Range
1.3 max.VSWR (straight)
0.2 dB @ 3 GHzInsertion Loss
NickelOuter Jacket
FemalePlug Type
Key features
Connection layoutAll three ends are BNC female and accept three male connectors without extra parts.
Frequency bandCarries signal from DC to 4.0 GHz on a 50 Ω line.
Signal integrityInsertion loss stays within 0.2 dB at 3 GHz and straight VSWR within 1.3.
LockingThe two-slot BNC lock holds all three ends in place, and mating or release needs no tools.
