Terminates coaxial runs with a silver plated BNC end.

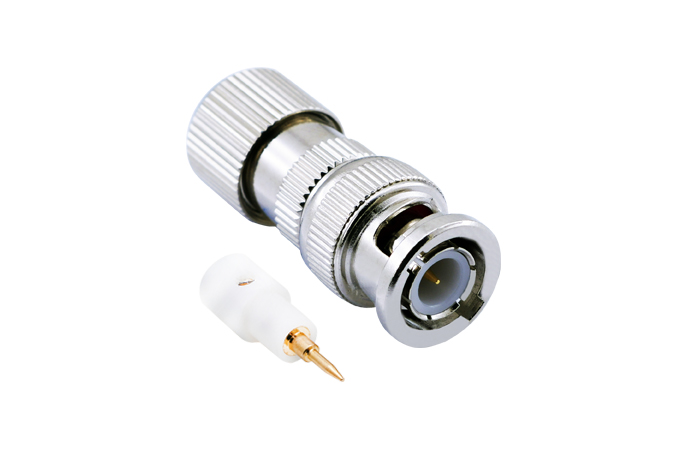

A silver plated screw-on BNC connector for RG58, RG59 and RG6 coaxial cables. It leaves low insertion loss across the 0 - 4.0 GHz band and terminates cable ends on video, audio, data and telecommunication runs.
RG58 · RG59 · RG6Compatible Cables
50 Ω / 75 ΩImpedance
Screw-onTermination Type
SilverBody Plating
0 - 4.0 GHz / 0 - 1.0 GHzFrequency Range
0.2 dB @ 3 GHzInsertion Loss
Key features
Screw lockThe screw coupling locks the connector in place and makes mating and removal easier.
Low insertion lossThe connector leaves 0.2 dB insertion loss at most at 3 GHz.
Low reflectionVSWR reaches 1.3 at most on straight bodies and 1.35 at most on right angle bodies.
Wide frequency bandThe 50 Ω type covers 0 - 4.0 GHz and the 75 Ω type covers 0 - 1.0 GHz.
