Takes the outdoor unit into the wall.

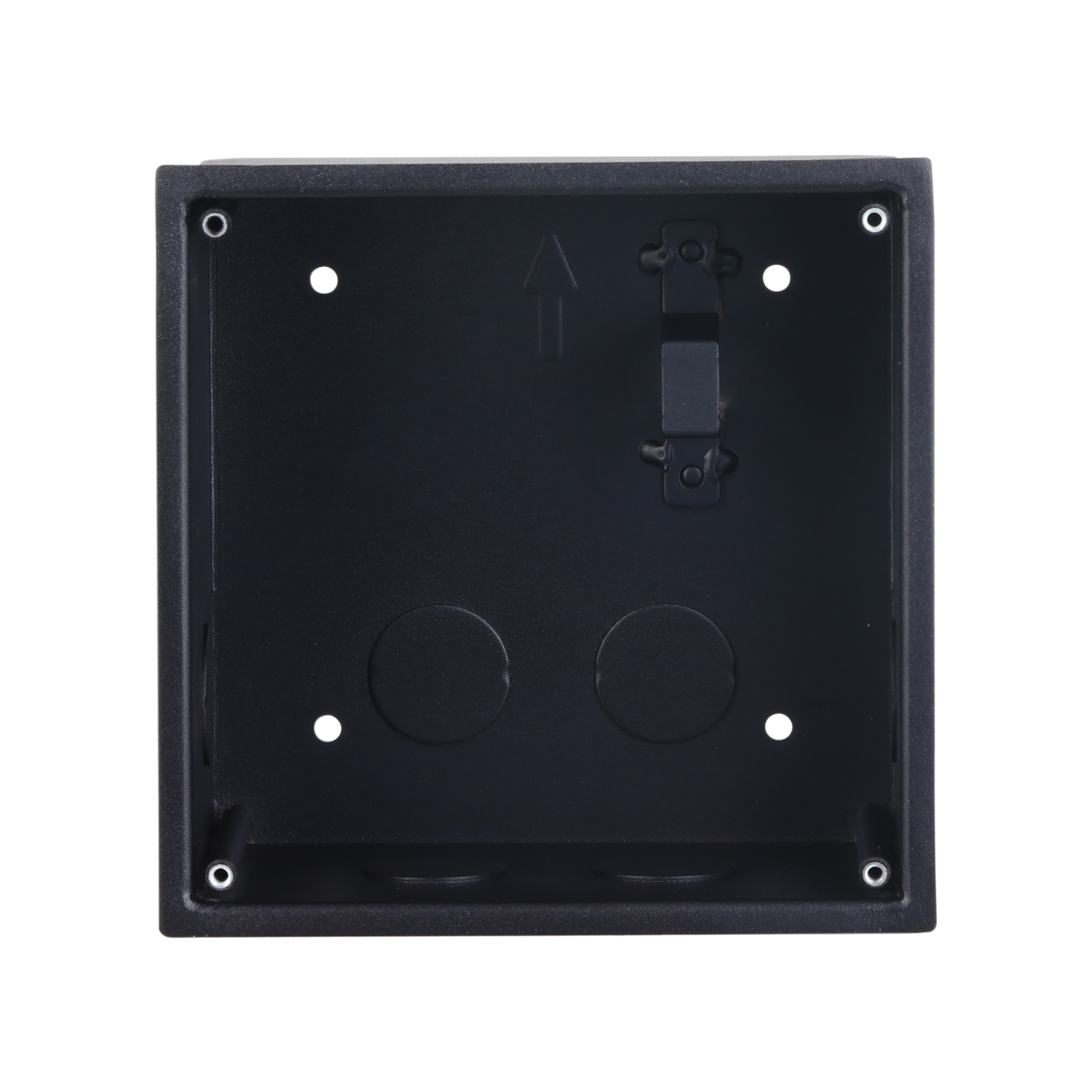

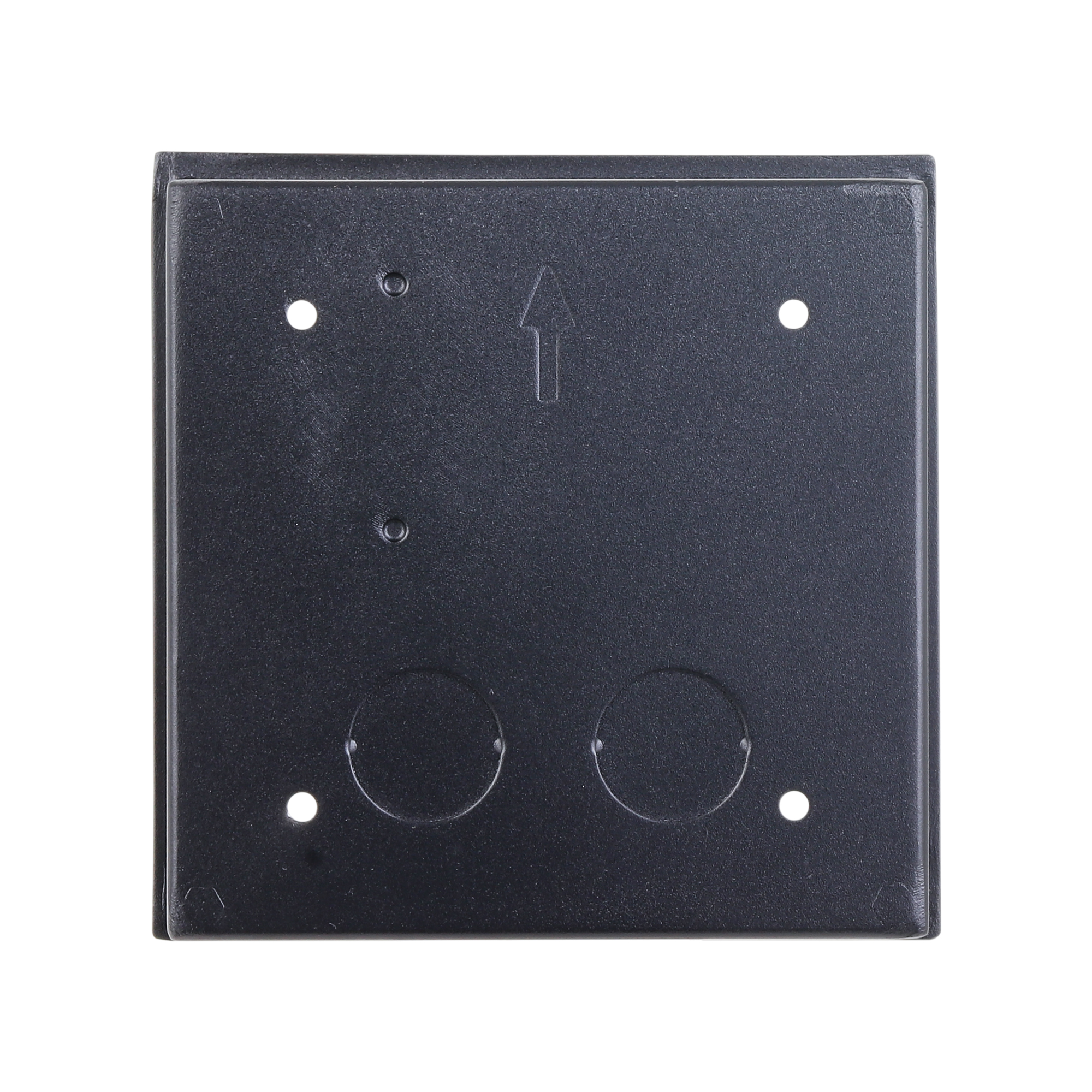

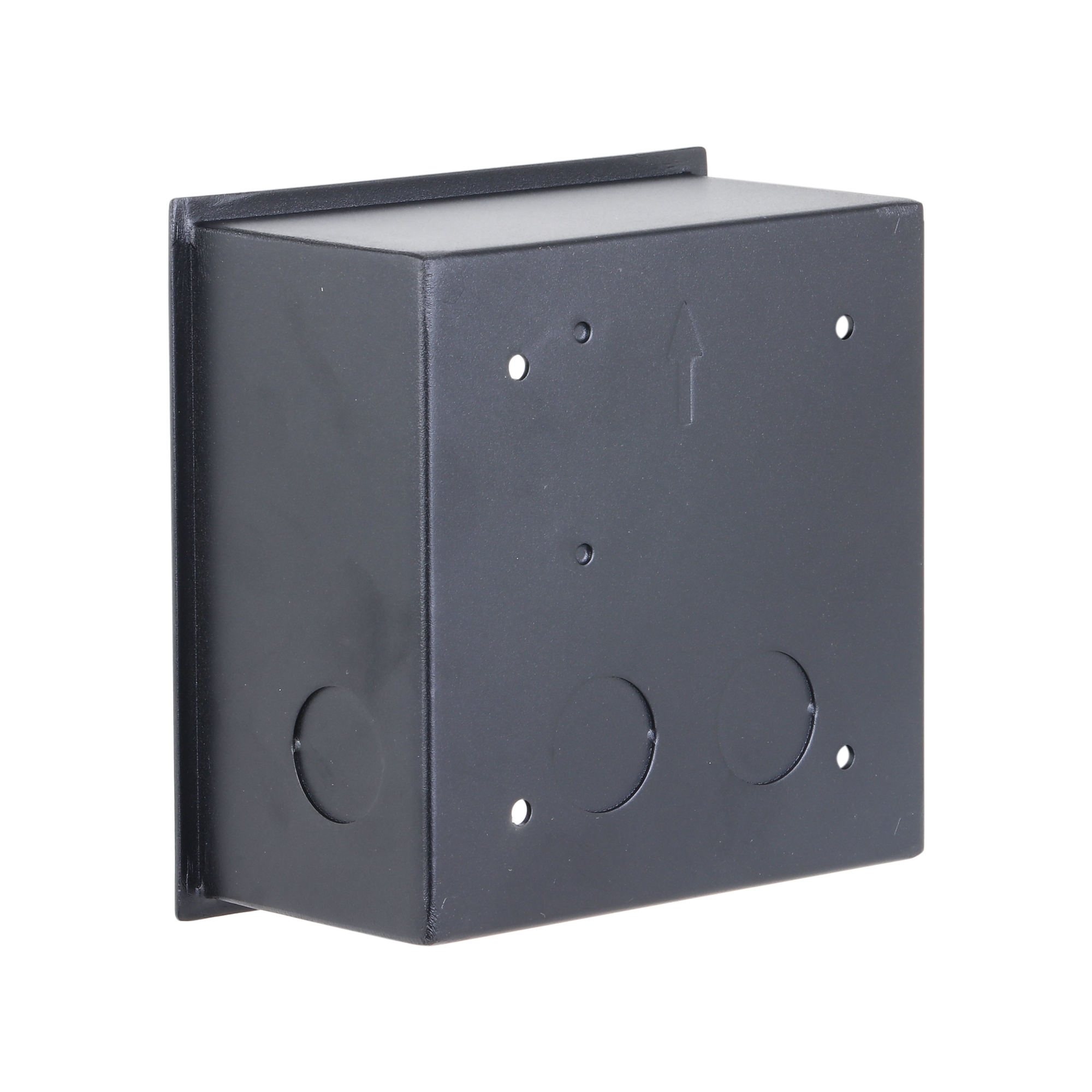

A powder-sprayed aluminum alloy flush mount box. Its 133.0 mm × 133.0 mm body seats inside the wall and serves outdoors.

Aluminum alloyCasing Material

133.0 × 133.0 × 68.0 mmProduct Dimensions

-20 °C ~ +55 °COperating Temperature

0.25 kgNet Weight

Flush mountInstallation Type

BlackAppearance Color

Key features

Material and finishPowder spraying covers the aluminum alloy body and gives the box its black finish.

Dimensions and weightThe box measures 133.0 mm × 133.0 mm × 68.0 mm and weighs 0.25 kg net, 0.37 kg gross.

InstallationFlush mounting seats the box inside the wall and holds the unit within its body.

Operating environmentIt works outdoors from -20 °C to +55 °C.

Storage conditionsStorage runs from 0 °C to +40 °C at 30% to 75% relative humidity.

Technical Specification: Flush Mount Box (Black)
Surface Finish / Material	Powder Sprayed / Aluminum Alloy
Appearance Color	Black
Product Dimensions	133.0 mm × 133.0 mm × 68.0 mm (5.24" × 5.24" × 2.68")
Operating Conditions	-20 °C to +55 °C / Outdoor
Weight (Net / Gross)	Net: 0.25 kg (0.55 lb) / Gross: 0.37 kg (0.82 lb)
Installation / Storage Conditions	Flush Mount / Storage: 0 °C to +40 °C / 30%–75% (RH)
Packaging Dimensions	188.0 mm × 187.0 mm × 119.0 mm (7.40" × 7.36" × 4.69")
