Sounds off at high sound pressure and lights its rotating beacon during an alarm.

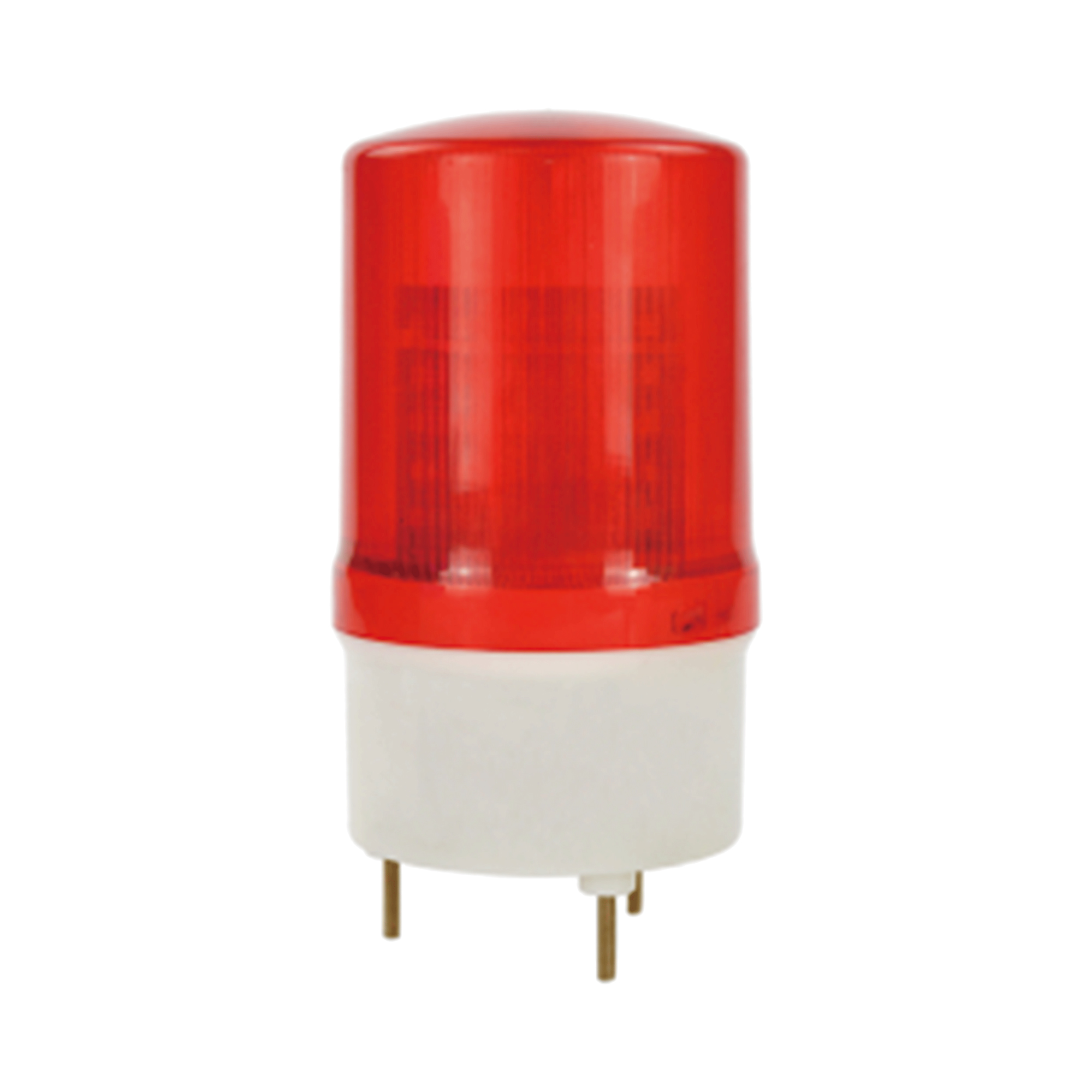

An outdoor sound and light warning siren. It runs on 12 VDC, produces 105 ± 3 dB of sound pressure at 30 cm, and makes the event visible from a distance with its red rotating light. The IP45 rated PC and ABS body stands up to outdoor weather.

105 ± 3 dBSound pressure at 30 cm

IP45Protection Grade

12 VDCPower supply

2.4 WMax. power consumption

-20 °C to +70 °COperating Temperature

Surface mountMounting Type

Key features

Sound and light warningSounds the siren at high sound pressure and lights the outdoor rotating alarm beacon.

Current and consumptionDraws under 200 mA at 12 VDC and consumes at most 2.4 W.

Outdoor durabilityRated IP45, it works between -20 °C and +70 °C at 10%-90% relative humidity.

Housing and colorThe PC and ABS body carries a red lamp shade and uses environmentally friendly plastic.

MountingAn L-shaped iron sheet bracket fixes the siren to the surface.

Size and weightThe 157.0 mm × Φ89.5 mm body weighs 240 g net and 250 g gross.

Technical Specifications

Function

Indicator Light

Red indicator

Buzzer

Technical

Operating Current

≤200 mA (12 VDC)

Sound and Light Alarm

Yes

Sound Pressure

105 ± 3 dB / 30 cm (11.81")

General

Power Supply

12 VDC

Power Consumption

2.4 W (Max.)

Operating Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Operating Humidity

10%–90% (RH)

Dimensions

157.0 mm × Φ89.5 mm (6.18" × Φ3.52")

Net Weight

240 g (0.53 lb)

Gross Weight

250 g (0.55 lb)

Installation

Surface mount

Casing Material

PC and ABS

Appearance Color

Red lamp shade

Protection

IP45

Certifications

Accessory

L-shaped iron sheet bracket × 1
