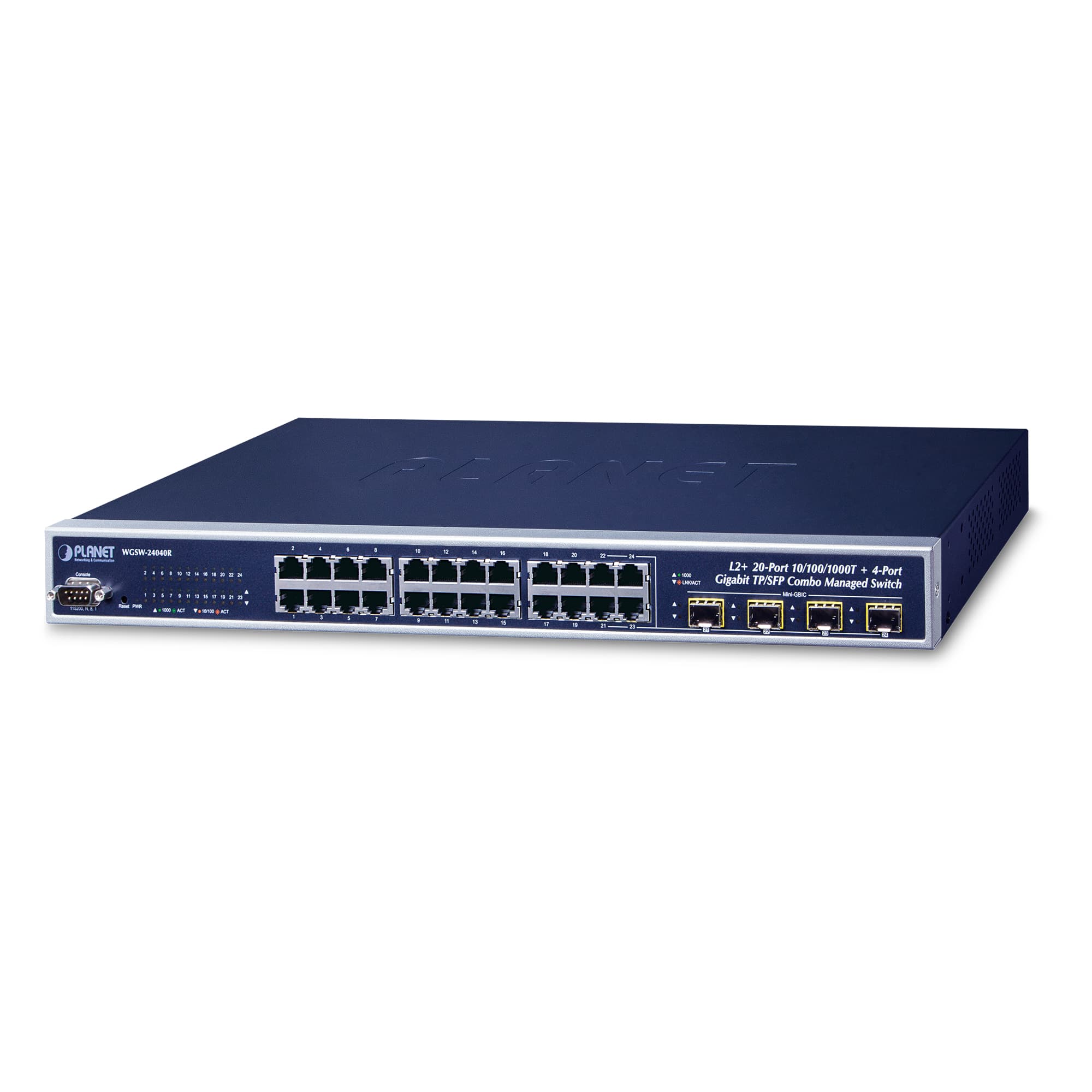

IPv6, 24-Port Gigabit with 4-Port SFP Layer 2/4 SNMP Managed Switch

24-Port 10/100/1000Mbps with Shared 4-Port SFP Managed Switch

Cost-Effective IPv6 Gigabit Managed Switch Solutions for Enterprises

Nowadays, many electronic devices and mobile devices can connect to the internet, resulting in an increased need for IP addresses. However, the existing IPv4 network structure is not sufficient to meet the needs of this user volume. This situation has led ISPs to adopt the IPv6 (Internet Protocol version 6) network structure. To meet this demand, PLANET introduced the WGSW-24040 IPv6 managed Gigabit Ethernet Switch that supports both IPv4 and IPv6 management functions. That is, while supporting the original IPv4 network structure, it also supports the new IPv6 network structure for future-oriented systems. With its user-friendly, easy-to-use interface and many management functions, the WGSW-24040 is the best choice for ISPs to establish IPv6 FTTX edge services and for enterprises to connect with IPv6 networks.

IPv6 Network Solutions
With an easy and user-friendly IPv6/IPv4 management interface along with dual stack and various management functions, the WGSW-24040 is the best solution for connecting IPv6 networks for IP monitoring, VoIP, and wireless service providers. Additionally, it helps businesses transition to IPv6 FTTx edge networks with low investments without requiring network infrastructure changes during the IPv6 upgrade process.

Secure and Flexible Management with Layer 3 IPv4 and IPv6 VLAN Routing
WGSW-24040 switches offer excellent Layer 2 and Layer 4 technologies along with very high-speed transmission performance. Moreover, with Layer 3 IPv4/IPv6 VLAN routing capability, different VLANs with different IP addresses can be cross-connected, providing highly secure, flexible management and easy-to-use network applications.

Robust Layer 2 Features
The WGSW-24040 series supports programmable switch management functions such as dynamic port link, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MTSP), Layer 2 to Layer 4 QoS, bandwidth control, and IGMP snooping. It provides 802.1Q tagged VLAN and supports up to 256 VLAN groups. With link aggregation support, the WGSW-24040 offers high-speed trunk performance using multiple ports. It supports channel groups from 8 ports up to 32 groups.

Effective Security
The WGSW-24040 provides a comprehensive Access Control List (ACL) designed to maximize security. Its security mechanism also includes port-based 802.1x and MAC-based user and device authentication. The port security function effectively limits the number of customers and users, enabling network administrators to build and manage high-security corporate networks with less time and effort.

Advanced Security and Traffic Control
The WGSW-24040 series further enhances network security with features such as IP spoofing prevention, blocking ARP packets with invalid MAC addresses, DHCP snooping, IP source guard, and Dynamic ARP Inspection. These features allow network administrators to build highly secure corporate networks with much less time and effort than before.

User-Friendly Secure Management
For efficient management, the WGSW-24040 series managed Ethernet switch is equipped with console, WEB, and SNMP interfaces. Its built-in web-based interface offers easy use, platform-independent management, and configuration capabilities. The WGSW-24040 series supports the standard network management protocol (SNMP) and can be managed via any standard management software. For text-based management, it can be accessed through Telnet or the console port. Additionally, the WGSW-24040 series supports SSH and SSL, encrypting packet contents during each session and supporting SNMPv3 connections for secure remote management access.

Extension and Flexibility Solutions
The WGSW-24040 series features 4 built-in mini-GBIC slots and supports 100Base-FX or 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber optic modules. Furthermore, administrators can now adjust the suitable SFP transceiver not only by signal type but also by signal distance. Distances can be adjusted from 550m to 2km (with multi-mode fiber) or 10/50/70/120 kilometers (with single-mode fiber or WDM fiber). These configurations are ideal for company data centers and extensions.

Intelligent SFP Identification Mechanism
The WGSW-24040 supports SFP-DDM (Digital Diagnostic Monitoring). This function allows network administrators to easily monitor real-time SFP parameters such as optical power input and output, temperature, receiver voltage status, and instantaneous laser bias.

High-Performance Backbone / Server Farm Switch
Gigabit Ethernet-supported devices have become a fundamental unit for companies and network servers. The WGSW-24040, with a non-blocking switch architecture capable of delivering up to 48 Gigabit per second, can easily provide the bandwidth required. The product easily offers local network, high bandwidth, and Gigabit Ethernet network structures for corporate backbone systems. Its port trunking function provides a 16Gbps fat-pipe data connection for backbone needs. It is ideal for use as a server farm switch to connect servers. With 4 SFP ports, the WGSW-24040 can provide uplink connections to edge networks via Gigabit Ethernet LX/SX SFP modules.

Security and QoS for Department / Edge Switch
The WGSW-24040 series supports connections for up to 24 high-speed workstations in an Ethernet environment. It provides uplink connection to the department backbone via 2 SFP mini-GBIC interfaces. Moreover, the switch structure provides 16 Gigabit data speed per second and bandwidth for backbone connection. The WGSW-24040 series enhances network efficiency and security for network users by offering the following features:
• IPv6 / IPv4 management
• Layer 2 to Layer 4 security
• QoS
• 802.1x Port-based and MAC-based network authentication security
• Multicast IGMP Snooping
The advanced functionality of the WGSW-24040 eliminates traditional problems in Ethernet structure. Users are separated with advanced VLAN functionality, increasing security. This makes the WGSW-24040 one of the most cost-effective and successful products for enterprises.

FTTX / MAN Applications
Using double-tagged VLAN technology, the WGSW-24040 series allows service providers to transfer traffic to their customers’ networks at low cost and with easy operation. It supports SNMPv3 and RMON groups as features. The SNMPv3 security structure ensures that each model has its own unique security level. With 4 built-in multi-speed SFP slots, deployment distances can be extended from 550 meters (with multi-mode fiber) up to 10/50/70/120 kilometers (with single-mode fiber), providing edge solutions for high-speed FTTX deployments. Internet providers deliver fiber infrastructure to homes (FTTH), curbs (FTTC), and company buildings (FTTB), offering solutions with various SFP distances (small-form factor) and optional Bidi (WDM) receivers according to customer needs. For security and various applications, the WGSW-24040 series’ 24 Gigabit ports can be controlled with VLAN settings, enabling connections from different units, offices, homes, and departments.
