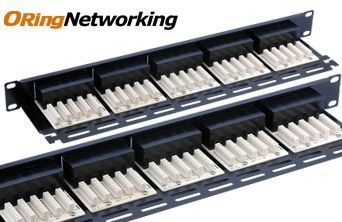

Name: ISDN 50 Port Patch Panel
Brand: Oring Networking
SKU: PISDN50

Consolidates telephone and ISDN lines on a single 50-port panel

A Cat3 voice-grade, 50-port right-angle patch panel. It terminates telephone and analog voice lines neatly between the exchange side and the outlet side, serving structural cabling installations and low-voltage building projects.

50Port Count

CAT3Cable Type

16 MHzOperating Frequency

10 MbpsTransmission Speed

110 Punch DownTermination Type

Key features

Termination110 punch down blocks terminate 22 - 26 AWG solid wire directly.

Contact plating50u micro-inch gold plated contacts keep contact resistance low.

HousingThe flame retardant plastic housing carries a UL 94V-0 rating.

Standards complianceIt complies with TIA/EIA 568 C.2, ISO/IEC 11801 and EN 50173-1, and supports the T568A and T568B wiring schemes.

Service lifeThe RJ45 port withstands at least 750 and the IDC side at least 250 connection cycles.

ApplicationIt carries telephone and analog voice lines in a 10 Base-T compatible manner.

ORing Networking structural cabling products carry a lifetime warranty.

General and Mechanical Specifications

Product Type

Cat3 Voice Patch Panel - 50 Port (Right Angle)

Termination Type

110 Punch Down

Contact Plating

50u Micro Inch Gold Plated Contacts

Housing Material

High-Durability Flame Retardant Plastic (UL 94V-0)

Wire Compatibility

22 - 26 AWG Solid Wire

Service Life

RJ45 Port: Min. 750 Cycles / IDC: Min. 250 Re-terminations

Performance and Standards

Operating Frequency

16 MHz Bandwidth (Voice Grade)

Application Support

Telephony and Analog Voice (10 Base-T Compatible)

Wiring Schemes

Compatible with T568A and T568B

Standard Compliance

TIA/EIA 568 C.2, ISO/IEC 11801, EN 50173-1

Warranty

Lifetime Warranty for ORing Networking Structural Products
