Dahua

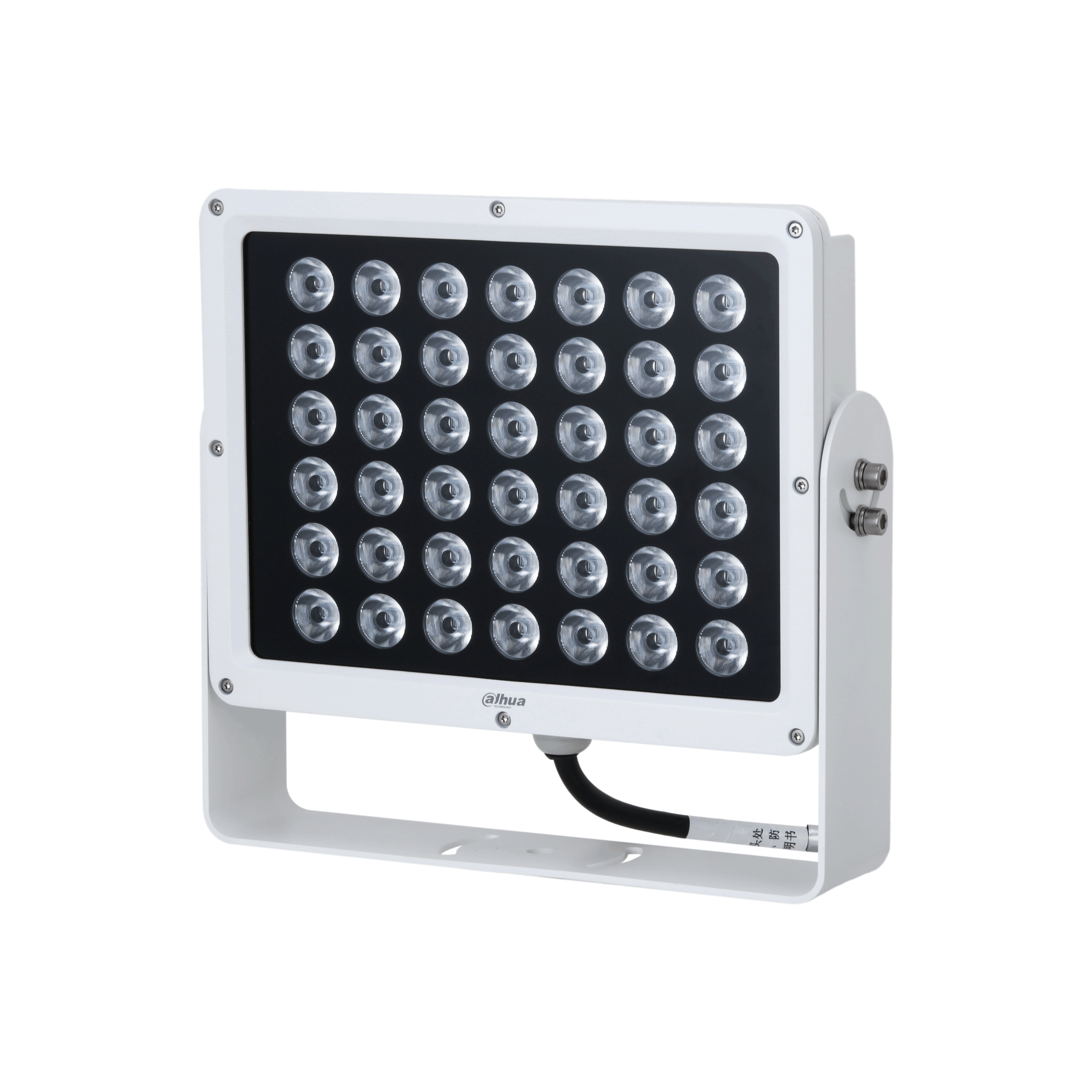

Strobe LED Illuminator

Name: Strobe LED Illuminator
Brand: Dahua
SKU: ITALE-160BA-IR8-P

Artikelnummer: ITALE-160BA-IR8-P

It lights the lane with an IR strobe, synchronized with the camera.

A strobe illuminator with 42 high-brightness LEDs that runs in sync with traffic cameras. It lights an area between 18 m and 35 m and tunes pulse width and delay to the site.

18 m–35 mIllumination distance

IR 850 nmLight source

42LED quantity

100–240 VACPower supply

60 WPower consumption

IP66Protection Grade

Key features

Strobe illuminationIt fires at an integer multiple of the camera refresh frequency, and sets pulse width from 0 ms to 3 ms and delay from 0 ms to 4 ms.

Brightness settingIt changes LED brightness across levels 1–20 and sets day/night sensitivity across levels 1–6.

Strobe cascadingIt links the strobe sync output to the trigger line of the next illuminator and builds multi-lane synchronized illumination from one camera.

Remote monitoringOver RS-485 it reports online status, fault status, power, temperature, and photosensitivity value to traffic cameras or intelligent cabinets.

Illuminating angleWith a 10° × 30° lens angle it reaches a center illuminance of 23 µW/cm² at 20 m.

Housing and heat managementThe IP66 housing stays closed to dust and water, and the internal heat dissipation design prevents overheating.

Basic
Light Type	LED
Light Source	IR (wavelength 850 nm)
Center Illuminance	< 23 µW/cm² (20 m illumination)
Illumination Distance	18 m–35 m (59.06 ft–114.83 ft)
LED
Frequency	The integer multiple of camera refreshing frequency
LED Quantity	42 (high-brightness LED)
Luminous Flux	16 W
Strobe Pulse Width	0 ms–3 ms
Strobe Delay	0 ms–4 ms
Strobe Time	Records total strobe time
Lens Illuminating Angle	10° × 30°
Function
Day/Night	Sensitivity adjustable (1–6)
Operating Mode	Strobe
Status Indication	Displays real-time device online and light status
Power Detection	Displays real-time power of the device
Temperature Detection	Displays real-time temperature of the device
Photosensitivity Value	Displays real-time device photosensitivity value
Cascade	Strobe cascading
Remote Failure Display	Current and voltage detection
Brightness	LED: 1–20 levels of brightness
Recording and Illumination Synchronization	Yes
Port
Strobe Input	1
RS-485	1
General
Power Supply	100–240 VAC
Power Consumption	60 W
Operating Temperature	–40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity	10%–90% (non-condensing)
Protection	IP66
Product Dimensions	258 mm × 250 mm × 84 mm (10.16" × 9.84" × 3.31") (L × W × H)
Net Weight	3.6 kg (7.94 lb)
Gross Weight	4.1 kg (9.04 lb)
Installation	Bracket mount
