Attaches the Addressable Repeater Panel to the wall.

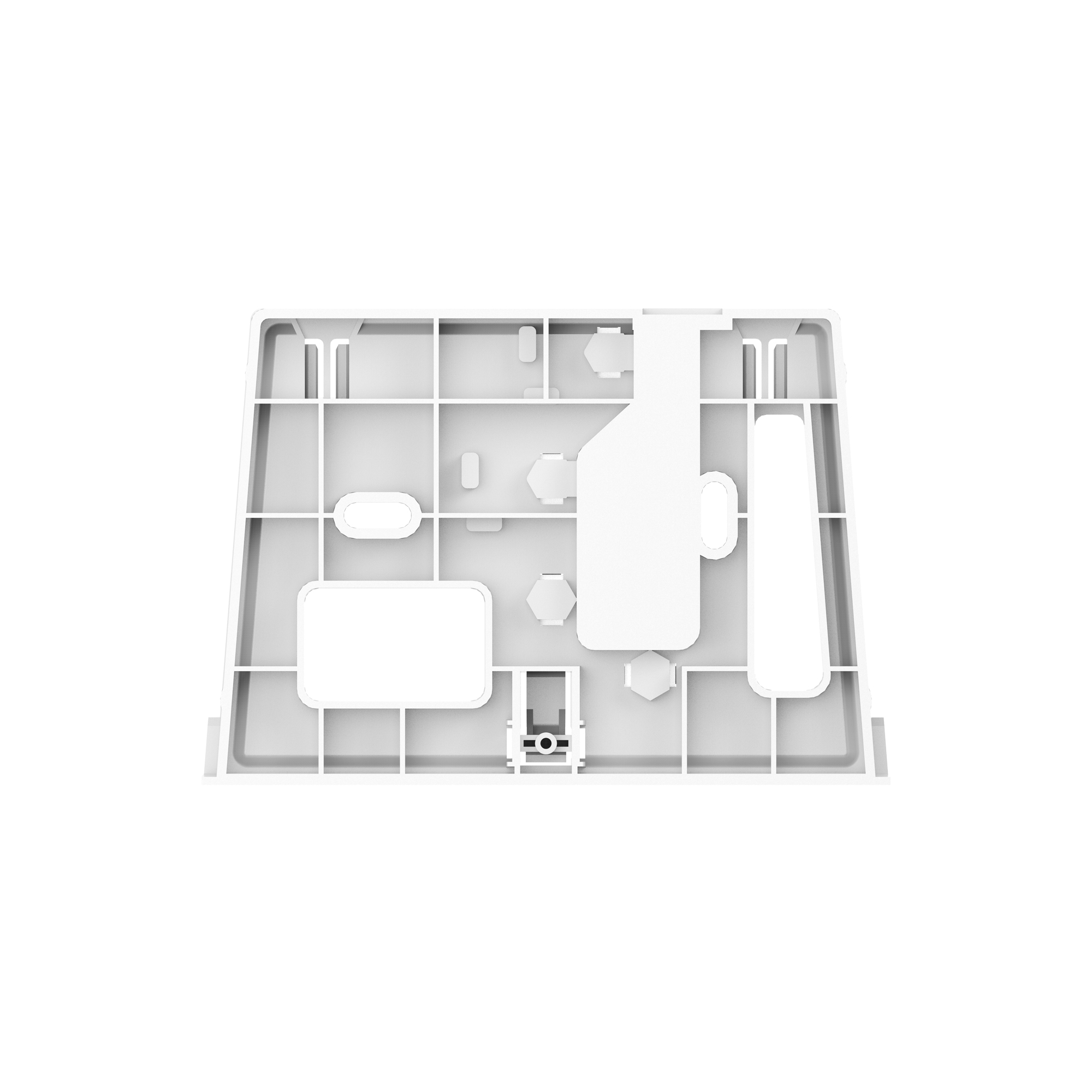

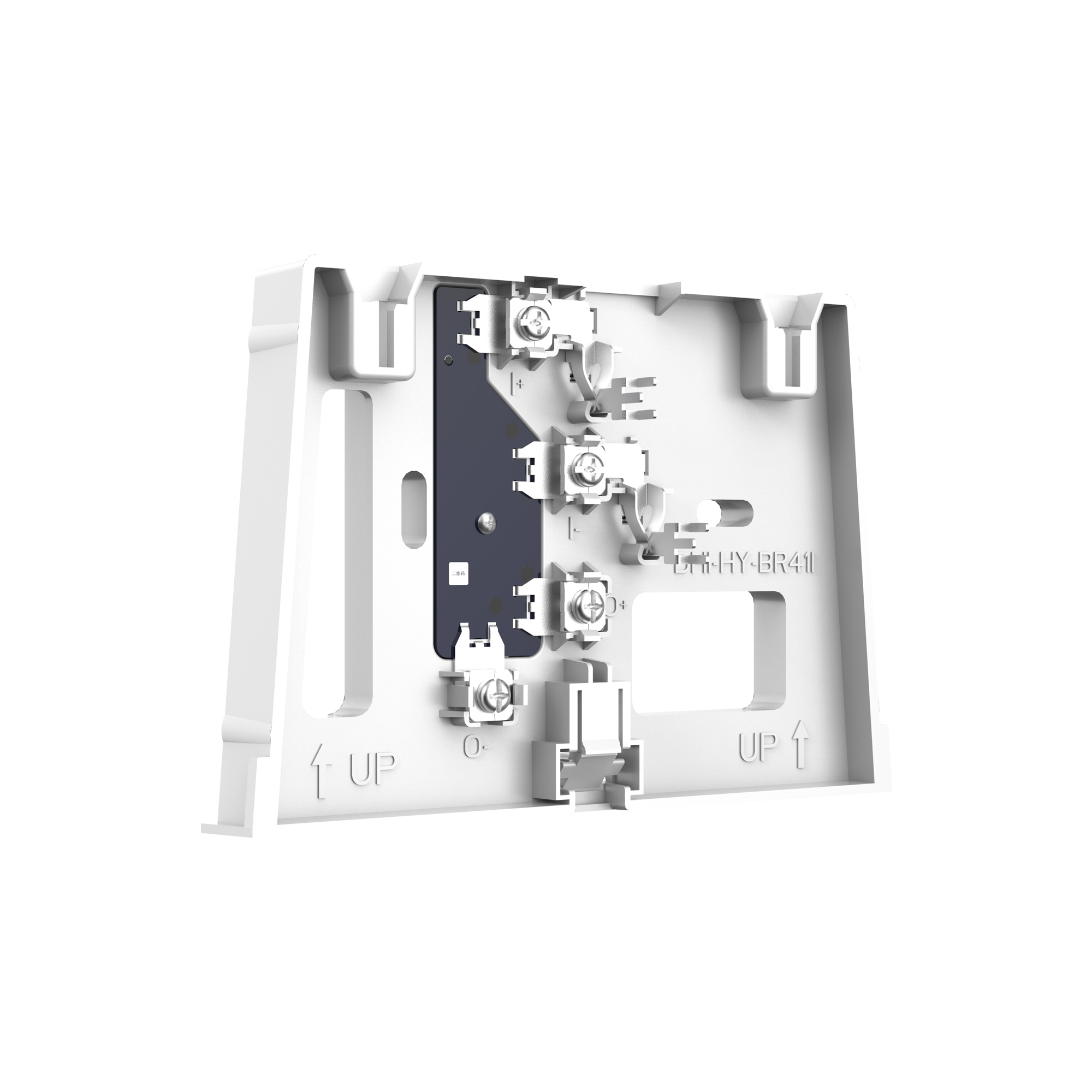

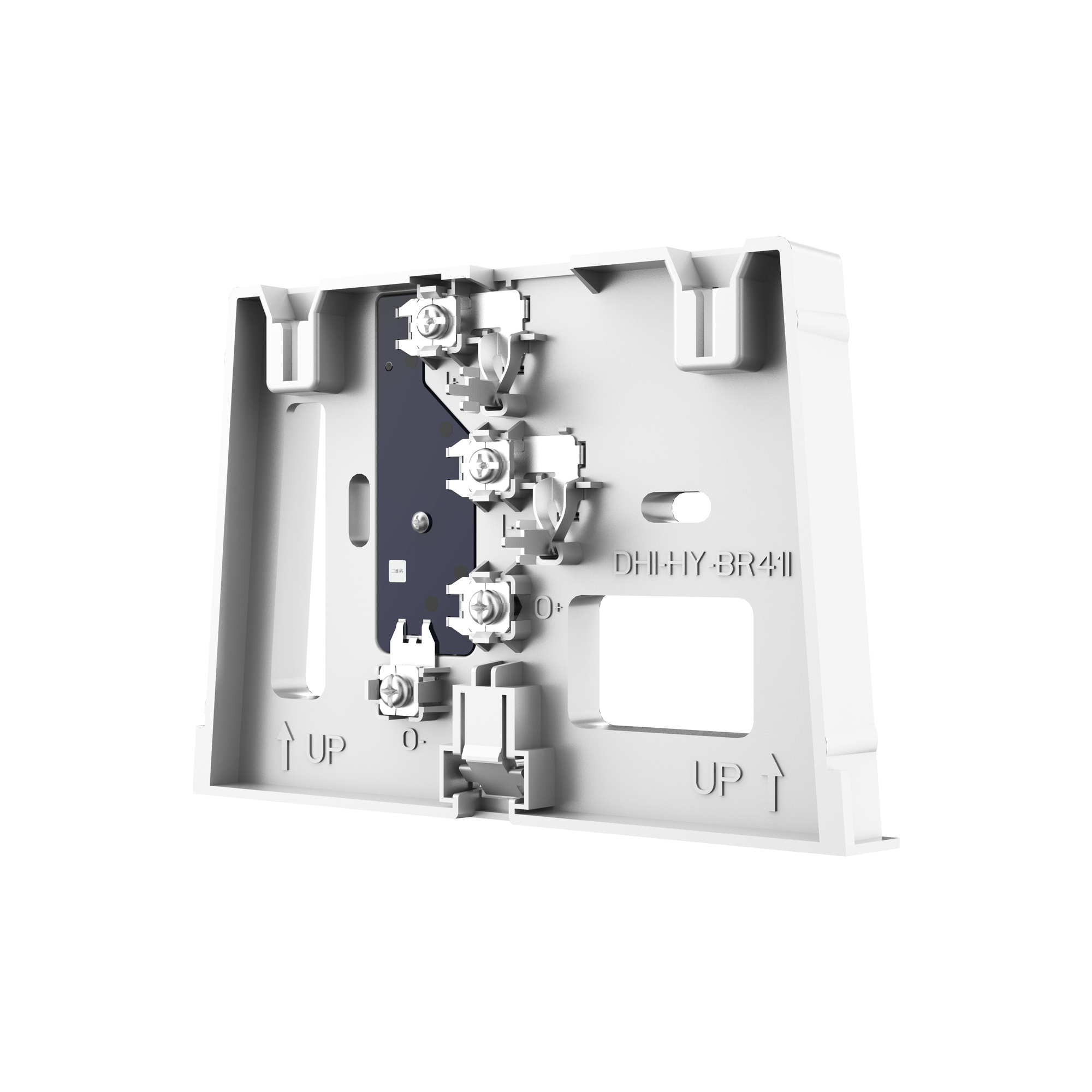

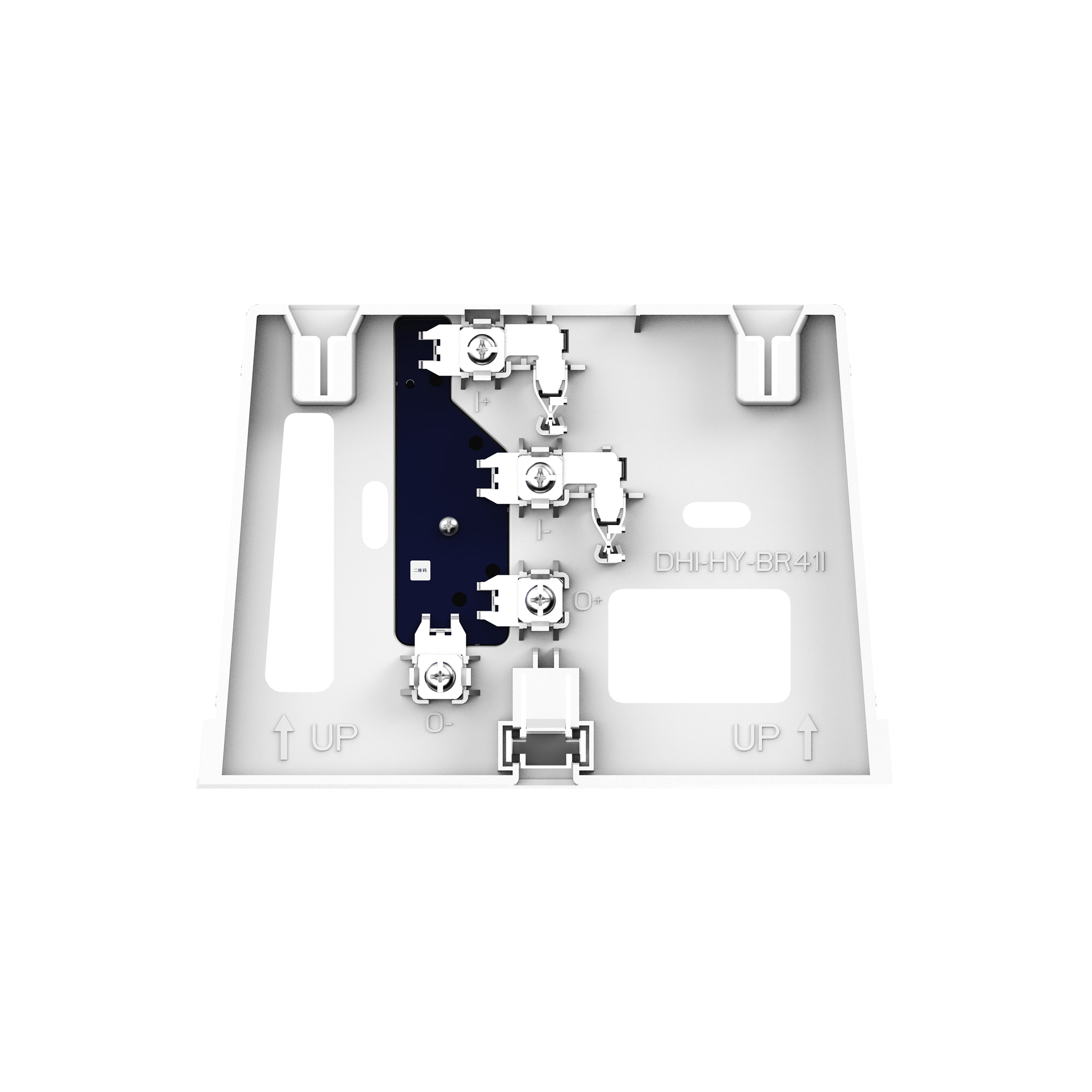

An isolation base for the Addressable Repeater Panel. It fixes the panel to the wall surface. Its working voltage range is 16 V to 28 V DC.
Compatible deviceThe base carries the Addressable Repeater Panel on the wall.
Working voltageThe base runs on 16 V to 28 V DC.
Wall mountingThe base sits directly on the wall and holds the panel against the surface.
Ambient conditionsIt works between -10 °C and +50 °C and up to 95% RH without condensation.
Size and weightThe base measures 122.78 mm × 85.01 mm × 15.5 mm and weighs 49 g.
Storage temperatureThe storage temperature range runs from -20 °C to +65 °C.
