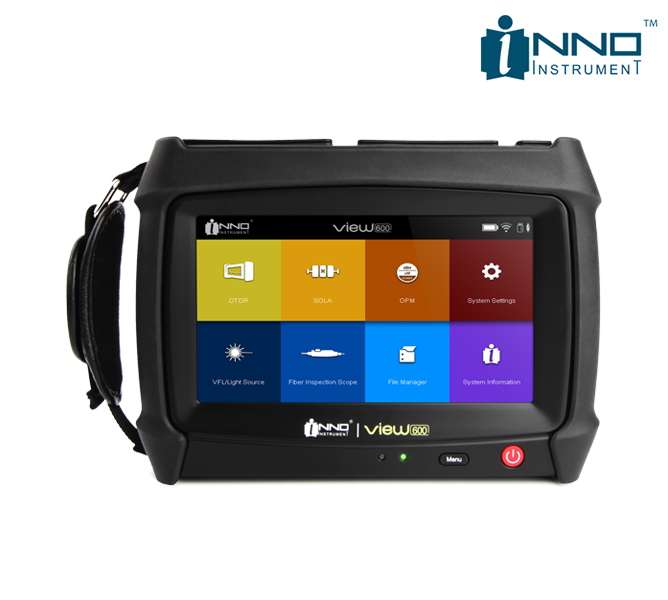

Name: OTDR
Brand: Inno Instrument
SKU: View600

Swaps modules to measure anything from the access network to the metro network.

A modular OTDR for access networks, FTTx / PON and metro networks. Its touch screen and fast CPU finish each measurement quickly, and the VFL, light source and OPM already sit inside the housing.

7 inchesTouch screen

35 dBDynamic range

360 kmMeasurement range

256.000Sampling points

12 hoursBattery runtime

13Applicable modules

Key features

13modules

Modular measurement platform

Swaps modules for different jobs from the access network to the metro network.

256.000points

High sampling resolution

Separates closely spaced events on long links one by one.

35dB

Wide dynamic range

Measures with 35 dB / 33 dB of dynamic range at 1310 nm and 1550 nm.

0.001dB

Fine loss readout

Picks out small splice losses and writes them into the report.

12hours

Battery for field work

Carries a full day of measurement rounds on one charge.

8GB

Internal storage

Moves files between the internal SD card and external USB memory.

DAY-TO-DAY IN THE FIELD

SOLA analysisThe smart optical link analyzer reads the measurement and hands the technician a plain summary.

Touch interfaceThe smart GUI magnifies the trace with a finger and opens the event list in one tap.

Built-in test toolsVFL, light source and OPM live in the same housing, so no second unit goes to site.

Usage areasFTTx and PON networks·Access network·Metro networks

VIEW600 OTDR Technical Specifications

Model

Display

7 inches, High Brightness TFT LCD, 800×480 resolution

Distance Unit

m / km / mile / ft

Dynamic Range

35dB / 33dB (1310nm / 1550nm)

Measurement Range

1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km

Pulse Width

3ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs

Distance Accuracy

±(1m + Distance × 2.5 × 10⁻⁵ + Sampling resolution)

Sampling Points

256,000 points

Linearity

0.03dB

Loss Readout Resolution

0.001dB

Battery Capacity

Operating Time: Up to 12 hours

File Format

SOR, BMP, JPG, GDM, SOLA, PDF

External Connection

USB 2.0 x 2

Compatible Connector

APC (FC, SC, LC), UPC (FC, SC, LC, ST)

VFL Output

650nm ±10nm, 20mW (Up to 10km)

Light Source

Operating Wavelength: 1310nm / 1550nm ±10nm, Output Power: -5dBm

OPM Power Range

-70 to +6dBm (Accuracy: 0.01dB)

Power Supply

AC Input 100-240V / DC Input 19V, 3.42A
