Name: S/FTP CAT6A 10G 23AWG PIMF LSZH Network Kablosu 500mt - CPR Sertifikalı
Brand: Oring Networking
SKU: RW-SS06A01WH/C

Prepares a CPR certified backbone run for 10 Gigabit traffic

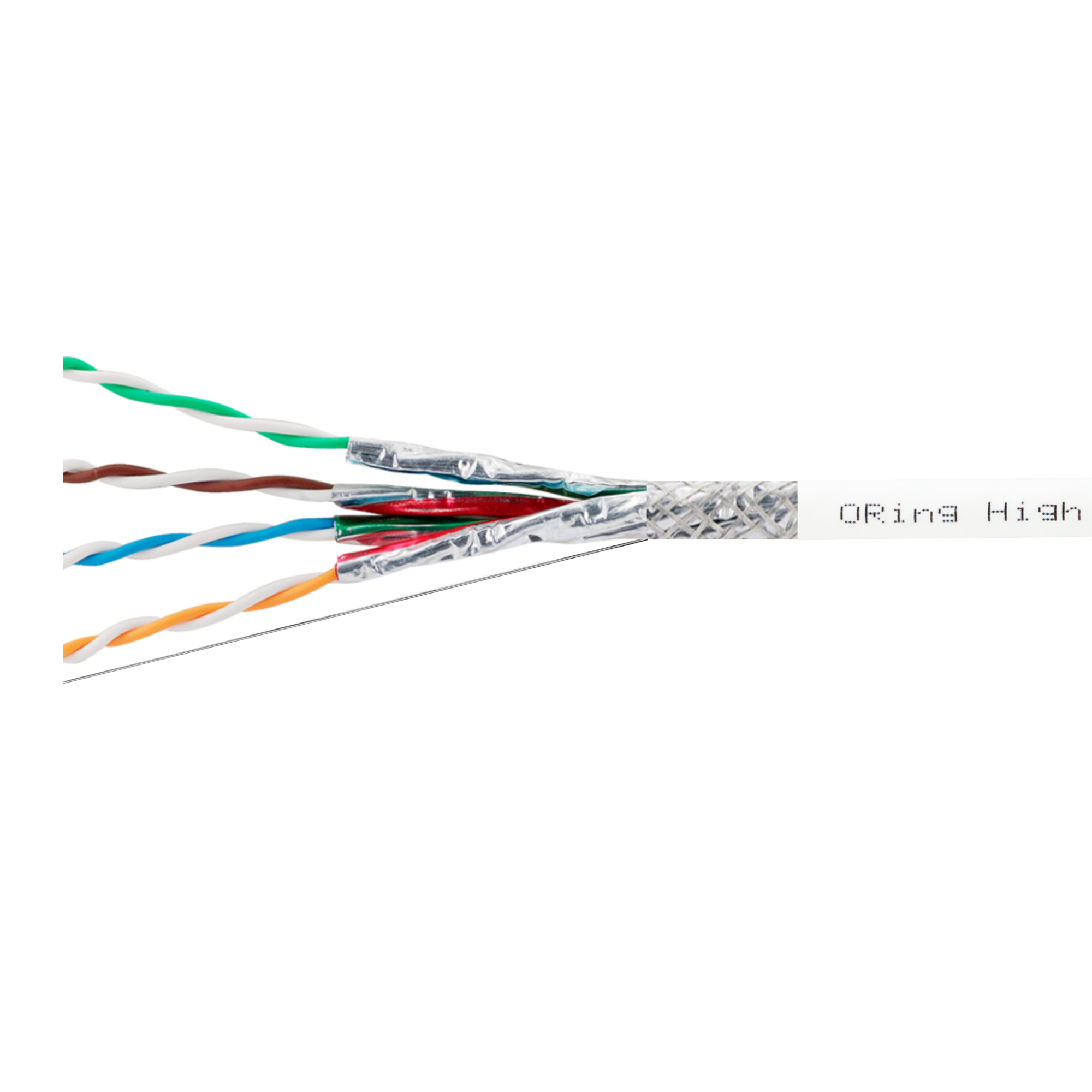

This S/FTP PIMF shielded CAT6A network cable builds horizontal and vertical runs inside a building. The CPR certificate documents compliance with construction product fire behavior rules. Its 23 AWG copper conductor and 500 MHz bandwidth cover IEEE 802.3an 10GBase-T applications.

CAT6ACable Type

S/FTPShielding

500 MHzFrequency

23 AWGCable Thickness

500 mLength

WhiteCable Color

Key features

10GBase-T

High-speed network support

Carries IEEE 802.3an 10GBase-T, 1000 Base-TX Gigabit Ethernet, 10Base-T and 100Base-TX Fast Ethernet links.

500MHz

Extended bandwidth

CAT6A class bandwidth protects the signal margin on long runs.

23AWG

Thick copper conductor

The heavy-gauge copper conductor lowers attenuation on horizontal and vertical runs.

500m

Full drum length

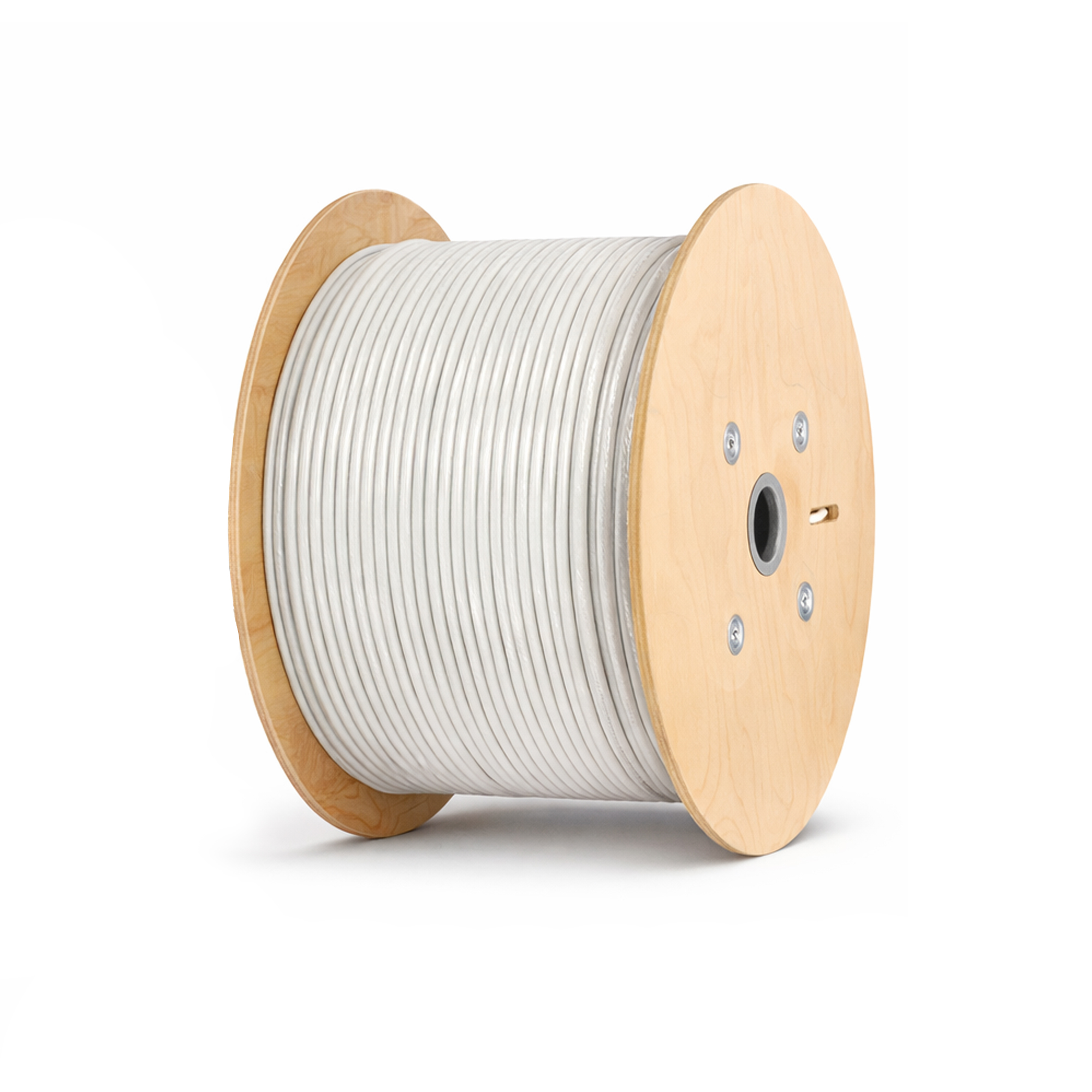

A single drum feeds in-building distribution runs without splices.

155/622Mbps

ATM and legacy services

Carries 100 VG-AnyLAN, ATM, 100 MHz Broadband Video, Voice, T1 and ISDN services on the same link.

IN THE FIELD

Building code complianceThe CPR certificate eases material approval in publicly accessible buildings.

Halogen-free safetyEmits little smoke in a fire and protects visibility along escape routes.

Structured cabling backboneJoins floor panels and workstation outlets on a single uniform link.

Usage AreasCorporate buildings·Hospitals·Shopping centers·Hotels·Cinemas·Underground metro and power plants

General Specifications

Standards

ANSI/TIA/EIA, ISO/IEC, CENELEC EN

General Specifications
Standards	ANSI/TIA/EIA, ISO/IEC, CENELEC EN
Category	Cat6A
Compliance	ANSI/EIA/TIA 568-C.2.1, ISO/IEC 11801 Class EA, EN 50173-1
Flame Retardancy	IEC 60332-1-2
Jacket Type	LSZH (Low Smoke Zero Halogen)
Color	White (RAL9010)
Cable Length	500 m
Certification	CPR Certified
Performance
Frequency	500 MHz
Impedance	100 ohms ±15%
NEXT	27.9 dB
PS-ANEXT	49.5 dB
Return Loss	8.0 dB
Supported Applications
Ethernet	10Base-T, 100Base-TX, 1000Base-TX
High Speed	IEEE 802.3an 10GBase-T
Others	ATM, ISDN, Voice, Broadband Video
Warranty
Warranty Period	Lifetime Warranty (ORing Networking)

General Specifications
Standards	ANSI/TIA/EIA, ISO/IEC, CENELEC EN
Category	Cat6A
Compliance	ANSI/EIA/TIA 568-C.2.1, ISO/IEC 11801 Class EA, EN 50173-1
Flame Retardancy	IEC 60332-1-2
Jacket Type	LSZH (Low Smoke Zero Halogen)
Color	White (RAL9010)
Cable Length	500 m
Certification	CPR Certified
Performance
Frequency	500 MHz
Impedance	100 ohms ±15%
NEXT	27.9 dB
PS-ANEXT	49.5 dB
Return Loss	8.0 dB
Supported Applications
Ethernet	10Base-T, 100Base-TX, 1000Base-TX
High Speed	IEEE 802.3an 10GBase-T
Others	ATM, ISDN, Voice, Broadband Video
Warranty
Warranty Period	Lifetime Warranty (ORing Networking)

S/FTP CAT6A 10G 23AWG PIMF LSZH Network Kablosu 500mt - CPR Sertifikalı

Sertifika

3P Sertifikası

CPR Sertifikalı

Ähnliche Produkte

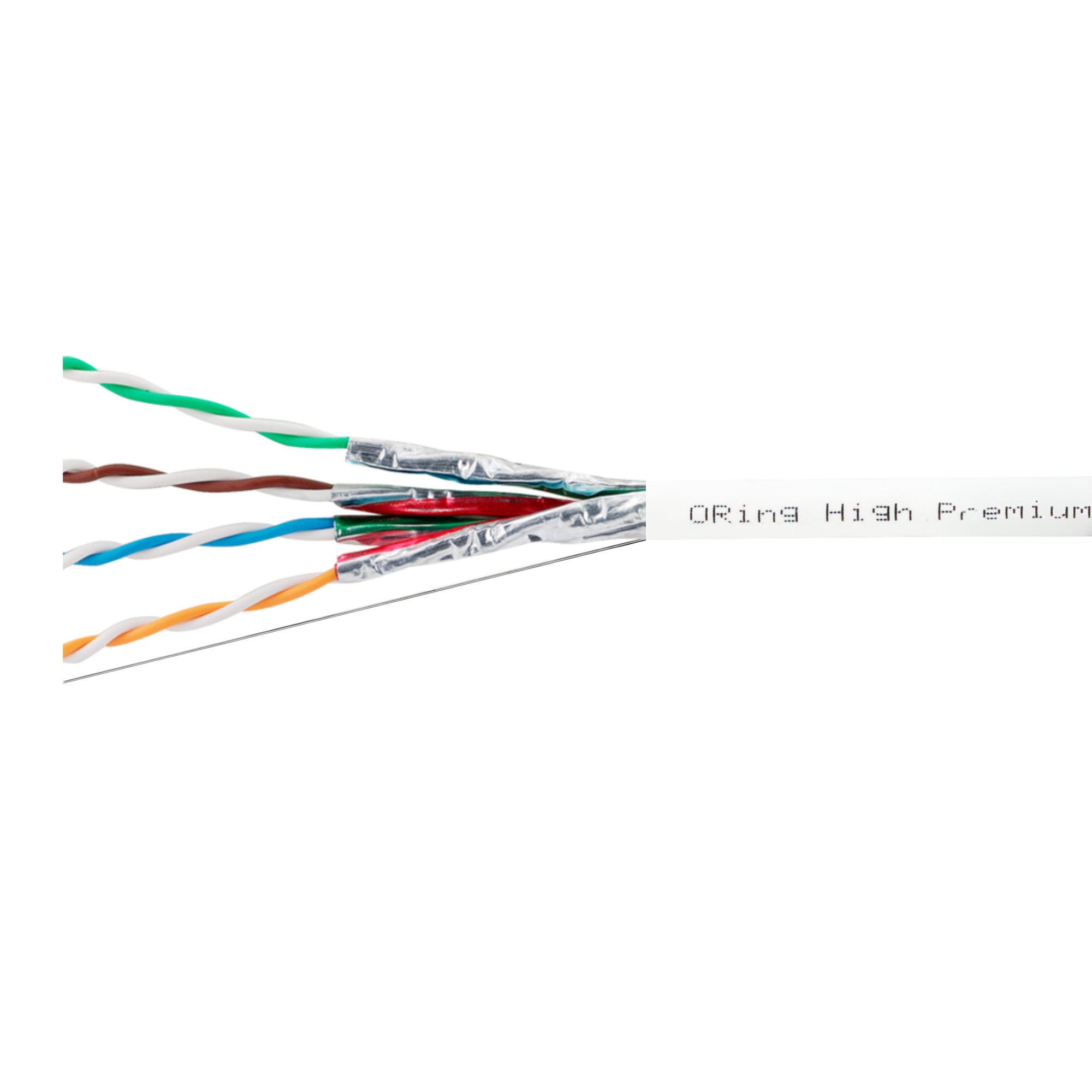

U/FTP CAT6A 10G 23AWG LSZH Network Cable 500m

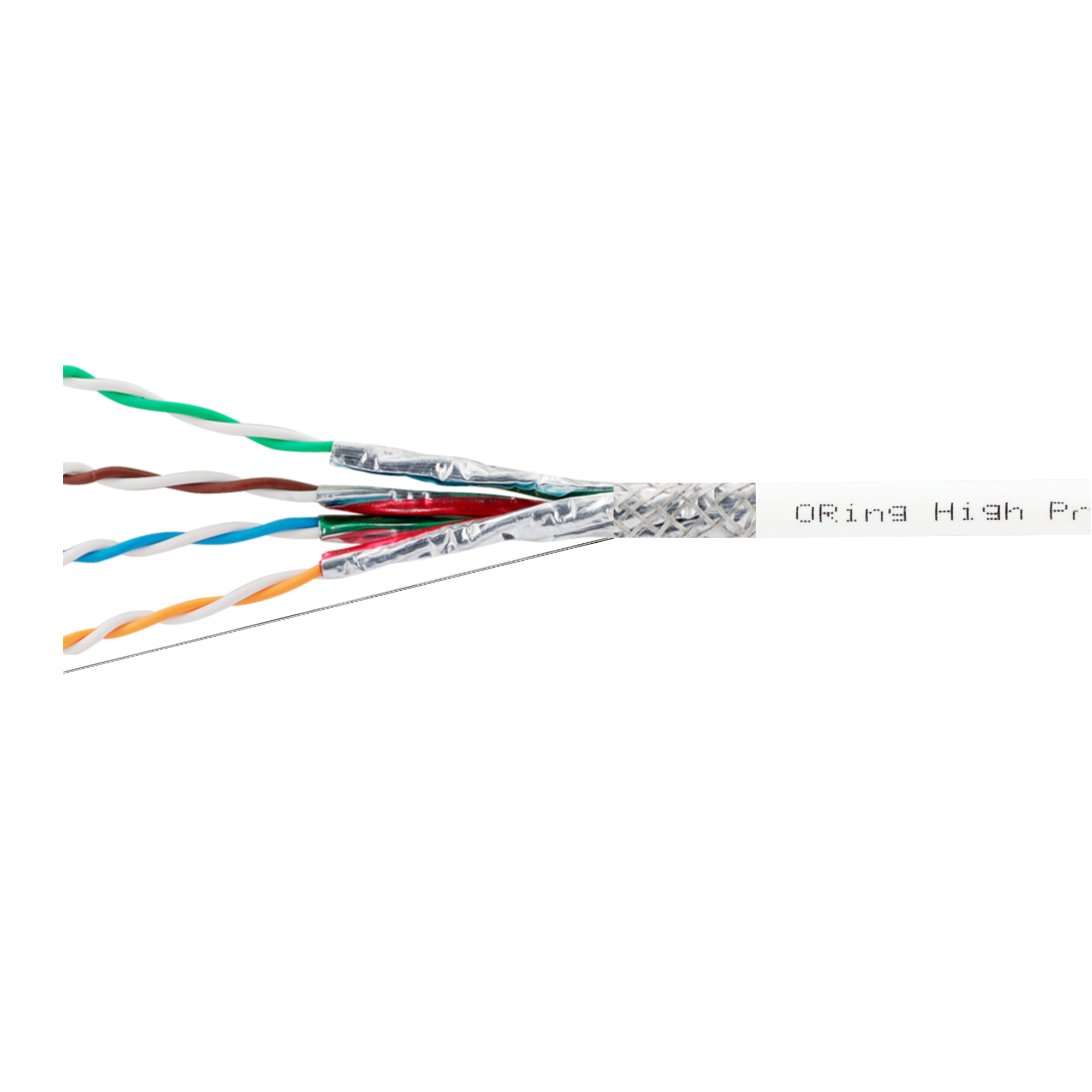

S/FTP CAT6A 10G 23AWG PIMF LSZH Network Cable500mt

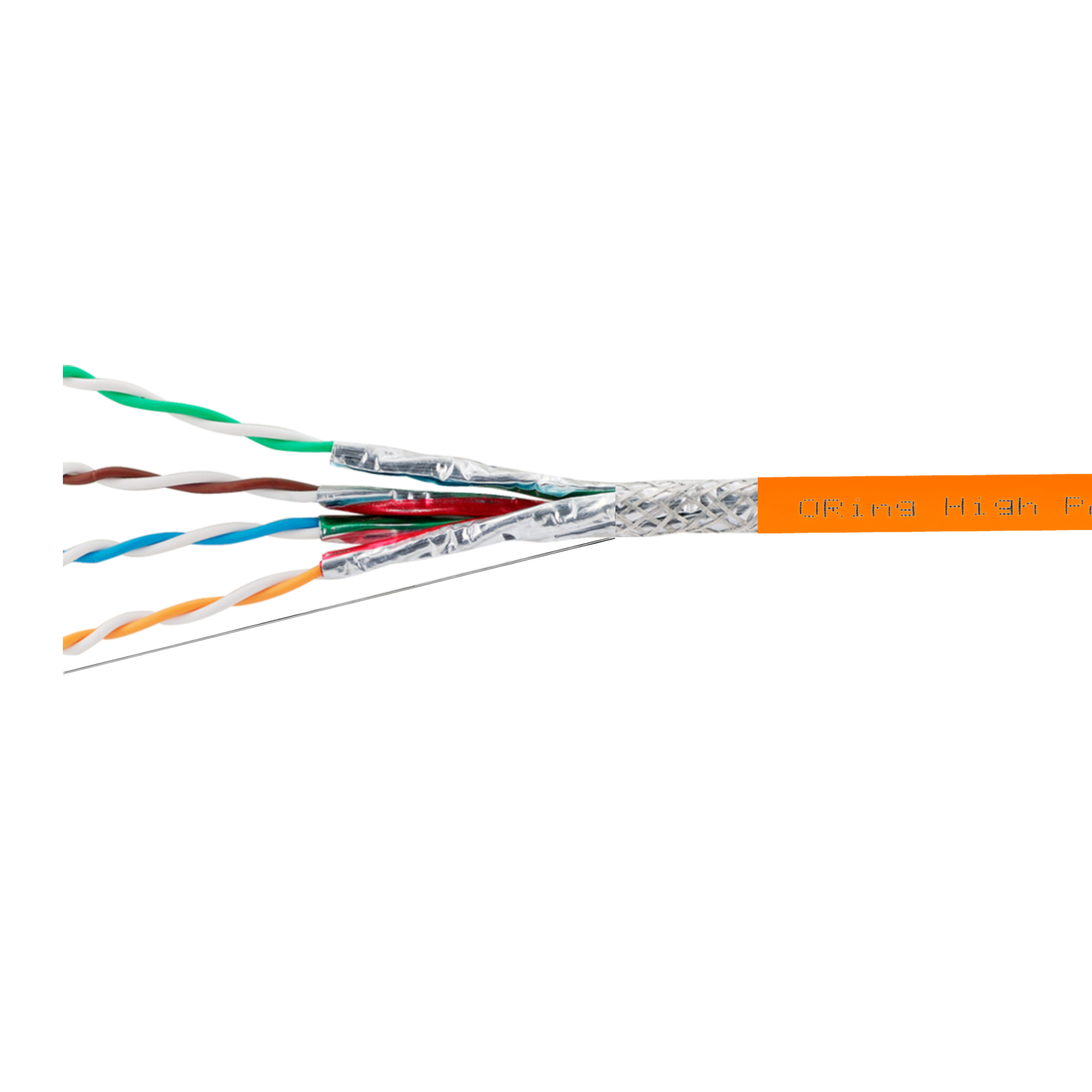

S/FTP CAT6A 10G 23AWG PIMF LSZH Network Cable500m - Orange
