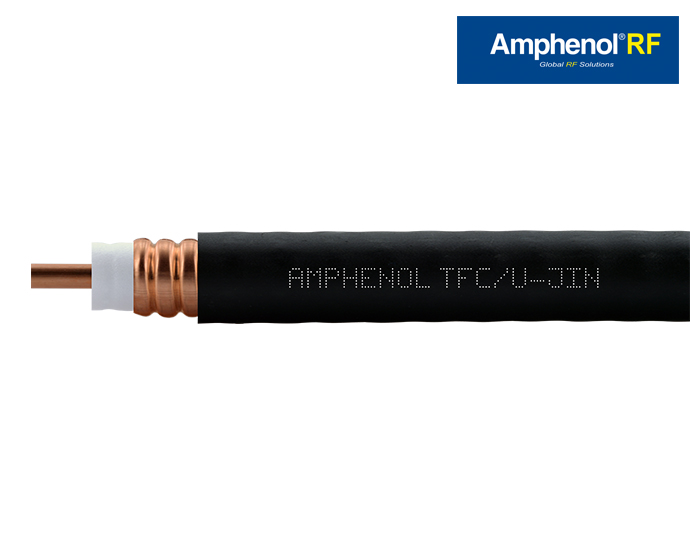

A 1/2 in SuperFlex coaxial cable built with a helically corrugated copper outer conductor and physically foamed PE insulation. Its flexible body makes installation easier on cable routes with tight turns.
50Ω
The same line impedance as the system
It matches antennas, connectors and devices that are built around the same impedance.
10.2GHz
A wide defined working band
The cut-off frequency is defined at this value; the cable is used in the bands below that limit.
15.6kW
High peak power capability
It gives the peak power limit that pulsed and high power transmitter lines can carry.
81%
Fast signal propagation
Physically foamed PE insulation keeps the nominal velocity of propagation in the cable high.
>>120dB
Strong shielding
The corrugated copper outer conductor keeps the signal entering and leaving the cable low.
800N
Mechanical strength against pulling
It shows the upper limit of the pulling force that may be applied while the cable is drawn.
In the fieldFlexible bodyThe helically corrugated copper outer conductor lets the cable bend along tight routes.
Two jacket optionsThe jacket comes as PE or fire retardant PE and is picked for the fire conditions of the site.
Planning around temperatureStorage, installation and operating temperature values are defined per jacket type.
Attenuation and average power values change with frequency; the maximum attenuation value is 105% of the nominal attenuation value.
