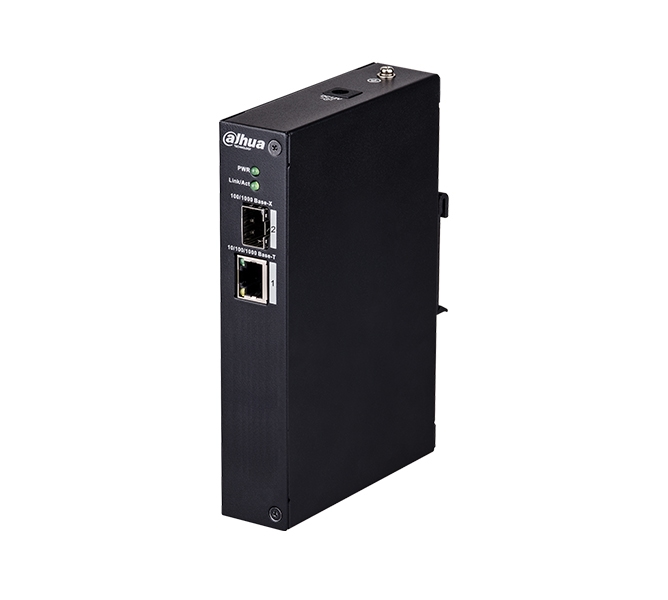

1-Port Ethernet Switch (Unmanaged)

Name: 1-Port Ethernet Switch (Unmanaged)
Brand: Dahua
SKU: PFS3102-1T

Stock Code: PFS3102-1T

Links a fiber run into a copper Ethernet network.

A two-layer industrial Ethernet media converter. It connects one SFP fiber port to one copper Ethernet port and runs from -40°C to 70°C.

1×100/1000 Base-XFiber Port

1×10/100/1000 Base-TEthernet Port

6.8GSwitching Capacity

2.98 MppsPacket Forwarding Rate

8KMAC Table Size

DC 12VPower Supply

Key features

Fiber and copper portLinks the 100/1000 Base-X fiber port to the 10/100/1000 Base-T copper port and selects the rate automatically.

Standards complianceConforms to IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X.

Store and forward switchingForwards packets in store and forward mode using a 1Mb packet buffer.

Wide temperature rangeRuns from -40°C to 70°C at 10%~90% relative humidity.

Lightning protectionWithstands 4KV common mode and 2KV differential mode surges.

Compact housingThe 420g housing measures 150mm×100mm×30mm and draws at most 3W.

Technical Specification
Model	DH-PFS3102-1T
Ethernet Port	1×100/1000 Base-X; 1×10/100/1000 Base-T
Switching Capacity	6.8G
Packet Forwarding Rate	2.98Mpps
Packet Buffer Memory	1Mb
MAC Table Size	8K
Exchange Mode	Store & forward
Application Humidity	10%~90%
Power	DC 12V
Power Consumption	≤3W
Lightning Protection	Common Mode 4KV; Differential Mode 2KV
Working Temperature	-40°C~70°C
Weight	420g
Dimension (W×D×H)	150mm×100mm×30mm
Accessories
PFT3900	155M 850nm, 2km, LC, Multi-mode
PFT3950	1.25G 850nm, 500m, LC, Multi-mode
PFT3910	155M 1310/1550nm, 20km, LC, Single-mode
PFT3920	155M 1550/1310nm, 20km, LC, Single-mode
PFT3960	1.25G 1310/1550nm, 20km, LC, Single-mode
PFT3970	1.25G 1550/1310nm, 20km, LC, Single-mode
