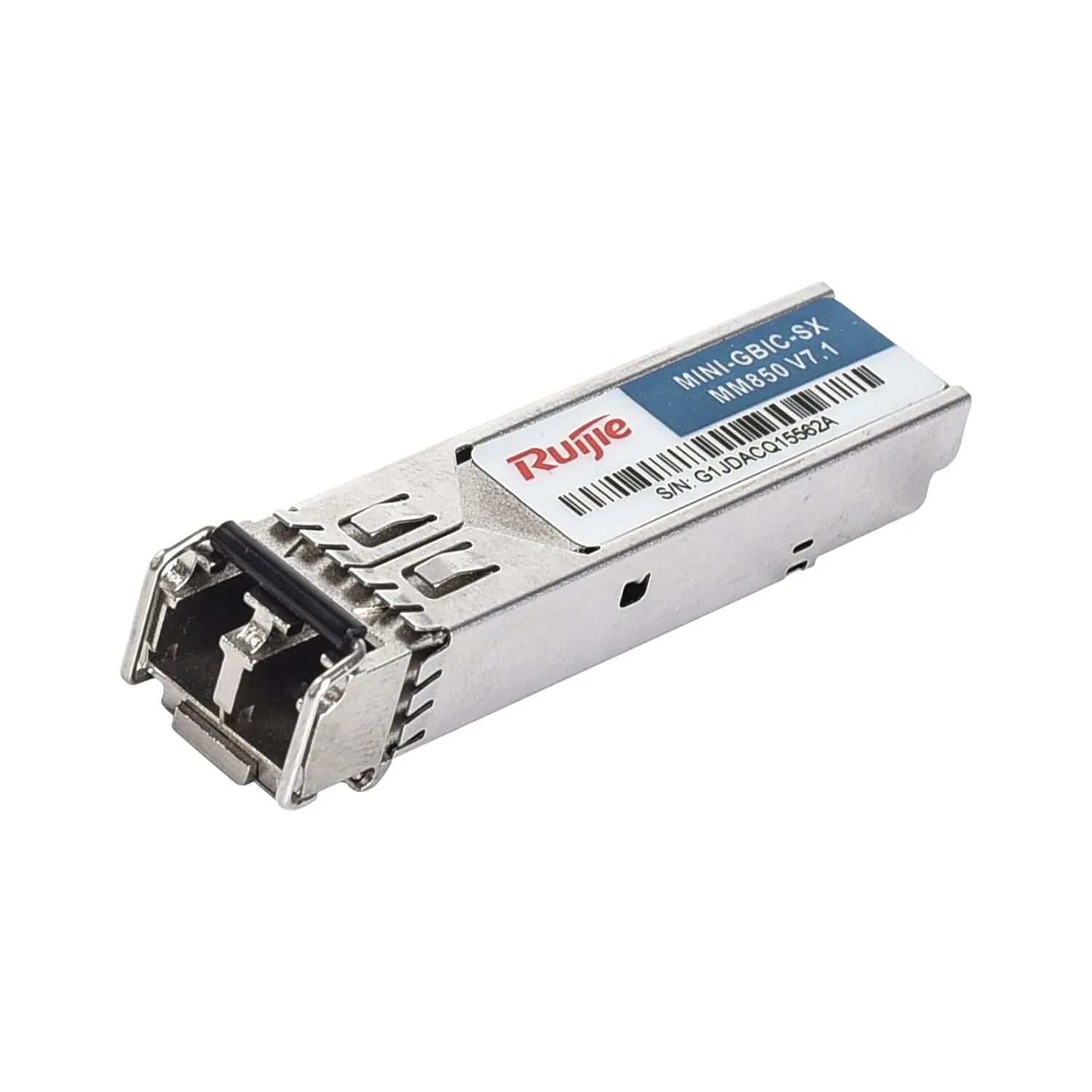

Stock Code: MINI-GBIC-SX-MM850
| MINI-GBIC-SX-MM850 | |
|---|---|
| Data Rate | 1.25 Gbps |
| Form Factor | SFP |
| Connector Type | Duplex LC |
| Cable Type | MMF |
| Fiber End-Face Polish Type | Ultra Physical Contact (UPC) |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| Distance | 550 m (1,804.46 ft.) |
| Bit error ratio (BER) | 1.00E-12 |
| Digital Diagnostic Monitoring (DDM/DOM) | Yes |
| Power Consumption | ≤ 1.5 W |
| Transmitter Optical Parameters | |
| Wavelength (nm) | 850 |
| Max. Output Power (AVG) | 0 dBm |
| Min. Output Power (AVG) | –9.5 dBm |
| Min. Extinction Ratio | ≥ 9 dB |
| Receiver Optical Parameters | |
| Receiver Sensitivity (OMA) | < –17 dBm |
| Overload Optical Power (AVG) | 0 dBm |
| Environment and Reliability | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Operating Humidity | 10% relative humidity to 90% relative humidity |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Storage Humidity | 10% relative humidity to 90% relative humidity |
| Dimensions and Weight | |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
