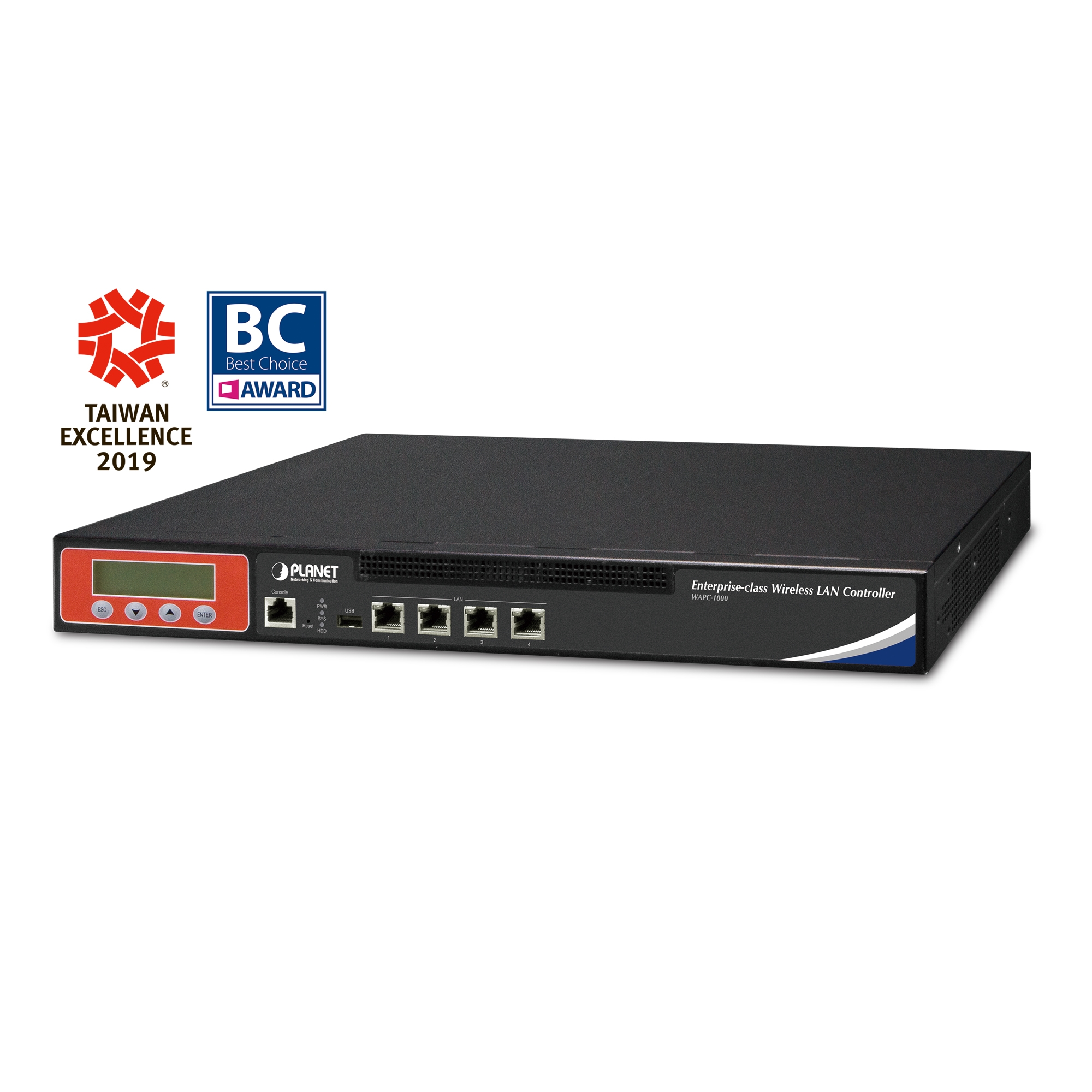

Stock Code: WAPC-1000
| Platform | |
|---|---|
| Form Factor | 1U Rack-mount chassis |
| Processor | Intel® Celeron® J1900 up to 2.42 GHz |
| Memory | 2GB DDR3(L) 1333 SODIMM |
| Physical Specifications | |
| I/O Interface | Four 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X 1 USB 2.0 port 1 RS232-to-RJ45 console port (115200, 8, N, 1) LCM display with keypad 1 AC power input 1 power switch |
| Storage | 2.5”, 500GB SATA HDD |
| Thermal Fan | 1 |
| Dimensions (W × D × H) | 430 × 200 × 44 mm |
| Weight | 3 kg |
| Enclosure | Metal |
| Power Requirement | 100W ATX PSU AC 100~240V, 50/60Hz, 8A max. |
| Environment & Certification | |
| Temperature | Operating: 0 ~ 40°C Storage: -20 ~ 60°C |
| Humidity | Operating: 10 ~ 80% (non-condensing) Storage: 10 ~ 80% @ 40°C (non-condensing) |
| Vibration | 0.5 Grms / 5 ~ 500Hz (when operating) 1.5 Grms / 5 ~ 500Hz (when not operating) |
| Shock | 10G peak acceleration (duration of 11 msec.) when operating 20G peak acceleration (duration of 11 msec.) when not operating |
| MTBF (Hours) | 110,000 |
| AP Management | |
| Number of managed APs | 1,024 |
| Number of RADIUS client devices | 1,024 |
| Number of RADIUS user accounts | 20,000 |
| AP Auto Discovery | Supports AP auto discovery |
| Dashboard | Summarized system overview includes online AP numbers, activated client number |
| SSID/RF Profile | Allows multiple wireless profiles creation and maintenance |
| Cluster Management | Allows AP grouping for bulk provisioning and batch upgrading |
| Bulk AP Provisioning | Supports bulk AP provisioning with user-defined profiles |
| Bulk AP Firmware Upgrade | Supports bulk AP firmware upgrade |
| Coverage Heat Map | Enables real signal coverage of managed AP reflecting on the uploaded zone maps |
| Topology View | Provides visual topology view of connected PLANET devices |
| Status Monitoring | Real-time traffic statistics reporting of AP and activated clients |
| Graphical Statistics | Real-time and historical visibility of traffic flow |
| Profile Backup/Restore | Provides SSID, radio profile backup/restore |
| SSIDs-to-VLANs Mapping | Allows to configure SSIDs-to-VLANs mapping in supported APs |
| RADIUS Authentication | RADIUS server is integrated for client authentication in a large-scale enterprise network |
| User Account Management | Supports on-demand account creation per user-defined access policy |
| Network Services | |
| Network | DDNS: Supports PLANET DDNS / Easy DDNS DHCP: Built-in DHCP Server for auto IP assignment to APs Management: Console; Telnet; SSL; Web browser (Chrome is recommended); SNMP v1, v2c, v3 Discovery: Supports PLANET Smart Discovery |
| Maintenance | Backup: System backup and restore to local or USB HDD Reboot: Provides system reboot manually or automatically per power schedule Diagnostic: Provides IPv4/IPv6 ping and trace route |
| Supported Access Point Models | |
| Managed AP Series | WDAP-C7200AC WDAP-W7200AC WNAP-C3220A WNAP-W2201A |
| Smart AP E Series | WDAP-C7200E WNAP-C3220E WNAP-W2200UE |
| Smart AP OE Series | WDAP-802AC WDAP-702AC WBS-502AC WAP-552N WAP-252N |
| Smart AP OW Series | WAP-200N WAP-500N WBS-200N WBS-500N WBS-202N WBS-502N |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow control and back pressure |
| [Remarks] | The supported AP models may be changed after a firmware upgrade. The following AP models are classified according to their specification: [1] Managed AP Series: The AP can be managed in the “Managed AP” mode. [2] Smart AP E Series: “E” stands for "Enhanced", meaning indoor smart AP with enhanced features. [3] Smart AP OE Series: "OE" stands for "Outdoor Enhanced", meaning outdoor smart AP with enhanced features. [4] Smart AP OW Series: "OW" stands for "Outdoor Wireless", meaning outdoor smart AP/CPE. |
