Planet

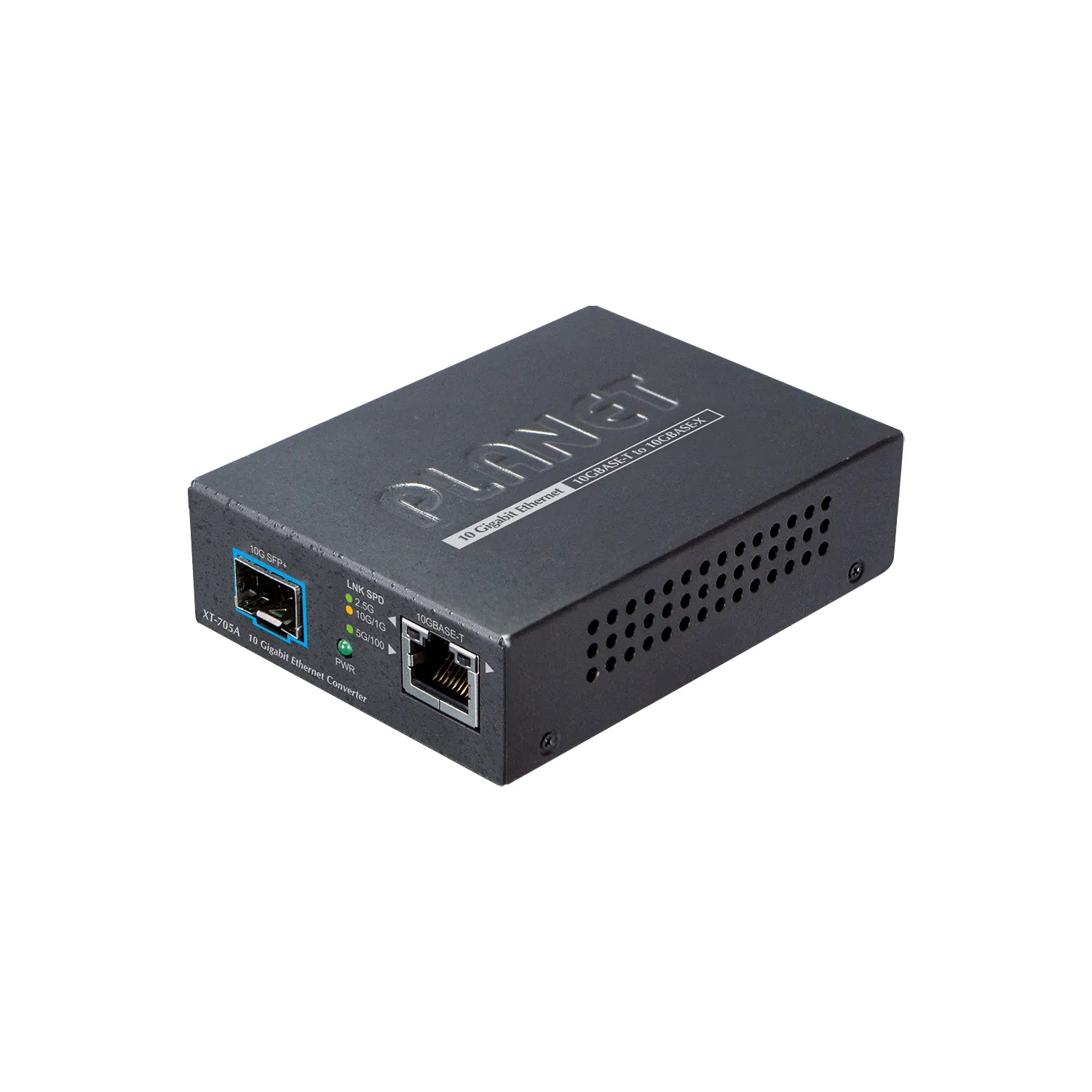

10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

Name: 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
Brand: Planet
SKU: XT-705A

Stock Code: XT-705A

Carries a copper 10G link far over fiber

A media converter with one 10G/5G/2.5G/1G/100BASE-T copper port and one 10GBASE-X SFP+ slot. It moves the 10 Gigabit link on the copper side onto fiber and extends distance across data center, enterprise backbone and campus networks.

10G/5G/2.5G/1G/100BASE-TCopper interface

10GBASE-X SFP+Fiber interface

20 GbpsSwitching Capacity

3.75 WPower consumption

0 to 50 °COperating Temperature

180 gWeight

Key features

300m

Multi-mode fiber distance

50/125 µm or 62.5/125 µm cable carries in-building and campus links.

60km

Single-mode fiber distance

9/125 µm cable drives the 10 Gigabit link between distant buildings.

20Gbps

Non-blocking fabric

The store-and-forward architecture moves packets at wire speed without loss.

3.75W

Low power draw

Consumption stays low at full operation and limits the heat load inside the cabinet.

16K

Jumbo frame

It passes large packets without splitting them and eases storage and backup traffic.

6KV

ESD protection

It protects the Ethernet interface against electrostatic discharge.

IN DAILY USE

Automatic speed matchingThe copper port auto-negotiates at 10G, 5G, 2.5G, 1G and 100M and sets its speed by cable category.

Flexible installationIt runs on its own on a desktop or a wall, and it also slides into the MC-700 and MC-1500 chassis as a module.

Cable selectionA 10G link needs Cat 6A or Cat 7 cable and a 5G link needs Cat 6 or better; the copper side reaches 100 meters.

ApplicationsData center and cloud computing·Enterprise backbone links·Campus networks·Carrier infrastructure

The fiber distance reached depends on the type of SFP+ transceiver fitted and the cable grade used.

Hardware Specifications
Copper Interface	1 x 10G/5G/2.5G/1G/100BASE-T RJ45 Auto-MDI/MDI-X, auto-negotiation
Fiber Optic Interface	1 x 10GBASE-X R SFP+ interface
LED Indicators	System: PWR (Green) 10G/5G/2.5G/1G/100 BASE-T RJ45 Interfaces: 1G/10G LNK (Orange) 5G/2.5G/100M LNK (Green)
Switch Processing Scheme	Store and Forward
ESD Protection	6KV DC
Enclosure	Compact-sized metal case
Installation	Desktop, wall mountable Media converter Chassis installation Optional DIN-rail kit
Dimensions (W × D × H)	94 x 70.3 x 26.2 mm
Weight	180 g (device only)
Power Requirements	5V DC, 2A max.
Power Consumption	3.75 watts / 12.8 BTU per hour max.
Converter Specifications
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Fabric	20Gbps
Address Table	9K entries, automatic source address learning and aging
Jumbo Frame	16K
Network Cables	10G/5G/2.5G/1G/100M BASE-T: 10G — Cat 6A/Cat 7 5G — Cat 6/Cat 6A/Cat 7 1G/2.5G — Cat 5e/Cat 6/Cat 6A/Cat 7 100M — Cat 5/Cat 5e/Cat 6/Cat 6A/Cat 7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125µm or 62.5/125µm multi-mode fiber optic cable, up to 300m 9/125µm single-mode fiber optic cable, up to 60km
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Operating Temperature	0 ~ 50°C
Storage Temperature	-10 ~ 70°C
Operating Humidity	5 ~ 95% relative humidity (non-condensing)
Storage Humidity	5 ~ 95% relative humidity (non-condensing)
Standards Compliance	IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control
