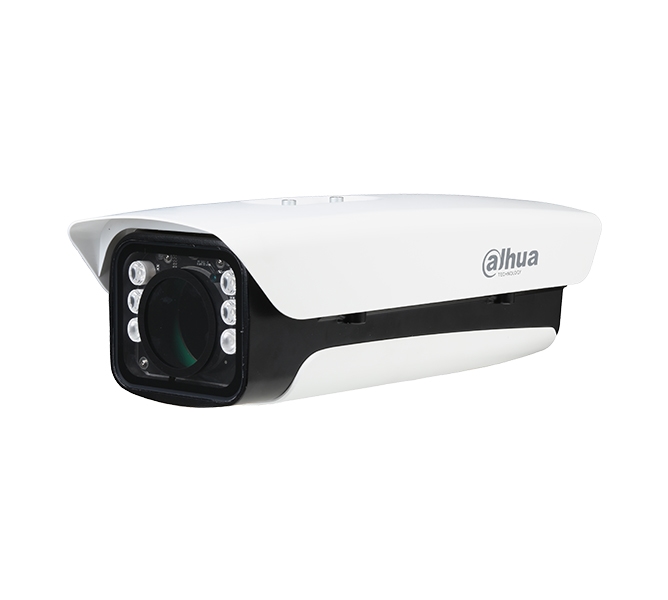

Stock Code: PFH610V
| Protection | |
|---|---|
| Vandal-proof Rating | IK10 |
| Ingress Protection | IP67 |
| Structure | |
| Casing Material | Aluminum (case) and PC (others) |
| Product Dimensions | 404 mm × 164 mm × 132 mm (15.91" × 6.46" × 5.2") (L × W × H) |
| Appearance Color | White top cover and black housing |
| Window Dimensions | Φ60 mm (Φ2.36") |
| Internal Usable Space | 215 mm × 90 mm × 83 mm (8.46" × 3.54" × 3.27") (L × W × H) |
| Net Weight | 2.5 kg (5.51 lb) |
| Gross Weight | 2.4 kg (5.29 lb) |
| Installation | Wall mount, ceiling mount, plane mount, pole mount |
| Screw Thread Type | G1/2 |
| Applicable Model | Please see "Accessory Selection" |
| Packing List | 14" vandal-proof housing × 1, Installation instruction × 1, M20 water joint × 2, 1/4-20 × 8UNC screw × 2, S5.0 wrench × 1 |
| Packaging Dimensions | 437.0 mm × 190.0 mm × 166.0 mm (17.20" × 7.48" × 6.54") (L × W × H) |
| Environment | |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating Humidity | <90% (RH) |
| Storage Temperature | -30°C to +60°C (-22°F to +140°F) |
| Storage Humidity | <90% (RH) |
| Anti-corrosion Level | N/A |
