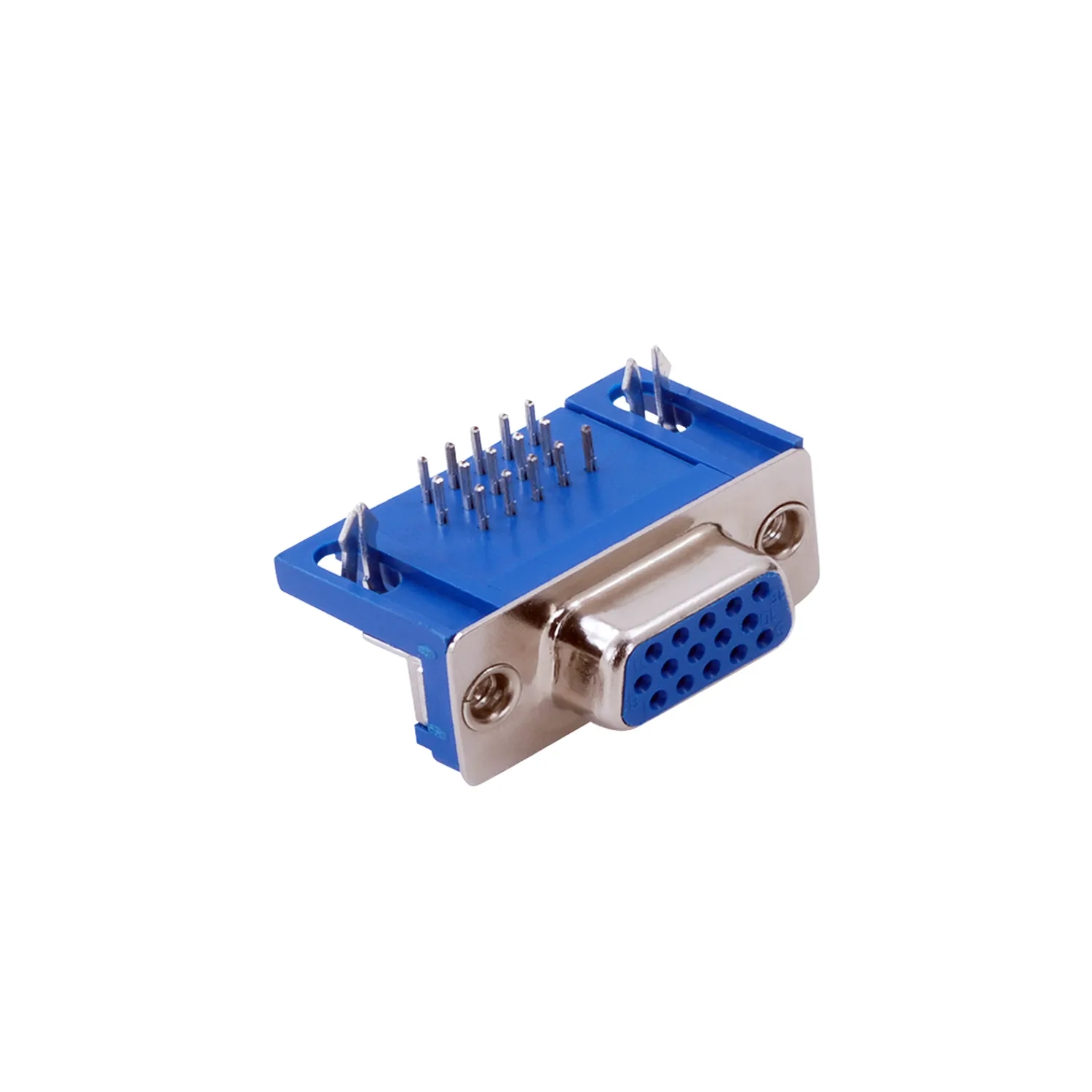

Adds a 15-pin HDS female interface to a printed circuit board.
A female connector of the HDS type within the D-Sub family. Its body bends at 90 degrees and sits on the printed circuit board.
15Pin Count
D-SubConnector Family
FemaleGender
MetalMaterial Type
PCB, 90-degreeMounting Type
Key features
Connector typeThe HDS shell gathers 15 female contacts into a single interface.
GenderIt carries female contacts and forms a female connection point on the board.
MountingThe PCB-type 90-degree body keeps the connector parallel to the board surface.
MaterialA metal shell surrounds the contact area and holds the connector together.
