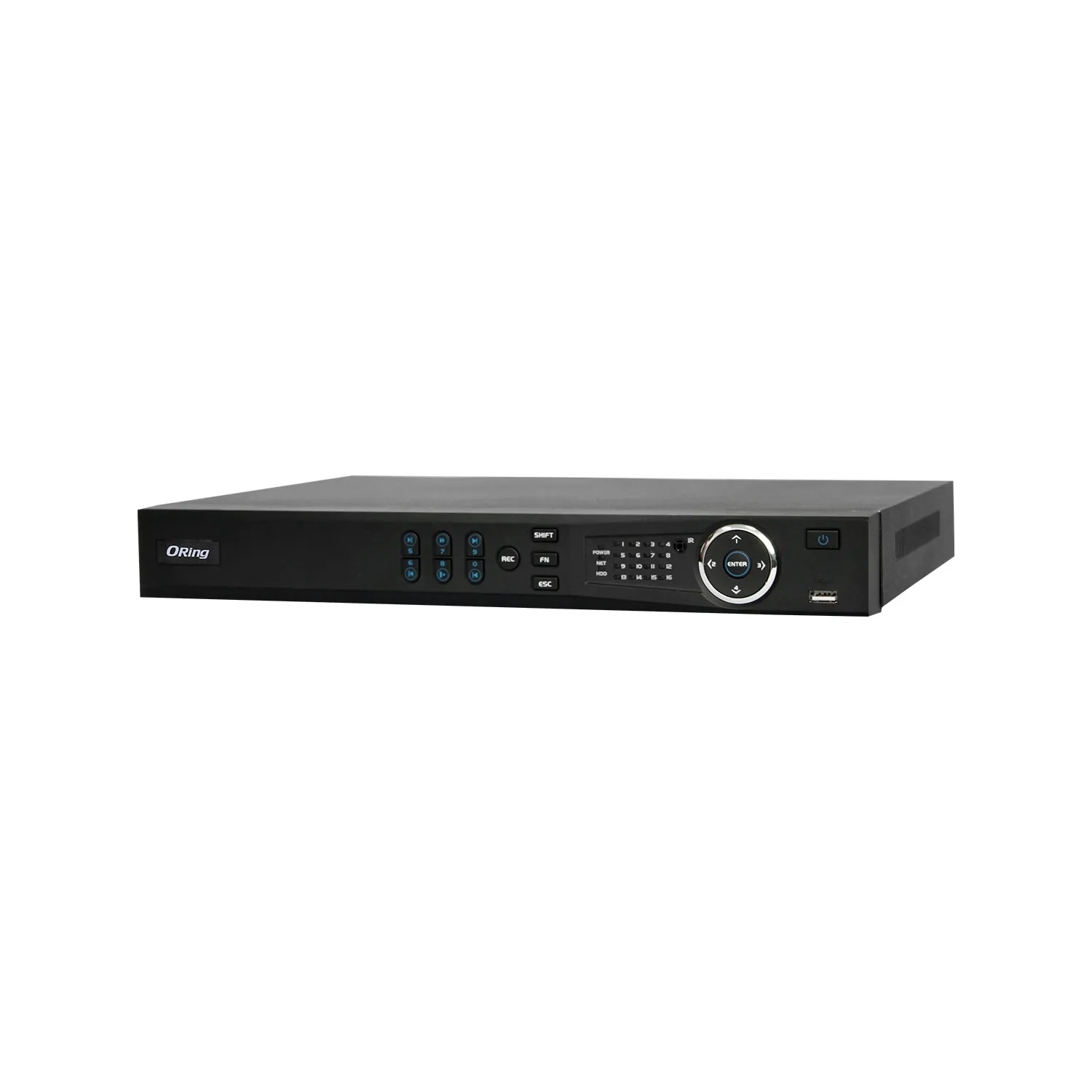

Records high-resolution IP cameras and analyzes the scene

It records 16 IP camera channels with Smart H.265+ and H.264+ compression. The ARM quad-core processor handles 320 Mbps of incoming bandwidth, and preview and playback reach up to 12MP.

16Number of channels

2×8 TBMax. HDD capacity

Smart H.265+/H.265/H.264+/H.264Video compression

HDMI / VGADisplay output

1 Gigabit portEthernet

Key features

Decoding capacityIt decodes 4 channels at 4K and 16 channels at 1080P resolution at the same time.

BandwidthIt reaches 320 Mbps on both the input and the recording side.

StorageThe 2 drive bays take 8 TB per disk, and 1 eSATA port connects external storage.

Alarm interface4 alarm inputs and 2 relay outputs connect external detectors to the system.

Smart videoIt separates tripwire, intrusion, abandoned object, scene change, face recognition, people counting and heat map events.

Expansion functionsIt dewarps fisheye images, supports smart tracking and POS integration, and runs in N+M redundancy mode.

ANPR is optional. The power figure applies with no drive installed: 15.2 W on an AC100V-240V supply.

Technical Specifications

Processor

ARM Quad Core CPU

Video Compression

Smart H.265+/H.265/H.264+/H.264

IP Video Inputs

16 Channel

Max. Input/Recording

320 Mbps/320 Mbps

Max. Decoding

4ch@4K / 16ch@1080P

Display

HDMI, VGA

Max. HDD

2×8TB

RAID

eSATA/Mini SAS

1/-

Audio Input/Output

1/1, 2-way

Alarm Input/Output

4/2

Ethernet

1 Gigabit Port

PoE

6 Ports (IEEE802.3at/af)
130W

USB

1 USB3.0, 1 USB2.0

Power

AC100V~240V
<15.2W (Without HDD)

Smart Video

Tripwire, Intrusion, Abandoned/Missing (Object), Scene Change, Face Recognition, People Counting, Heat Map

Star Features

Fisheye Dewarp, Smart Tracking, POS, ANPR (Optional), N+M (Redundancy)
