ORing

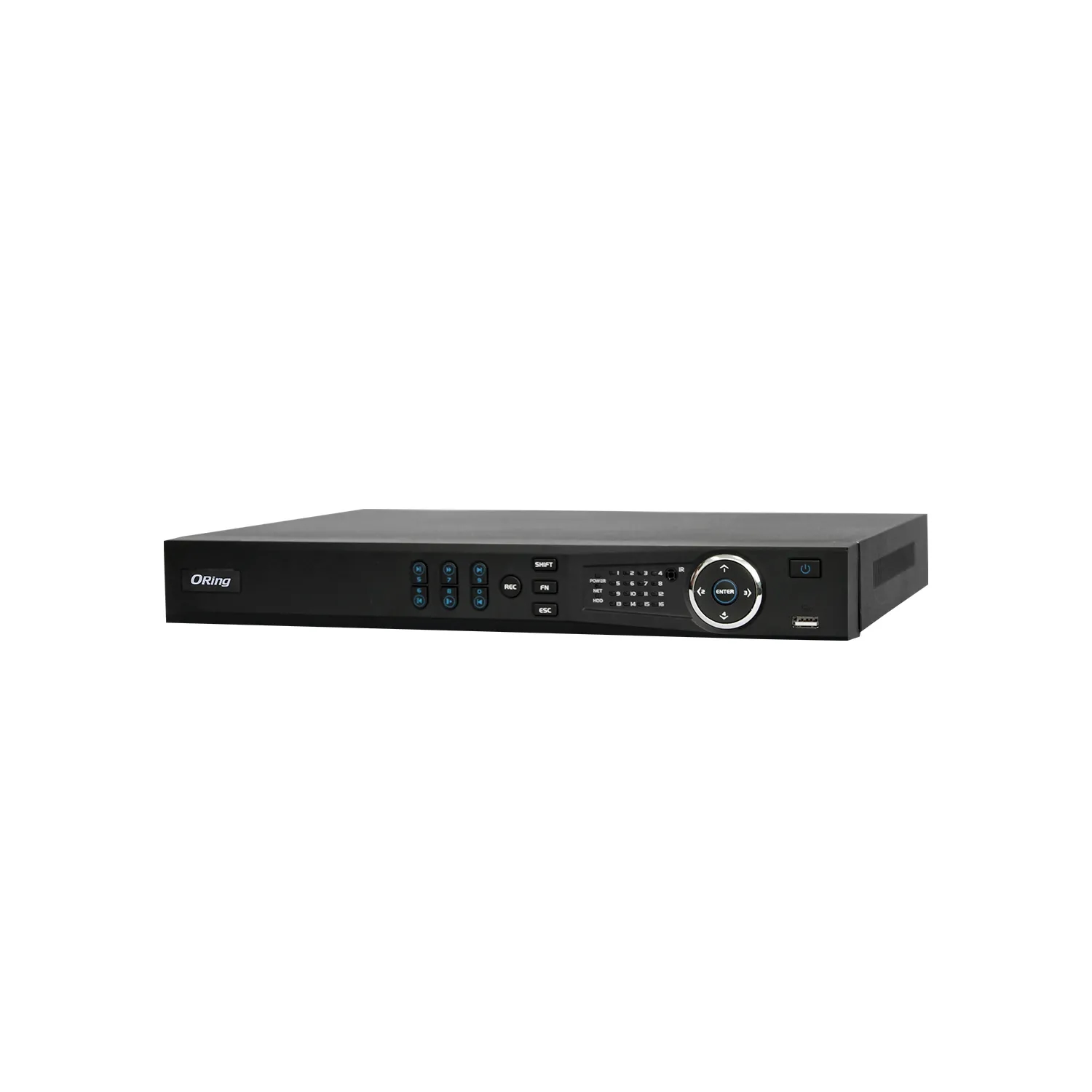

16 Channel 4MP 1U DVR

Name: 16 Channel 4MP 1U DVR
Brand: ORing
SKU: OR-HCVR7216AN-4M

Stock Code: OR-HCVR7216AN-4M

Records the analog camera line at 4MP resolution

It takes HDCVI and CVBS video inputs on up to 16 channels and adds 8 IP cameras on top. Its 1U chassis drives HDMI output up to 4K, so it fits systems built on existing coaxial infrastructure.

16Number of channels

2×8 TBMax. HDD capacity

H.264+/H.264Video compression

3840x2160HDMI display output

1 Gigabit portEthernet

Key features

Recording resolutionIt records 4MP and 1080P on all 16 channels and runs 4MP recording at 15 fps.

IP channel expansionIt adds 8 IP cameras to the 16 analog channels, and IP channels reach up to 8MP.

StorageThe 2 drive bays take 8 TB per disk, and backups go out to a USB device or a DVD writer.

Display outputThe HDMI port delivers up to 3840x2160, while the VGA port feeds a second screen.

Remote accessThe 1 Gigabit Ethernet port carries up to 128 simultaneous connections and supports P2P.

Smart videoIt separates tripwire, intrusion, abandoned object and face detection events.

The power figure applies with no drive installed: up to 15 W on a DC12V/4A supply.

Technical Specifications

Video Compression

H.264+/H.264

Audio Compression

G.711/PCM

Video Standard

HDCVI/CVBS

Max. Recording Resolution

CH01-16: 4MP/1080P

Max. HDCVI Record Rate

4MP@15fps
1080P@15fps

CVBS Input

16CH, 1.0Vp-p, 75Ω

IP Camera Input

16+8
Up to 8MP

Max. IP Input/Recording

Audio Input/Output

1/1, 2-way

Max. HDD

2×8TB

Display

1 HDMI (up to 3840x2160), 1 VGA

eSATA

USB

1 USB3.0, 1 USB2.0

DVD Burner

USB

Alarm Input/Output

Ethernet

1 Gigabit port

Remote User Access

128

Dimensions

375×287×53mm
(14.8"×11.3"×2.1")

Power

DC12V/4A,
≤15W (without HDD)

Smart Video

Tripwire, Intrusion,
Abandoned/Missing Object,
Face Detection

Star Features

P2P, Coaxial Audio/Alarm/
Upgrade, 2D/3DNR

16 Channel 4MP 1U DVR

Stock Code: OR-HCVR7216AN-4M

Records the analog camera line at 4MP resolution

It takes HDCVI and CVBS video inputs on up to 16 channels and adds 8 IP cameras on top. Its 1U chassis drives HDMI output up to 4K, so it fits systems built on existing coaxial infrastructure.

16Number of channels

2×8 TBMax. HDD capacity

H.264+/H.264Video compression

3840x2160HDMI display output

1 Gigabit portEthernet

Key features

Recording resolutionIt records 4MP and 1080P on all 16 channels and runs 4MP recording at 15 fps.

IP channel expansionIt adds 8 IP cameras to the 16 analog channels, and IP channels reach up to 8MP.

StorageThe 2 drive bays take 8 TB per disk, and backups go out to a USB device or a DVD writer.

Display outputThe HDMI port delivers up to 3840x2160, while the VGA port feeds a second screen.

Remote accessThe 1 Gigabit Ethernet port carries up to 128 simultaneous connections and supports P2P.

Smart videoIt separates tripwire, intrusion, abandoned object and face detection events.

The power figure applies with no drive installed: up to 15 W on a DC12V/4A supply.

Technical Specifications

Video Compression

H.264+/H.264

Audio Compression

G.711/PCM

Video Standard

HDCVI/CVBS

Max. Recording Resolution

CH01-16: 4MP/1080P

Max. HDCVI Record Rate

4MP@15fps
1080P@15fps

CVBS Input

16CH, 1.0Vp-p, 75Ω

IP Camera Input

16+8
Up to 8MP

Max. IP Input/Recording

Audio Input/Output

1/1, 2-way

Max. HDD

2×8TB

Display

1 HDMI (up to 3840x2160), 1 VGA

eSATA

USB

1 USB3.0, 1 USB2.0

DVD Burner

USB

Alarm Input/Output

Ethernet

1 Gigabit port

Remote User Access

128

Dimensions

375×287×53mm
(14.8"×11.3"×2.1")

Power

DC12V/4A,
≤15W (without HDD)

Smart Video

Tripwire, Intrusion,
Abandoned/Missing Object,
Face Detection

Star Features

P2P, Coaxial Audio/Alarm/
Upgrade, 2D/3DNR

16 Channel 4MP 1U DVR

Similar Products

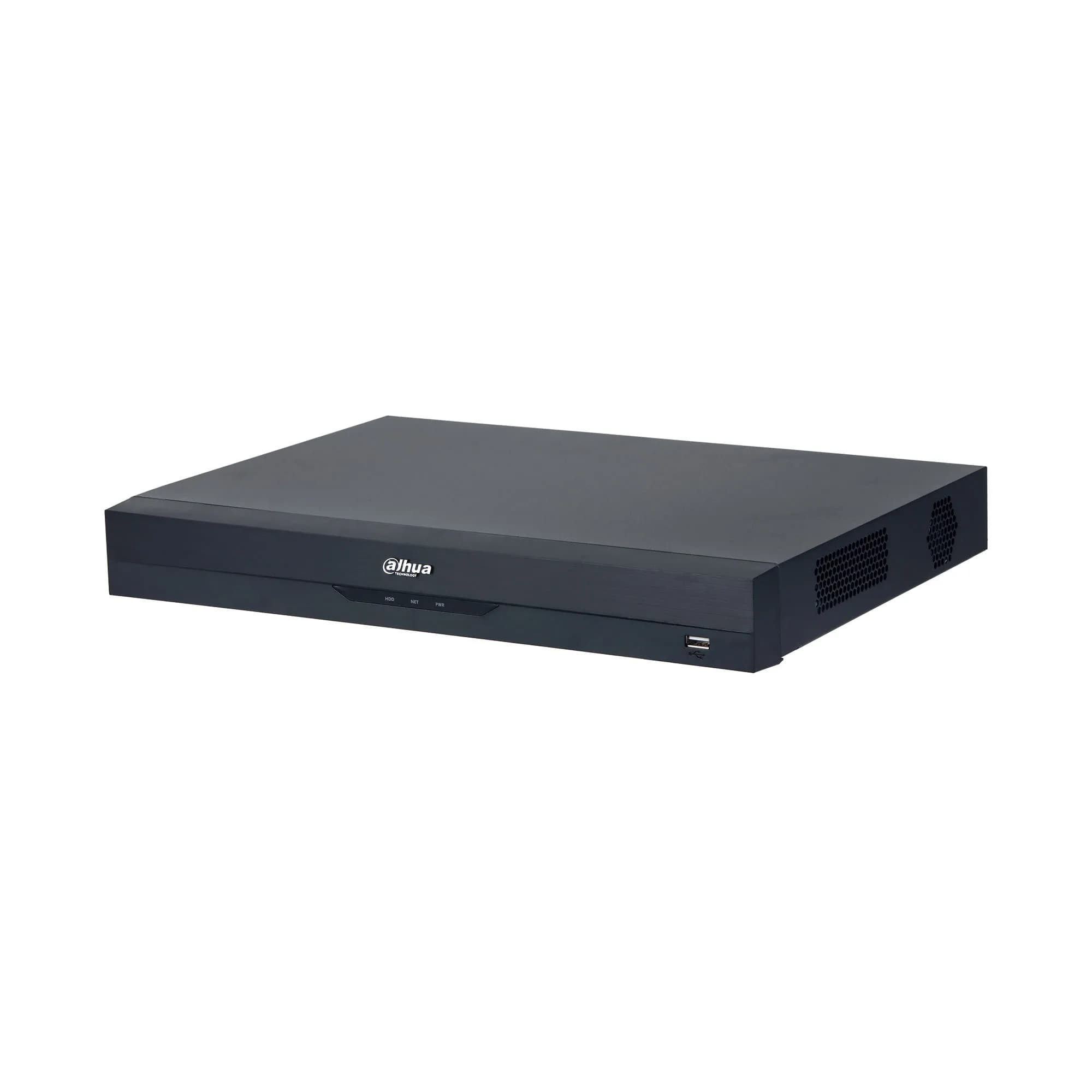

17 Channel Penta-brid 1080P DVR Digital Video Recorder

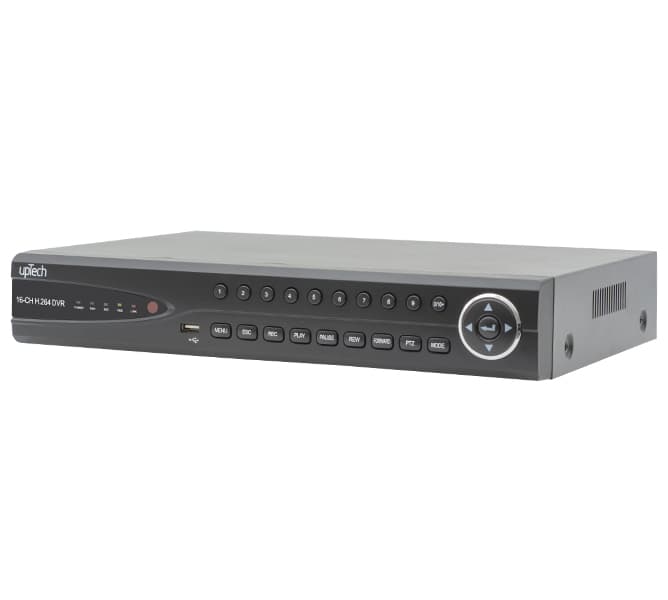

16 Channel 1080P XVR - 2HDD
